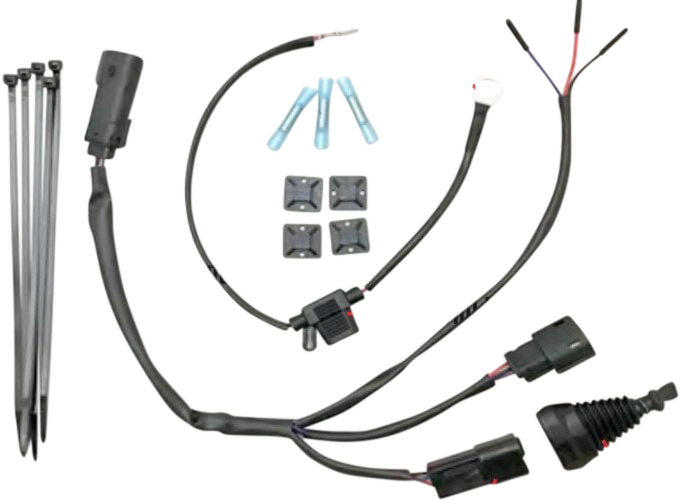

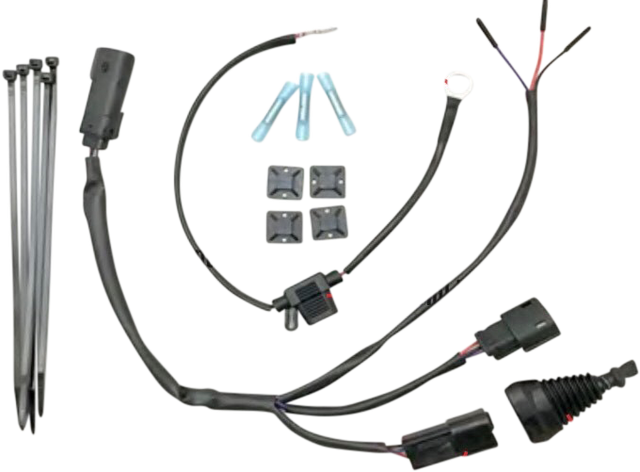

Ultracool 56-7263 SMB-Y128 ACCESSORIE CONNECTOR ALL M8 MODELS

Features

• 56-7260=1994 and newer Harley-Davidson Touring and Trike models.
• Allows two switched 12 VDC and ground connections to accessories.
• 1994-2013 Models: The two accessories can then be turned ON and OFF simultaneously with the accessory switch.
• Follow UltraCool Oil Cooler instructions to not allow the accessory switch to control power to the cooler which is desirable for most applications.
• 2014 and newer Models: The two accessories can then be operated simultaneously with the ignition switch in the ON or ACC position.
• 56-7261 = 2014-2016 Harley-Davidson Touring and Trike models.
• This harness provides battery power, ignition/accessory power and ground connection from the eight-way Molex P&A accessory connector [4A] to accessories connecting through a 4 pin Deutsch connector.
• 56-7262 = `14 and newer Harley-Davidson Sportster, `12-17 Dyna, and `11-17 Softail Models. This harness is designed to provide battery
• power, ignition/accessory power, and ground connection from the 6 pin Digital Technician connector [91A].
• The power from this harness is fused at 15 amps through the vehicle harness.
• 56-7263 = 2017 and newer Harley-Davidson Touring and Trike models and 2018 and newer Harley-Davidson Softail models. This harness provides
• battery power, ignition/accessory power and ground connection from the three pin Molex P&A accessory connector [325B] to accessories
• connecting through a 4 pin Deutsch connector.

Fitment Disclosure
