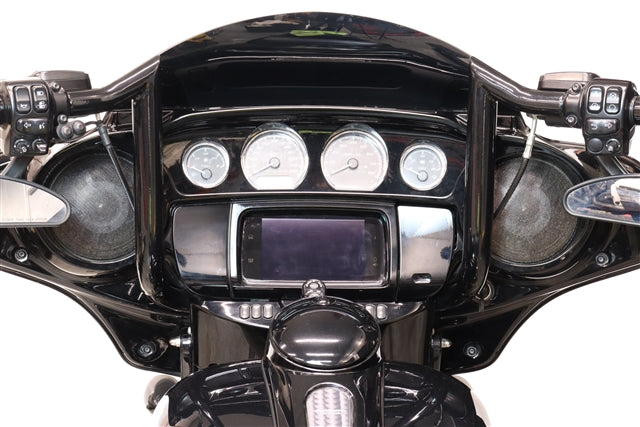

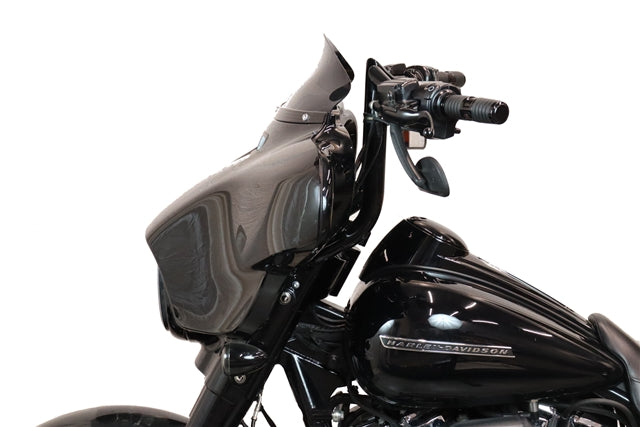

Tab Performance Folsom Prison Handlebars Street Electra Glide Tri-Glide

Harley-Davidson Touring Folsom Prison Series Handlebars

• The Widow's Peak design with a black finish is just the beginning!
• The width of the bars has been reduced to provide less strain on your shoulders and back. Also makes cornering and slow manuevers less of a stretch!
• The Interior has been smoothed out to lessen the likelihood of wire snags and damage.
• The 1.5" fatties provide plenty of space for all those wires.
• We allocate 5% of our sales to support veteran organizations that are committed to transforming the lives of veterans.
• Will NOT Fit 2024-Up Street Glide Models

---

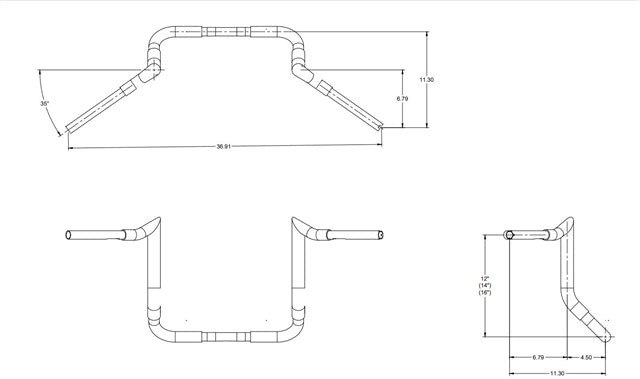

FLH Street Glide Specs:

Height	Width	Pullback Base	Pullback Rise	Sweep	14-20 Switch Wires	21-Up Switch Wires	14-20 Clutch/Brake	21-Up Clutch/Brake
12"	37"	11.25"	6.75"	35°	NHCX-CB14	Included in clutch/brake kit	Stock	FB Kit 109012
14"	37"	11.25"	6.75"	35°	Included in clutch/brake kit	Included in clutch/brake kit	FB Kit 109214*	FB Kit 109014

*FB Kit 109214 for 14-20 Street/Electra/Ultra Glides models must be purchased directly from Fat Baggers.

---

Height

• The distance between the centerline of the base bar to the centerline of the grip

*Some manufacturers designate the height of the bar from the highest point of the peek. Ours is measured to the grip.
Width

• The distance from the end of one grip to the end of the other.

Pullback from Base

• The distance between the centerline of the base bar to the end of the grip.

Pullback from Rise

• The distance between the centerline of the riser bar to the end of the grip.

*The base bar and the riser bar on the Road Glide handlebars are on the same plane so the pullback measurements are the same.
Sweep

• The degree of angle between the base bar and the grip.

Part Nos:
125-2120
125-2140

TAB Product Page Code: SG-FOLSOM-BARS

Available Options

Handlebar Height	Model Year	Part Number
12"	1995-2024 Electra/Ultra Glide 1995-2023 Street Glide	125-2120
12"	2009-Up Tri Glide Ultra	125-2120
14"	1995-2024 Electra/Ultra Glide 1995-2023 Street Glide	125-2140
14"	2009-Up Tri Glide Ultra	125-2140
