S&S Cycle

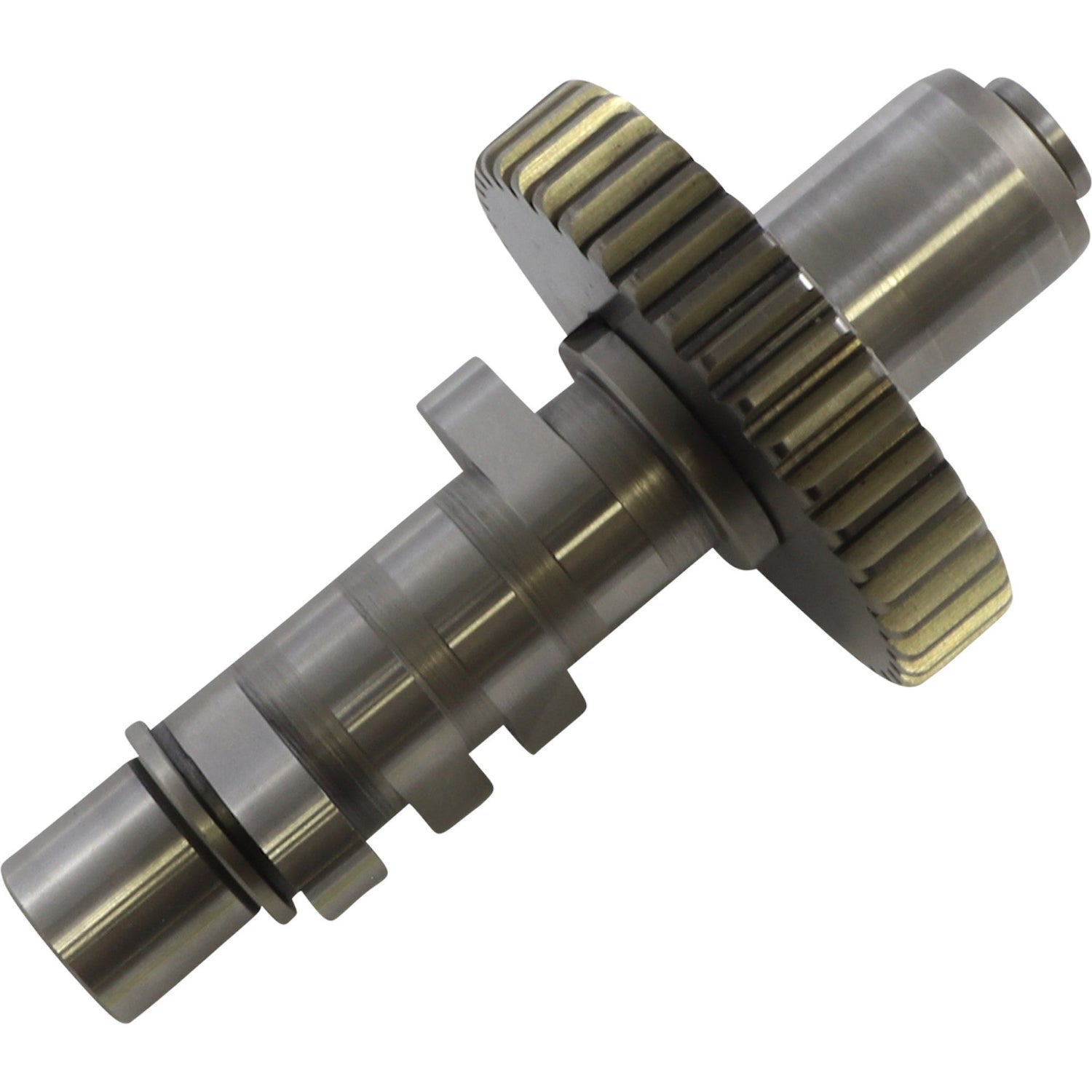

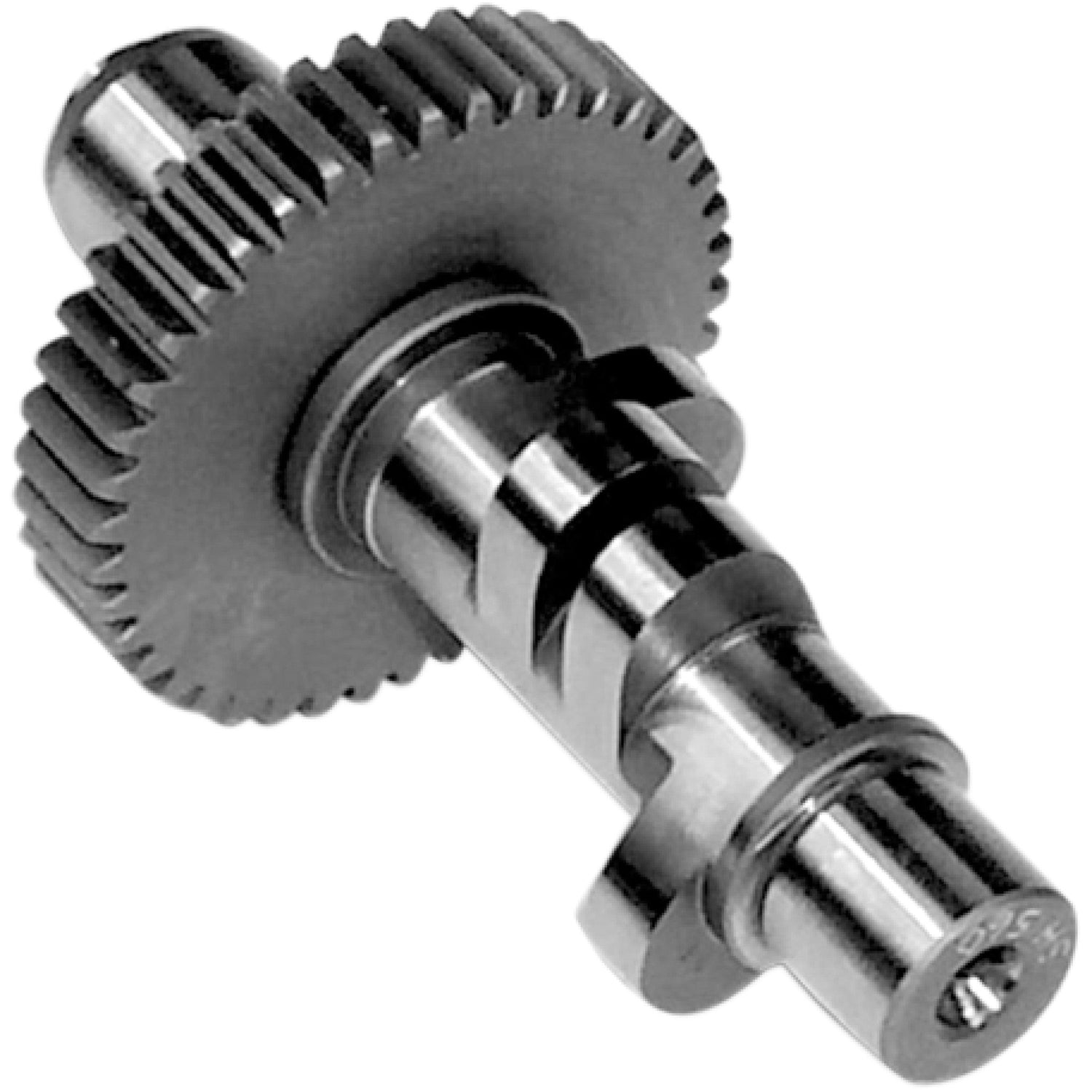

S&S Cycle 560S Camshaft 560S Big Twin - 33-5060 For Harley Touring / Super / Low 1970-1977
MPN:
33-5060
SKU:
DS199190
1
of
2
Loading...
S&S Cycle
S&S Cycle 560S Camshaft 560S Big Twin - 33-5060 For Harley Touring / Super / Low 1970-1977
MPN:
33-5060
SKU:
DS199190
SKU:
DS199190
S&S cams are tested on the dyno, street and racetrack before being offered to the public
With hundreds of test hours on them, you know that you are getting the best cam S&S can produce
Recommend solid or performance aftermarket hydraulic lifters, stock hydraulic tappets are not recommended
Not recommended for stock displacement or lower compression engines
For 88" to 103" engines between 9:1 to 10:1 compression ratio
Best response from 3500 to 6000 rpm
Spring spacing required
Made in the USA
Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.
Specs
Product Name
Camshaft
Application
Intake / Exhaust
Grind
560S
Intake Lift at TDC
0.168"
Intake Open
20°
Intake Lift
0.560"
Intake Duration
255°
Intake Close
55°
Exhaust Lift
0.560"
Exhaust Duration
260°
Exhaust Lift at TDC
0.164"
Exhaust Open
60°
Exhaust Close
20°
Units
Each
Riding Style
Street
1970-1977
Harley-Davidson
Electra Glide FL
1970-1977
Harley-Davidson
Electra Glide FLH
1971-1977
Harley-Davidson
Super Glide FX
1974-1977
Harley-Davidson
Super Glide FXE
1977
Harley-Davidson
Low Rider FXS
Fitment DisclosureThis quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Regular price
$255.95
Unit price
Shipping calculated at checkout.
Product Details
Features
- S&S cams are tested on the dyno, street and racetrack before being offered to the public
- With hundreds of test hours on them, you know that you are getting the best cam S&S can produce
- Recommend solid or performance aftermarket hydraulic lifters, stock hydraulic tappets are not recommended
- Not recommended for stock displacement or lower compression engines
- For 88" to 103" engines between 9:1 to 10:1 compression ratio
- Best response from 3500 to 6000 rpm
- Spring spacing required
- Made in the USA
- Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.
Specs
| Product Name | Camshaft |
| Application | Intake / Exhaust |
| Grind | 560S |
| Intake Lift at TDC | 0.168" |
| Intake Open | 20° |
| Intake Lift | 0.560" |
| Intake Duration | 255° |
| Intake Close | 55° |
| Exhaust Lift | 0.560" |
| Exhaust Duration | 260° |
| Exhaust Lift at TDC | 0.164" |
| Exhaust Open | 60° |
| Exhaust Close | 20° |
| Units | Each |
| Riding Style | Street |
| 1970-1977 | Harley-Davidson | Electra Glide FL |
| 1970-1977 | Harley-Davidson | Electra Glide FLH |
| 1971-1977 | Harley-Davidson | Super Glide FX |
| 1974-1977 | Harley-Davidson | Super Glide FXE |
| 1977 | Harley-Davidson | Low Rider FXS |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Product Description
Features
- S&S cams are tested on the dyno, street and racetrack before being offered to the public
- With hundreds of test hours on them, you know that you are getting the best cam S&S can produce
- Recommend solid or performance aftermarket hydraulic lifters, stock hydraulic tappets are not recommended
- Not recommended for stock displacement or lower compression engines
- For 88" to 103" engines between 9:1 to 10:1 compression ratio
- Best response from 3500 to 6000 rpm
- Spring spacing required
- Made in the USA
- Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.
Specs
| Product Name | Camshaft |
| Application | Intake / Exhaust |
| Grind | 560S |
| Intake Lift at TDC | 0.168" |
| Intake Open | 20° |
| Intake Lift | 0.560" |
| Intake Duration | 255° |
| Intake Close | 55° |
| Exhaust Lift | 0.560" |
| Exhaust Duration | 260° |
| Exhaust Lift at TDC | 0.164" |
| Exhaust Open | 60° |
| Exhaust Close | 20° |
| Units | Each |
| Riding Style | Street |
| 1970-1977 | Harley-Davidson | Electra Glide FL |
| 1970-1977 | Harley-Davidson | Electra Glide FLH |
| 1971-1977 | Harley-Davidson | Super Glide FX |
| 1974-1977 | Harley-Davidson | Super Glide FXE |
| 1977 | Harley-Davidson | Low Rider FXS |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| DS199190 | 33-5060 | In Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
