SKU:
DS199188

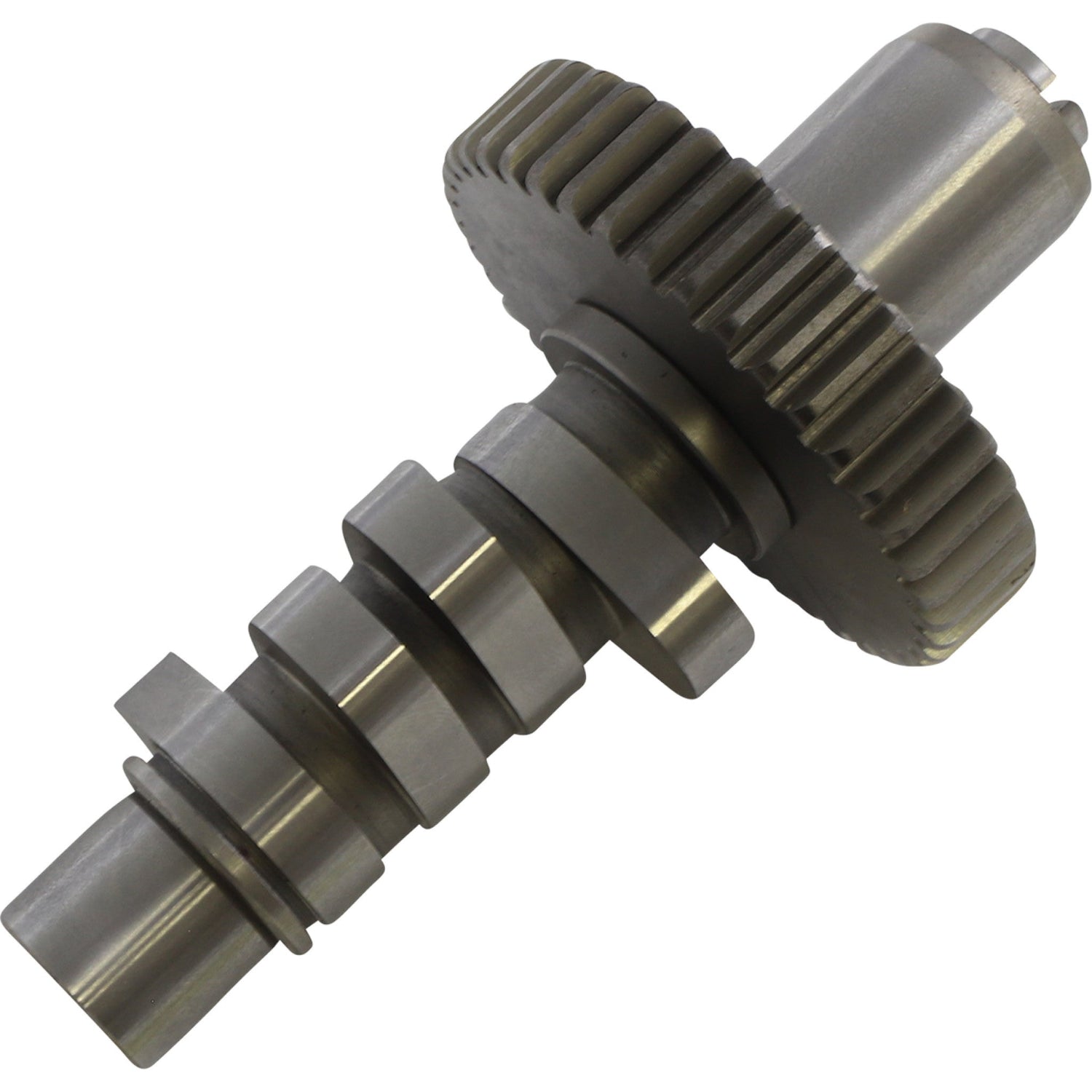

S&S cams are tested on the dyno, street and racetrack before being offered to the public
With hundreds of test hours on them, you know that you are getting the best cam S&S can produce
For 84" to 93" motors, not more than 9:1
Best response occurs in the mid range from 2500 to 5000 rpm
Recommend high-performance hydraulic or solid lifters
Made in the USA
Spring spacing is required
Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.
Specs
Product Name
Cam
Application
Exhaust / Intake
Grind
514 Series
Intake Lift at TDC
0.177" Panhead, 0.169" Shovelhead
Intake Open
23°
Intake Lift
0.540" Panhead, 0.514" Shovelhead
Intake Duration
246°
Intake Close
43°
Exhaust Lift
0.540" Panhead, 0.514" Shovelhead
Exhaust Duration
246°
Exhaust Lift at TDC
0.177" Panhead, 0.169" Shovelhead
Exhaust Open
43°
Exhaust Close
23°
Units
Each
Riding Style
Street
1978-1980
Harley-Davidson
Electra Glide FL
1978-1984
Harley-Davidson
Electra Glide FLH
1978-1982
Harley-Davidson
Low Rider FXS
1978
Harley-Davidson
Super Glide FX
1978,1981-1984
Harley-Davidson
Super Glide FXE
1979-1981
Harley-Davidson
1200 Fat Bob FXEF
1979
Harley-Davidson
1200 Low Rider FXS
1979-1980
Harley-Davidson
1200 Super Glide FXE
1979-1980
Harley-Davidson
Super Glide 80 FXE
1980
Harley-Davidson
1200 Electra Glide FLH
1980-1982
Harley-Davidson
Electra Glide Sport FLHS
1980-1982
Harley-Davidson
Sturgis FXB
1980-1983
Harley-Davidson
Tour Glide Classic FLTC
1980-1983
Harley-Davidson
Tour Glide FLT
1980-1984
Harley-Davidson
Wide Glide FXWG
1981-1982
Harley-Davidson
Electra Glide Classic FLH
1981
Harley-Davidson
Electra Glide Heritage FLH
1982-1983
Harley-Davidson
Super Glide II FXR
1982-1983
Harley-Davidson
Super Glide II FXRS
1983
Harley-Davidson
Disc Glide FXDG
1983
Harley-Davidson
Electra Glide Classic FLHTC
1983
Harley-Davidson
Electra Glide Standard FLHT
1983-1984
Harley-Davidson
Low Rider FXSB
1983
Harley-Davidson
Sport Glide FXRT
1984
Harley-Davidson
Electra Glide Special FLHX
Fitment DisclosureThis quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Regular price
$254.95
Unit price
Shipping calculated at checkout.
Product Details
Features
- S&S cams are tested on the dyno, street and racetrack before being offered to the public
- With hundreds of test hours on them, you know that you are getting the best cam S&S can produce
- For 84" to 93" motors, not more than 9:1
- Best response occurs in the mid range from 2500 to 5000 rpm
- Recommend high-performance hydraulic or solid lifters
- Made in the USA
- Spring spacing is required
- Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.
Specs
| Product Name | Cam |
| Application | Exhaust / Intake |
| Grind | 514 Series |
| Intake Lift at TDC | 0.177" Panhead, 0.169" Shovelhead |
| Intake Open | 23° |
| Intake Lift | 0.540" Panhead, 0.514" Shovelhead |
| Intake Duration | 246° |
| Intake Close | 43° |
| Exhaust Lift | 0.540" Panhead, 0.514" Shovelhead |
| Exhaust Duration | 246° |
| Exhaust Lift at TDC | 0.177" Panhead, 0.169" Shovelhead |
| Exhaust Open | 43° |
| Exhaust Close | 23° |
| Units | Each |
| Riding Style | Street |
| 1978-1980 | Harley-Davidson | Electra Glide FL |
| 1978-1984 | Harley-Davidson | Electra Glide FLH |
| 1978-1982 | Harley-Davidson | Low Rider FXS |
| 1978 | Harley-Davidson | Super Glide FX |
| 1978,1981-1984 | Harley-Davidson | Super Glide FXE |
| 1979-1981 | Harley-Davidson | 1200 Fat Bob FXEF |
| 1979 | Harley-Davidson | 1200 Low Rider FXS |
| 1979-1980 | Harley-Davidson | 1200 Super Glide FXE |
| 1979-1980 | Harley-Davidson | Super Glide 80 FXE |
| 1980 | Harley-Davidson | 1200 Electra Glide FLH |
| 1980-1982 | Harley-Davidson | Electra Glide Sport FLHS |
| 1980-1982 | Harley-Davidson | Sturgis FXB |
| 1980-1983 | Harley-Davidson | Tour Glide Classic FLTC |
| 1980-1983 | Harley-Davidson | Tour Glide FLT |
| 1980-1984 | Harley-Davidson | Wide Glide FXWG |
| 1981-1982 | Harley-Davidson | Electra Glide Classic FLH |
| 1981 | Harley-Davidson | Electra Glide Heritage FLH |
| 1982-1983 | Harley-Davidson | Super Glide II FXR |
| 1982-1983 | Harley-Davidson | Super Glide II FXRS |
| 1983 | Harley-Davidson | Disc Glide FXDG |
| 1983 | Harley-Davidson | Electra Glide Classic FLHTC |
| 1983 | Harley-Davidson | Electra Glide Standard FLHT |
| 1983-1984 | Harley-Davidson | Low Rider FXSB |
| 1983 | Harley-Davidson | Sport Glide FXRT |
| 1984 | Harley-Davidson | Electra Glide Special FLHX |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Product Description
Features
- S&S cams are tested on the dyno, street and racetrack before being offered to the public
- With hundreds of test hours on them, you know that you are getting the best cam S&S can produce
- For 84" to 93" motors, not more than 9:1
- Best response occurs in the mid range from 2500 to 5000 rpm
- Recommend high-performance hydraulic or solid lifters
- Made in the USA
- Spring spacing is required
- Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.
Specs
| Product Name | Cam |
| Application | Exhaust / Intake |
| Grind | 514 Series |
| Intake Lift at TDC | 0.177" Panhead, 0.169" Shovelhead |
| Intake Open | 23° |
| Intake Lift | 0.540" Panhead, 0.514" Shovelhead |
| Intake Duration | 246° |
| Intake Close | 43° |
| Exhaust Lift | 0.540" Panhead, 0.514" Shovelhead |
| Exhaust Duration | 246° |
| Exhaust Lift at TDC | 0.177" Panhead, 0.169" Shovelhead |
| Exhaust Open | 43° |
| Exhaust Close | 23° |
| Units | Each |
| Riding Style | Street |
| 1978-1980 | Harley-Davidson | Electra Glide FL |
| 1978-1984 | Harley-Davidson | Electra Glide FLH |
| 1978-1982 | Harley-Davidson | Low Rider FXS |
| 1978 | Harley-Davidson | Super Glide FX |
| 1978,1981-1984 | Harley-Davidson | Super Glide FXE |
| 1979-1981 | Harley-Davidson | 1200 Fat Bob FXEF |
| 1979 | Harley-Davidson | 1200 Low Rider FXS |
| 1979-1980 | Harley-Davidson | 1200 Super Glide FXE |
| 1979-1980 | Harley-Davidson | Super Glide 80 FXE |
| 1980 | Harley-Davidson | 1200 Electra Glide FLH |
| 1980-1982 | Harley-Davidson | Electra Glide Sport FLHS |
| 1980-1982 | Harley-Davidson | Sturgis FXB |
| 1980-1983 | Harley-Davidson | Tour Glide Classic FLTC |
| 1980-1983 | Harley-Davidson | Tour Glide FLT |
| 1980-1984 | Harley-Davidson | Wide Glide FXWG |
| 1981-1982 | Harley-Davidson | Electra Glide Classic FLH |
| 1981 | Harley-Davidson | Electra Glide Heritage FLH |
| 1982-1983 | Harley-Davidson | Super Glide II FXR |
| 1982-1983 | Harley-Davidson | Super Glide II FXRS |
| 1983 | Harley-Davidson | Disc Glide FXDG |
| 1983 | Harley-Davidson | Electra Glide Classic FLHTC |
| 1983 | Harley-Davidson | Electra Glide Standard FLHT |
| 1983-1984 | Harley-Davidson | Low Rider FXSB |
| 1983 | Harley-Davidson | Sport Glide FXRT |
| 1984 | Harley-Davidson | Electra Glide Special FLHX |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| DS199188 | 33-5052 | In Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Customer Reviews
S&s Cycle Cam - 33-5052 For Harley Motorcycles 1978-1984
