SKU:
0932-0188
Note:
Pinion shaft gears included in this kit fit stock 84-89 pinion shafts and S&S
pinion shafts for '84-'99.
Will not fit stock '90-'99 straight pinion shafts.
Features
HVHP oil pumps have a new gear tooth profile with fewer but larger teeth that provides an increased oil volume for both supply and return-side of the pump
Supply-side gears are 9% wider than stock
Return gears are 28% wider than stock to ensure that the additional volume of oil supplied to the engine is scavenged and returned to the oil tank, reducing the amount of oil in the crankcase breather

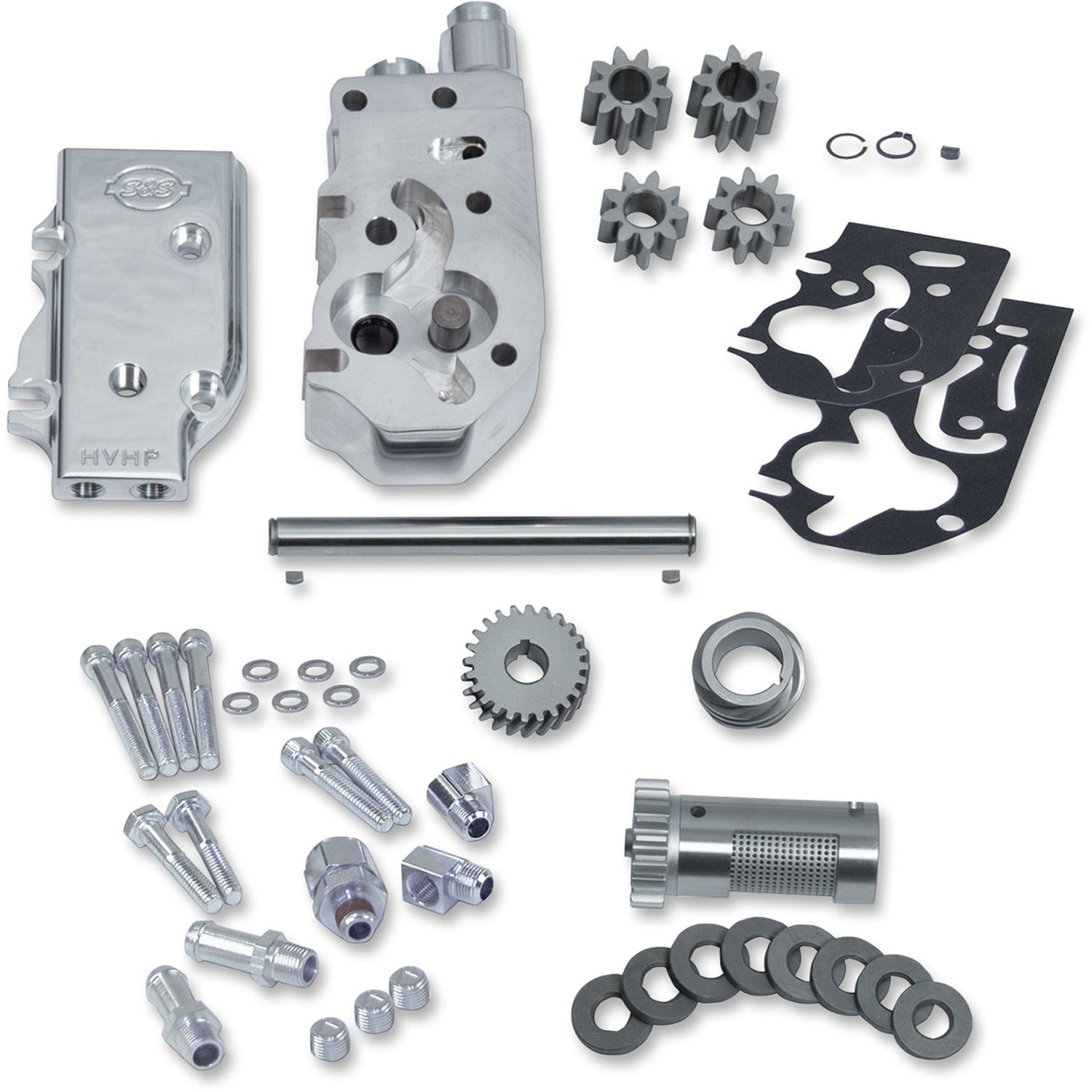

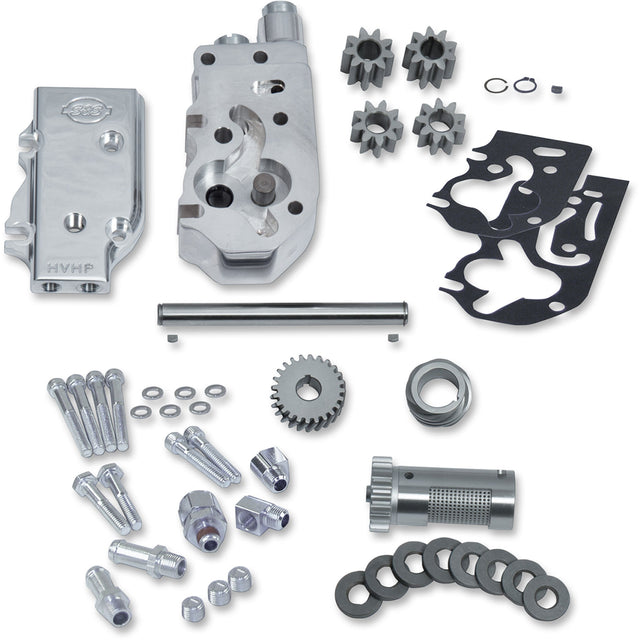

Kit includes supply gears, return gears, drive shaft, drive shaft keys, drive shaft snap rings, check ball, check ball spring, pressure valve spring, cover screws with O-rings, miscellaneous hose fittings, plugs, screws, gaskets, mounting hardware, oil pump drive shaft gear, oil pump pinion shaft gear, S&S breather gear and shim kit and instructions
Universal cover has a number of oil feed and return options allowing maximum flexibility for custom installations
Oil pumps only include supply gears, return gears, drive shaft keys, drive shaft snap rings, check ball, check ball spring, pressure valve spring, cover screws with O-rings, miscellaneous hose fittings, plugs, screws, gaskets, mounting hardware and instructions
Made in USA
Specs
Product Name
Pump
Type
Oil
Style
Universal Cover
Color/Finish
Polished
Material
Billet
Flow Rate
High Volume
Units
Kit
Riding Style
Street
Regular price
$715.95
Unit price
Shipping calculated at checkout.
Product Details
Note:- Pinion shaft gears included in this kit fit stock 84-89 pinion shafts and S&S
- pinion shafts for '84-'99.
- Will not fit stock '90-'99 straight pinion shafts.
Features
- HVHP oil pumps have a new gear tooth profile with fewer but larger teeth that provides an increased oil volume for both supply and return-side of the pump
- Supply-side gears are 9% wider than stock
- Return gears are 28% wider than stock to ensure that the additional volume of oil supplied to the engine is scavenged and returned to the oil tank, reducing the amount of oil in the crankcase breather
- Kit includes supply gears, return gears, drive shaft, drive shaft keys, drive shaft snap rings, check ball, check ball spring, pressure valve spring, cover screws with O-rings, miscellaneous hose fittings, plugs, screws, gaskets, mounting hardware, oil pump drive shaft gear, oil pump pinion shaft gear, S&S breather gear and shim kit and instructions
- Universal cover has a number of oil feed and return options allowing maximum flexibility for custom installations
- Oil pumps only include supply gears, return gears, drive shaft keys, drive shaft snap rings, check ball, check ball spring, pressure valve spring, cover screws with O-rings, miscellaneous hose fittings, plugs, screws, gaskets, mounting hardware and instructions
- Made in USA
Specs
| Product Name | Pump |
| Type | Oil |
| Style | Universal Cover |
| Color/Finish | Polished |
| Material | Billet |
| Flow Rate | High Volume |
| Units | Kit |
| Riding Style | Street |
Product Description
Note:
- Pinion shaft gears included in this kit fit stock 84-89 pinion shafts and S&S
- pinion shafts for '84-'99.
- Will not fit stock '90-'99 straight pinion shafts.
Features
- HVHP oil pumps have a new gear tooth profile with fewer but larger teeth that provides an increased oil volume for both supply and return-side of the pump
- Supply-side gears are 9% wider than stock
- Return gears are 28% wider than stock to ensure that the additional volume of oil supplied to the engine is scavenged and returned to the oil tank, reducing the amount of oil in the crankcase breather
- Kit includes supply gears, return gears, drive shaft, drive shaft keys, drive shaft snap rings, check ball, check ball spring, pressure valve spring, cover screws with O-rings, miscellaneous hose fittings, plugs, screws, gaskets, mounting hardware, oil pump drive shaft gear, oil pump pinion shaft gear, S&S breather gear and shim kit and instructions
- Universal cover has a number of oil feed and return options allowing maximum flexibility for custom installations
- Oil pumps only include supply gears, return gears, drive shaft keys, drive shaft snap rings, check ball, check ball spring, pressure valve spring, cover screws with O-rings, miscellaneous hose fittings, plugs, screws, gaskets, mounting hardware and instructions
- Made in USA
Specs
| Product Name | Pump |
| Type | Oil |
| Style | Universal Cover |
| Color/Finish | Polished |
| Material | Billet |
| Flow Rate | High Volume |
| Units | Kit |
| Riding Style | Street |
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0932-0188 | 31-6307 | In Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
