S&S Cycle

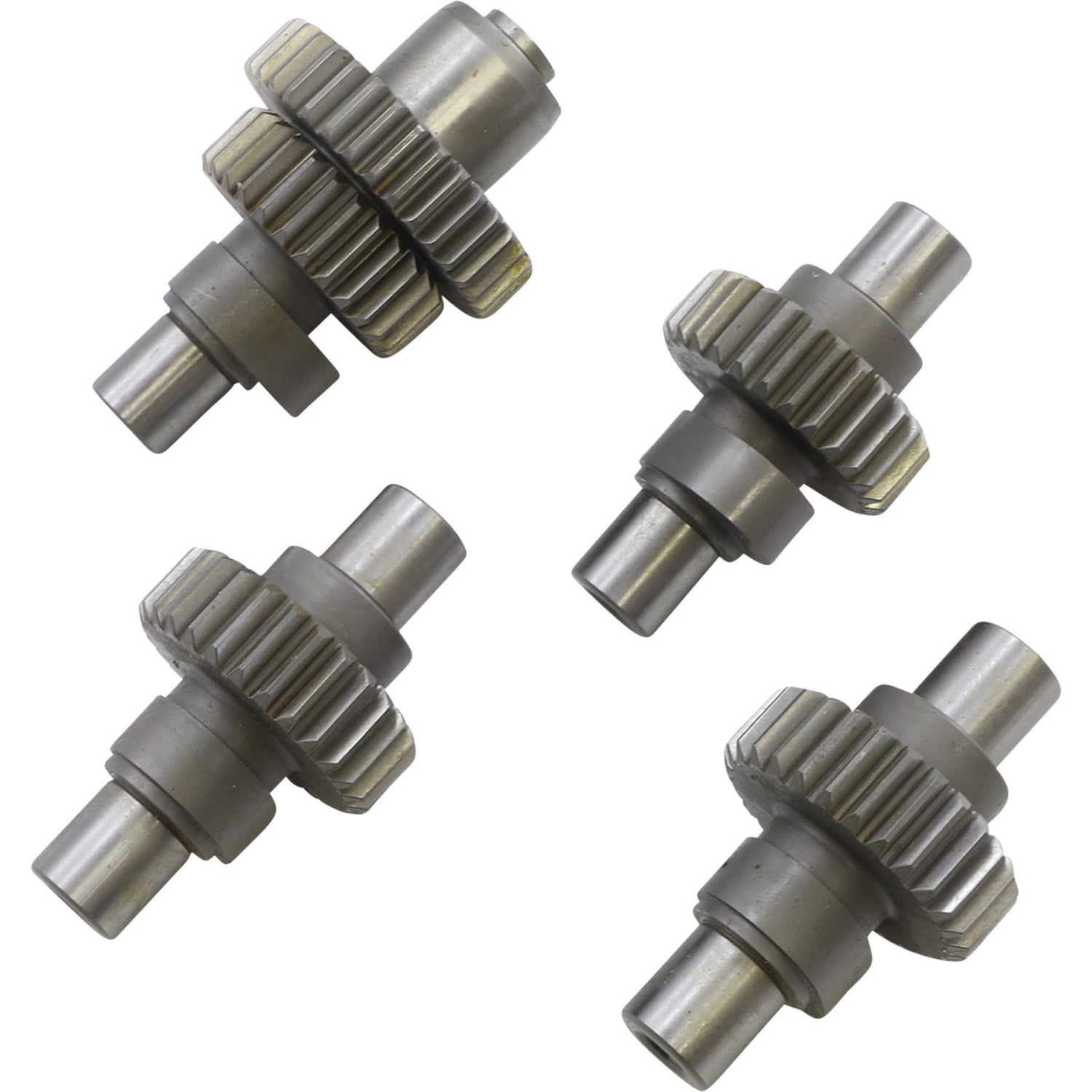

S&S Cycle 500 Camshafts 500 Buell - 33-5082 For Harley Sportster 1986-2019 | Buell Motorcycles 1994-2002
MPN:
33-5082
SKU:
0925-1080
Loading...
S&S Cycle
S&S Cycle 500 Camshafts 500 Buell - 33-5082 For Harley Sportster 1986-2019 | Buell Motorcycles 1994-2002
MPN:
33-5082
SKU:
0925-1080
SKU:
0925-1080
S&S Cams are tested on the dyno, street and track before being offered to the public
Bolt in cams that provide excellent torque with stock or ported heads
Recommended for modified engines up to 89" displacement and compression ratio of 9.0:1 to 10.5:1
Will work in 89" - 100" engines with less than 9.0:1 compression ratio
2000 to 6000 rpm
Works with stock valve springs and stock non-adjustable pushrods
Models with stock flywheels require use of '91-'99 style pinion gear (sold separately).
Installer must check coil bind, valve to valve clearance, valve to piston clearance and cam lobe to case clearance.
Specs
Product Name
Cam / Camshaft
Application
Intake / Exhaust
Color/Finish
Raw
Grind
500
Intake Open
34°
Intake Lift
0.500"
Intake Duration
264°
Exhaust Lift
0.500"
Exhaust Duration
264°
Exhaust Lift at TDC
0.212"
Exhaust Open
56°
Exhaust Close
28°
Units
Each
Riding Style
Street
1986-1988
Harley-Davidson
Sportster 1100 XLH
1986-1995
Harley-Davidson
Sportster 883 Deluxe XLH
1986-2003
Harley-Davidson
Sportster 883 XLH
1987-1998,2002-2003
Harley-Davidson
Sportster 883 Hugger XLH
1988-2003
Harley-Davidson
Sportster 1200 XLH
1994-1995
Buell
S2 Thunderbolt
1995-1996
Buell
S2T Thunderbolt
1996-1998
Buell
S1 Lightning
1996-2019
Harley-Davidson
Sportster 1200 Custom XL1200C
1996-2003
Harley-Davidson
Sportster 1200 Sport XL1200S
1997-2002
Buell
M2 Cyclone
1997-2002
Buell
S3 Thunderbolt
1997-2002
Buell
S3T Thunderbolt
1998
Buell
S1 White Lightning
1998-2009
Harley-Davidson
Sportster 883 Custom XL883C
1999-2002
Buell
X1 Lightning
2000-2002
Buell
Blast
2001
Buell
M2 Cyclone Low
2002
Buell
M2L Cyclone
2002
Buell
X1W White Lightning
2002
Buell
XB9R Firebolt
2002-2003,2011-2017
Harley-Davidson
1200 XLCP
2002-2003,2005-2007
Harley-Davidson
Sportster 883 Roadster XL883R
2004-2009
Harley-Davidson
Sportster 1200 Roadster XL1200R
2004-2009
Harley-Davidson
Sportster XL883
2005-2010
Harley-Davidson
Sportster 883 Low XL883L
2006-2011
Harley-Davidson
Sportster 1200 Low XL1200L
2007
Harley-Davidson
Sportster 1200 50 XL
2007-2012
Harley-Davidson
Sportster 1200 Nightster XL1200N
2009-2019
Harley-Davidson
Sportser Iron 883 XLN
2009-2012
Harley-Davidson
Sportster 1200 X XR
2010-2012
Harley-Davidson
Sportster 1200 XR
2010-2019
Harley-Davidson
Sportster Forty-Eight XLX
2011-2019
Harley-Davidson
SuperLow XL883L
2012-2016
Harley-Davidson
Sportster Seventy-Two XLV
2014-2017
Harley-Davidson
SuperLow 1200T XL1200T
2016-2019
Harley-Davidson
1200 Roadster XLCX
2018-2019
Harley-Davidson
Sportser Iron 1200 XLNS
2018-2019
Harley-Davidson
Sportster Forty-Eight Special XLXS
Fitment DisclosureThis quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Regular price
$639.95
Unit price
Shipping calculated at checkout.
Product Details
Features
- S&S Cams are tested on the dyno, street and track before being offered to the public
- Bolt in cams that provide excellent torque with stock or ported heads
- Recommended for modified engines up to 89" displacement and compression ratio of 9.0:1 to 10.5:1
- Will work in 89" - 100" engines with less than 9.0:1 compression ratio
- 2000 to 6000 rpm
- Works with stock valve springs and stock non-adjustable pushrods
- Models with stock flywheels require use of '91-'99 style pinion gear (sold separately).
- Installer must check coil bind, valve to valve clearance, valve to piston clearance and cam lobe to case clearance.
Specs
| Product Name | Cam / Camshaft |
| Application | Intake / Exhaust |
| Color/Finish | Raw |
| Grind | 500 |
| Intake Open | 34° |
| Intake Lift | 0.500" |
| Intake Duration | 264° |
| Exhaust Lift | 0.500" |
| Exhaust Duration | 264° |
| Exhaust Lift at TDC | 0.212" |
| Exhaust Open | 56° |
| Exhaust Close | 28° |
| Units | Each |
| Riding Style | Street |
| 1986-1988 | Harley-Davidson | Sportster 1100 XLH |
| 1986-1995 | Harley-Davidson | Sportster 883 Deluxe XLH |
| 1986-2003 | Harley-Davidson | Sportster 883 XLH |
| 1987-1998,2002-2003 | Harley-Davidson | Sportster 883 Hugger XLH |
| 1988-2003 | Harley-Davidson | Sportster 1200 XLH |
| 1994-1995 | Buell | S2 Thunderbolt |
| 1995-1996 | Buell | S2T Thunderbolt |
| 1996-1998 | Buell | S1 Lightning |
| 1996-2019 | Harley-Davidson | Sportster 1200 Custom XL1200C |
| 1996-2003 | Harley-Davidson | Sportster 1200 Sport XL1200S |
| 1997-2002 | Buell | M2 Cyclone |
| 1997-2002 | Buell | S3 Thunderbolt |
| 1997-2002 | Buell | S3T Thunderbolt |
| 1998 | Buell | S1 White Lightning |
| 1998-2009 | Harley-Davidson | Sportster 883 Custom XL883C |
| 1999-2002 | Buell | X1 Lightning |
| 2000-2002 | Buell | Blast |
| 2001 | Buell | M2 Cyclone Low |
| 2002 | Buell | M2L Cyclone |
| 2002 | Buell | X1W White Lightning |
| 2002 | Buell | XB9R Firebolt |
| 2002-2003,2011-2017 | Harley-Davidson | 1200 XLCP |
| 2002-2003,2005-2007 | Harley-Davidson | Sportster 883 Roadster XL883R |
| 2004-2009 | Harley-Davidson | Sportster 1200 Roadster XL1200R |
| 2004-2009 | Harley-Davidson | Sportster XL883 |
| 2005-2010 | Harley-Davidson | Sportster 883 Low XL883L |
| 2006-2011 | Harley-Davidson | Sportster 1200 Low XL1200L |
| 2007 | Harley-Davidson | Sportster 1200 50 XL |
| 2007-2012 | Harley-Davidson | Sportster 1200 Nightster XL1200N |
| 2009-2019 | Harley-Davidson | Sportser Iron 883 XLN |
| 2009-2012 | Harley-Davidson | Sportster 1200 X XR |
| 2010-2012 | Harley-Davidson | Sportster 1200 XR |
| 2010-2019 | Harley-Davidson | Sportster Forty-Eight XLX |
| 2011-2019 | Harley-Davidson | SuperLow XL883L |
| 2012-2016 | Harley-Davidson | Sportster Seventy-Two XLV |
| 2014-2017 | Harley-Davidson | SuperLow 1200T XL1200T |
| 2016-2019 | Harley-Davidson | 1200 Roadster XLCX |
| 2018-2019 | Harley-Davidson | Sportser Iron 1200 XLNS |
| 2018-2019 | Harley-Davidson | Sportster Forty-Eight Special XLXS |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Product Description
Features
- S&S Cams are tested on the dyno, street and track before being offered to the public
- Bolt in cams that provide excellent torque with stock or ported heads
- Recommended for modified engines up to 89" displacement and compression ratio of 9.0:1 to 10.5:1
- Will work in 89" - 100" engines with less than 9.0:1 compression ratio
- 2000 to 6000 rpm
- Works with stock valve springs and stock non-adjustable pushrods
- Models with stock flywheels require use of '91-'99 style pinion gear (sold separately).
- Installer must check coil bind, valve to valve clearance, valve to piston clearance and cam lobe to case clearance.
Specs
| Product Name | Cam / Camshaft |
| Application | Intake / Exhaust |
| Color/Finish | Raw |
| Grind | 500 |
| Intake Open | 34° |
| Intake Lift | 0.500" |
| Intake Duration | 264° |
| Exhaust Lift | 0.500" |
| Exhaust Duration | 264° |
| Exhaust Lift at TDC | 0.212" |
| Exhaust Open | 56° |
| Exhaust Close | 28° |
| Units | Each |
| Riding Style | Street |
| 1986-1988 | Harley-Davidson | Sportster 1100 XLH |
| 1986-1995 | Harley-Davidson | Sportster 883 Deluxe XLH |
| 1986-2003 | Harley-Davidson | Sportster 883 XLH |
| 1987-1998,2002-2003 | Harley-Davidson | Sportster 883 Hugger XLH |
| 1988-2003 | Harley-Davidson | Sportster 1200 XLH |
| 1994-1995 | Buell | S2 Thunderbolt |
| 1995-1996 | Buell | S2T Thunderbolt |
| 1996-1998 | Buell | S1 Lightning |
| 1996-2019 | Harley-Davidson | Sportster 1200 Custom XL1200C |
| 1996-2003 | Harley-Davidson | Sportster 1200 Sport XL1200S |
| 1997-2002 | Buell | M2 Cyclone |
| 1997-2002 | Buell | S3 Thunderbolt |
| 1997-2002 | Buell | S3T Thunderbolt |
| 1998 | Buell | S1 White Lightning |
| 1998-2009 | Harley-Davidson | Sportster 883 Custom XL883C |
| 1999-2002 | Buell | X1 Lightning |
| 2000-2002 | Buell | Blast |
| 2001 | Buell | M2 Cyclone Low |
| 2002 | Buell | M2L Cyclone |
| 2002 | Buell | X1W White Lightning |
| 2002 | Buell | XB9R Firebolt |
| 2002-2003,2011-2017 | Harley-Davidson | 1200 XLCP |
| 2002-2003,2005-2007 | Harley-Davidson | Sportster 883 Roadster XL883R |
| 2004-2009 | Harley-Davidson | Sportster 1200 Roadster XL1200R |
| 2004-2009 | Harley-Davidson | Sportster XL883 |
| 2005-2010 | Harley-Davidson | Sportster 883 Low XL883L |
| 2006-2011 | Harley-Davidson | Sportster 1200 Low XL1200L |
| 2007 | Harley-Davidson | Sportster 1200 50 XL |
| 2007-2012 | Harley-Davidson | Sportster 1200 Nightster XL1200N |
| 2009-2019 | Harley-Davidson | Sportser Iron 883 XLN |
| 2009-2012 | Harley-Davidson | Sportster 1200 X XR |
| 2010-2012 | Harley-Davidson | Sportster 1200 XR |
| 2010-2019 | Harley-Davidson | Sportster Forty-Eight XLX |
| 2011-2019 | Harley-Davidson | SuperLow XL883L |
| 2012-2016 | Harley-Davidson | Sportster Seventy-Two XLV |
| 2014-2017 | Harley-Davidson | SuperLow 1200T XL1200T |
| 2016-2019 | Harley-Davidson | 1200 Roadster XLCX |
| 2018-2019 | Harley-Davidson | Sportser Iron 1200 XLNS |
| 2018-2019 | Harley-Davidson | Sportster Forty-Eight Special XLXS |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0925-1080 | 33-5082 | In Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
