SKU:
0925-0044
S&S Cams are tested on the dyno, street and track before being offered to the public
With hundreds of hours of testing on each cam, you know you are getting the best cam S&S can produce
For large displacement engines (110"+) with 10.5 to 11.5:1 compression and smaller engines (96-107") with 11 to 12:1 compression
Requires high-lift springs
Less overlap and fast ramps build higher cylinder pressure
Lower TDC lift makes installation easier
Designed for use with hydraulic tappets
Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.
Made in the U.S.A.
Specs
Product Name
Cam
Type
Gear
Application
Exhaust / Intake
Grind
640 Series
Intake Lift at TDC
0.222"
Intake Open
25°
Intake Lift
0.640"
Intake Duration
265°
Intake Lobe Centerline
107.5°
Intake Close
60°
Exhaust Lift
0.640"
Exhaust Duration
265°
Exhaust Lobe Centerline
112.5"
Exhaust Lift at TDC
0.192"
Exhaust Open
65°
Exhaust Close
20°
Units
Each
Riding Style
Street
Regular price
$255.95
Unit price
Shipping calculated at checkout.
Product Details
Features
- S&S Cams are tested on the dyno, street and track before being offered to the public
- With hundreds of hours of testing on each cam, you know you are getting the best cam S&S can produce
- For large displacement engines (110"+) with 10.5 to 11.5:1 compression and smaller engines (96-107") with 11 to 12:1 compression
- Requires high-lift springs
- Less overlap and fast ramps build higher cylinder pressure
- Lower TDC lift makes installation easier
- Designed for use with hydraulic tappets
- Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.
- Made in the U.S.A.
Specs
| Product Name | Cam |
| Type | Gear |
| Application | Exhaust / Intake |
| Grind | 640 Series |
| Intake Lift at TDC | 0.222" |
| Intake Open | 25° |
| Intake Lift | 0.640" |
| Intake Duration | 265° |
| Intake Lobe Centerline | 107.5° |
| Intake Close | 60° |
| Exhaust Lift | 0.640" |
| Exhaust Duration | 265° |
| Exhaust Lobe Centerline | 112.5" |
| Exhaust Lift at TDC | 0.192" |
| Exhaust Open | 65° |
| Exhaust Close | 20° |
| Units | Each |
| Riding Style | Street |
Product Description
Features
- S&S Cams are tested on the dyno, street and track before being offered to the public
- With hundreds of hours of testing on each cam, you know you are getting the best cam S&S can produce
- For large displacement engines (110"+) with 10.5 to 11.5:1 compression and smaller engines (96-107") with 11 to 12:1 compression
- Requires high-lift springs
- Less overlap and fast ramps build higher cylinder pressure
- Lower TDC lift makes installation easier
- Designed for use with hydraulic tappets
- Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.
- Made in the U.S.A.
Specs
| Product Name | Cam |
| Type | Gear |
| Application | Exhaust / Intake |
| Grind | 640 Series |
| Intake Lift at TDC | 0.222" |
| Intake Open | 25° |
| Intake Lift | 0.640" |
| Intake Duration | 265° |
| Intake Lobe Centerline | 107.5° |
| Intake Close | 60° |
| Exhaust Lift | 0.640" |
| Exhaust Duration | 265° |
| Exhaust Lobe Centerline | 112.5" |
| Exhaust Lift at TDC | 0.192" |
| Exhaust Open | 65° |
| Exhaust Close | 20° |
| Units | Each |
| Riding Style | Street |
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0925-0044 | 33-5108 | In Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Customer Reviews

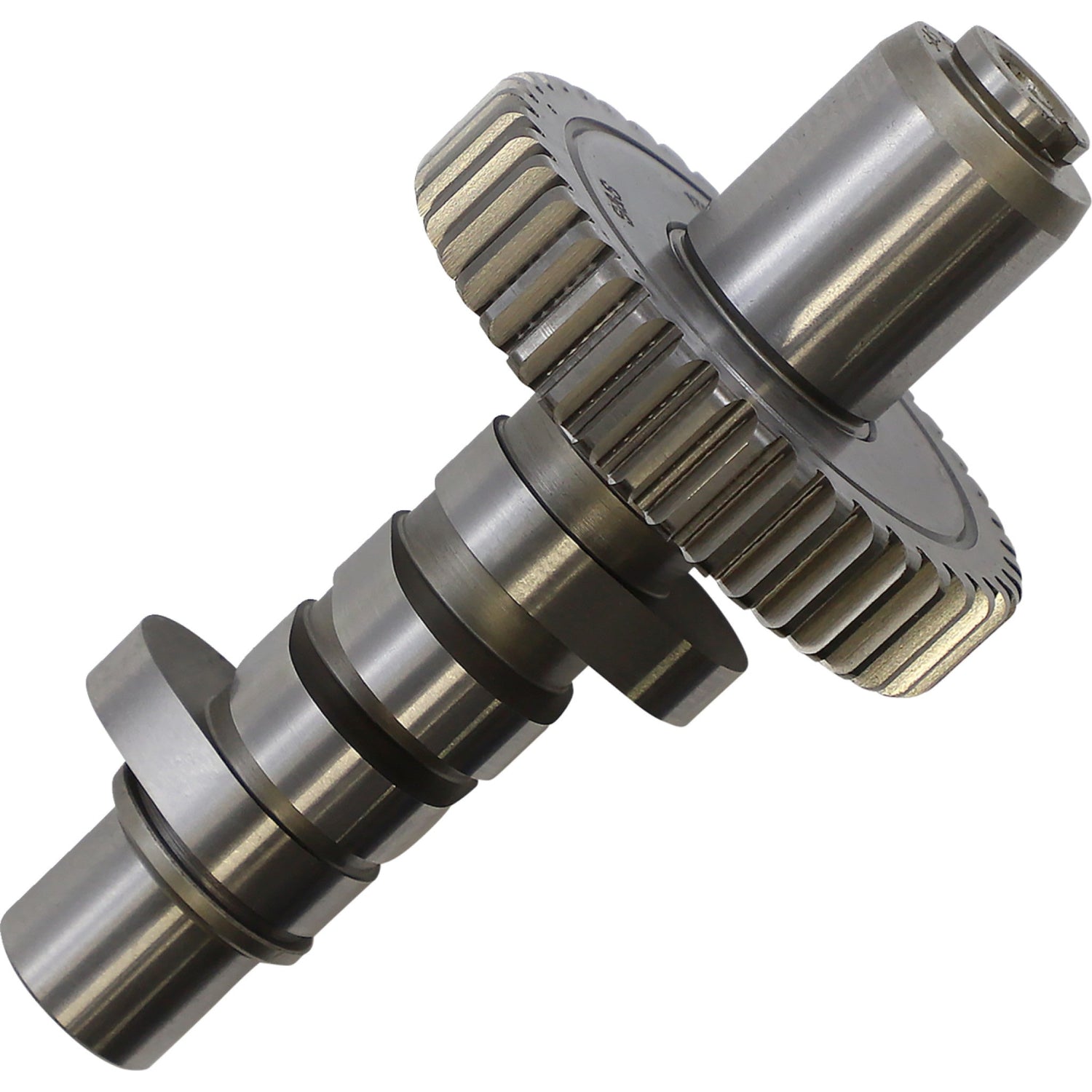

S&S Cycle Cam - 33-5108 For Harley Motorcycles 1984-1999
