Progressive Suspension

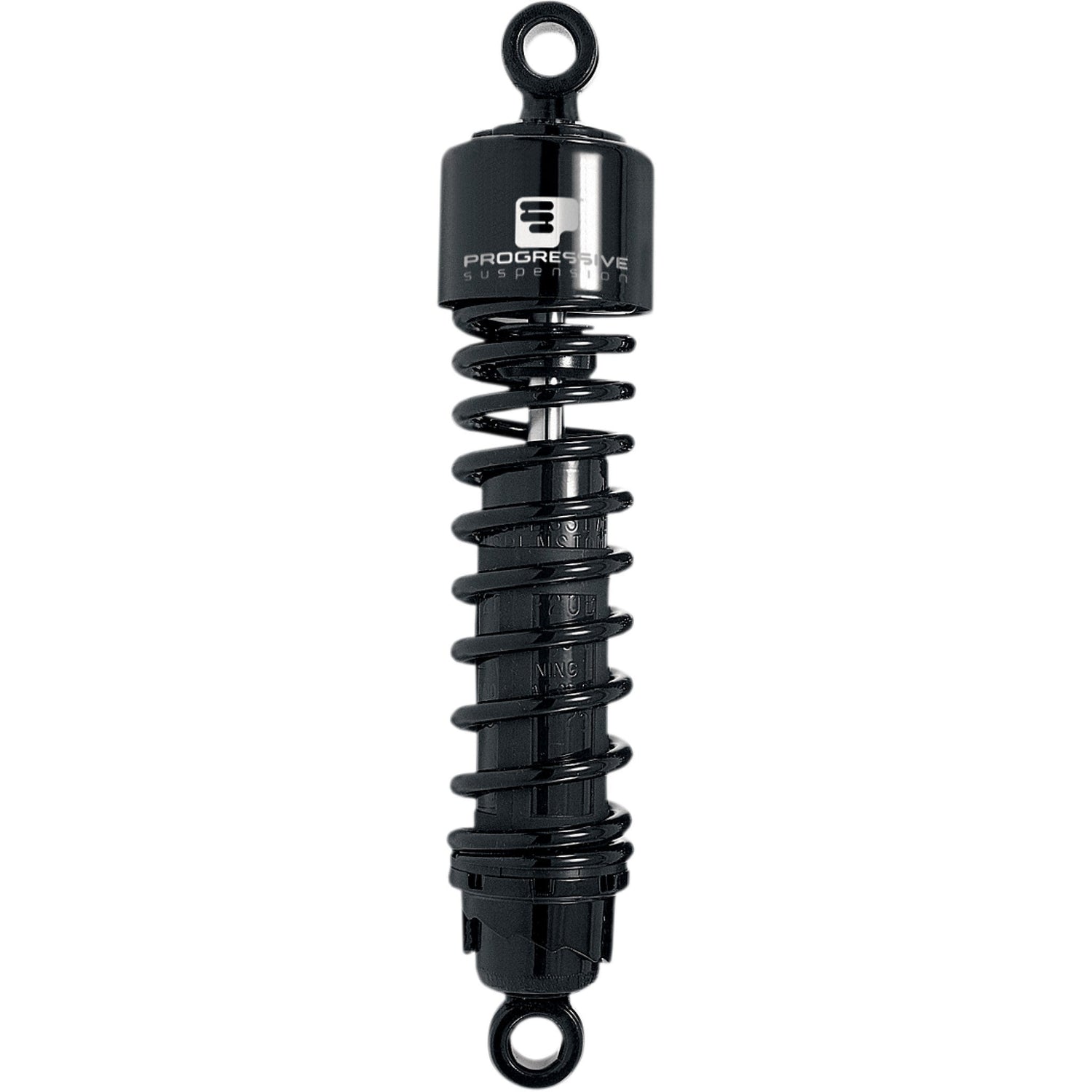

Progressive Suspension 412 Series Without Covers Shock Absorber - 412-4067B For Harley Sportster 2004-2022
MPN:
412-4067B
SKU:
1310-0396
Progressive Suspension
Progressive Suspension 412 Series Without Covers Shock Absorber - 412-4067B For Harley Sportster 2004-2022
MPN:
412-4067B
SKU:
1310-0396
SKU:
1310-0396
Designed specifically for Harley models
The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance
A five position cam style spring load preload adjuster lets you easily dial in your ride
Some or all shocks listed are approved for road use. Refer to most recent certificate for current listing
There are multiple style options available, like full show-chrome or black covers; or either chrome or black springs and end caps
Made in the U.S.A
All shocks are measured center-of-eyelet to center-of-eyelet.
When installing shocks on '86-'15 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.
A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.
A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.
Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.
Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.
Specs
Product Name
Shock Absorber
Type
Coilover Monotube
Model
412 Series without Covers
Damping Method
Gas Charged
Duty
Heavy Duty
Color/Finish
Black
Material
Steel
Extended Length
11.00"
Progressive Spring Rate
2.05 kg/mm - 2.80 kg/mm / 120.00 lb/in - 170.00 lb/in
Spring Type
Single Progressive Rate
Reservoir Location
Internal
Adjustment Style
Automatic
Mounting Position
Rear
Units
Pair
Riding Style
Street
2004-2019
Harley-Davidson
Sportster 1200 Custom XL1200C
2004-2009
Harley-Davidson
Sportster 1200 Roadster XL1200R
2004-2009
Harley-Davidson
Sportster 883 Custom XL883C
2004-2009
Harley-Davidson
Sportster XL883
2005-2010
Harley-Davidson
Sportster 883 Low XL883L
2005-2007
Harley-Davidson
Sportster 883 Roadster XL883R
2006-2011
Harley-Davidson
Sportster 1200 Low XL1200L
2007
Harley-Davidson
Sportster 1200 50 XL
2007-2012
Harley-Davidson
Sportster 1200 Nightster XL1200N
2009-2022
Harley-Davidson
Sportser Iron 883 XLN
2009-2012
Harley-Davidson
Sportster 1200 X XR
2010-2012
Harley-Davidson
Sportster 1200 XR
2010-2022
Harley-Davidson
Sportster Forty-Eight XLX
2011-2017
Harley-Davidson
1200 XLCP
2011-2019
Harley-Davidson
SuperLow XL883L
2012-2016
Harley-Davidson
Sportster Seventy-Two XLV
2014-2017
Harley-Davidson
SuperLow 1200T XL1200T
2016-2020
Harley-Davidson
1200 Roadster XLCX
2018-2021
Harley-Davidson
Sportser Iron 1200 XLNS
2018-2019
Harley-Davidson
Sportster Forty-Eight Special XLXS
Fitment DisclosureThis quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Regular price
$379.95
Unit price
Shipping calculated at checkout.
Product Details
Features
- Designed specifically for Harley models
- The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance
- A five position cam style spring load preload adjuster lets you easily dial in your ride
- Some or all shocks listed are approved for road use. Refer to most recent certificate for current listing
- There are multiple style options available, like full show-chrome or black covers; or either chrome or black springs and end caps
- Made in the U.S.A
- All shocks are measured center-of-eyelet to center-of-eyelet.
- When installing shocks on '86-'15 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.
- A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.
- A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.
- Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.
- Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.
Specs
| Product Name | Shock Absorber |
| Type | Coilover Monotube |
| Model | 412 Series without Covers |
| Damping Method | Gas Charged |
| Duty | Heavy Duty |
| Color/Finish | Black |
| Material | Steel |
| Extended Length | 11.00" |
| Progressive Spring Rate | 2.05 kg/mm - 2.80 kg/mm / 120.00 lb/in - 170.00 lb/in |
| Spring Type | Single Progressive Rate |
| Reservoir Location | Internal |
| Adjustment Style | Automatic |
| Mounting Position | Rear |
| Units | Pair |
| Riding Style | Street |
| 2004-2019 | Harley-Davidson | Sportster 1200 Custom XL1200C |
| 2004-2009 | Harley-Davidson | Sportster 1200 Roadster XL1200R |
| 2004-2009 | Harley-Davidson | Sportster 883 Custom XL883C |
| 2004-2009 | Harley-Davidson | Sportster XL883 |
| 2005-2010 | Harley-Davidson | Sportster 883 Low XL883L |
| 2005-2007 | Harley-Davidson | Sportster 883 Roadster XL883R |
| 2006-2011 | Harley-Davidson | Sportster 1200 Low XL1200L |
| 2007 | Harley-Davidson | Sportster 1200 50 XL |
| 2007-2012 | Harley-Davidson | Sportster 1200 Nightster XL1200N |
| 2009-2022 | Harley-Davidson | Sportser Iron 883 XLN |
| 2009-2012 | Harley-Davidson | Sportster 1200 X XR |
| 2010-2012 | Harley-Davidson | Sportster 1200 XR |
| 2010-2022 | Harley-Davidson | Sportster Forty-Eight XLX |
| 2011-2017 | Harley-Davidson | 1200 XLCP |
| 2011-2019 | Harley-Davidson | SuperLow XL883L |
| 2012-2016 | Harley-Davidson | Sportster Seventy-Two XLV |
| 2014-2017 | Harley-Davidson | SuperLow 1200T XL1200T |
| 2016-2020 | Harley-Davidson | 1200 Roadster XLCX |
| 2018-2021 | Harley-Davidson | Sportser Iron 1200 XLNS |
| 2018-2019 | Harley-Davidson | Sportster Forty-Eight Special XLXS |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Product Description
Features
- Designed specifically for Harley models
- The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance
- A five position cam style spring load preload adjuster lets you easily dial in your ride
- Some or all shocks listed are approved for road use. Refer to most recent certificate for current listing
- There are multiple style options available, like full show-chrome or black covers; or either chrome or black springs and end caps
- Made in the U.S.A
- All shocks are measured center-of-eyelet to center-of-eyelet.
- When installing shocks on '86-'15 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.
- A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.
- A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.
- Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.
- Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.
Specs
| Product Name | Shock Absorber |
| Type | Coilover Monotube |
| Model | 412 Series without Covers |
| Damping Method | Gas Charged |
| Duty | Heavy Duty |
| Color/Finish | Black |
| Material | Steel |
| Extended Length | 11.00" |
| Progressive Spring Rate | 2.05 kg/mm - 2.80 kg/mm / 120.00 lb/in - 170.00 lb/in |
| Spring Type | Single Progressive Rate |
| Reservoir Location | Internal |
| Adjustment Style | Automatic |
| Mounting Position | Rear |
| Units | Pair |
| Riding Style | Street |
| 2004-2019 | Harley-Davidson | Sportster 1200 Custom XL1200C |
| 2004-2009 | Harley-Davidson | Sportster 1200 Roadster XL1200R |
| 2004-2009 | Harley-Davidson | Sportster 883 Custom XL883C |
| 2004-2009 | Harley-Davidson | Sportster XL883 |
| 2005-2010 | Harley-Davidson | Sportster 883 Low XL883L |
| 2005-2007 | Harley-Davidson | Sportster 883 Roadster XL883R |
| 2006-2011 | Harley-Davidson | Sportster 1200 Low XL1200L |
| 2007 | Harley-Davidson | Sportster 1200 50 XL |
| 2007-2012 | Harley-Davidson | Sportster 1200 Nightster XL1200N |
| 2009-2022 | Harley-Davidson | Sportser Iron 883 XLN |
| 2009-2012 | Harley-Davidson | Sportster 1200 X XR |
| 2010-2012 | Harley-Davidson | Sportster 1200 XR |
| 2010-2022 | Harley-Davidson | Sportster Forty-Eight XLX |
| 2011-2017 | Harley-Davidson | 1200 XLCP |
| 2011-2019 | Harley-Davidson | SuperLow XL883L |
| 2012-2016 | Harley-Davidson | Sportster Seventy-Two XLV |
| 2014-2017 | Harley-Davidson | SuperLow 1200T XL1200T |
| 2016-2020 | Harley-Davidson | 1200 Roadster XLCX |
| 2018-2021 | Harley-Davidson | Sportser Iron 1200 XLNS |
| 2018-2019 | Harley-Davidson | Sportster Forty-Eight Special XLXS |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 1310-0396 | 412-4067B | In Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
