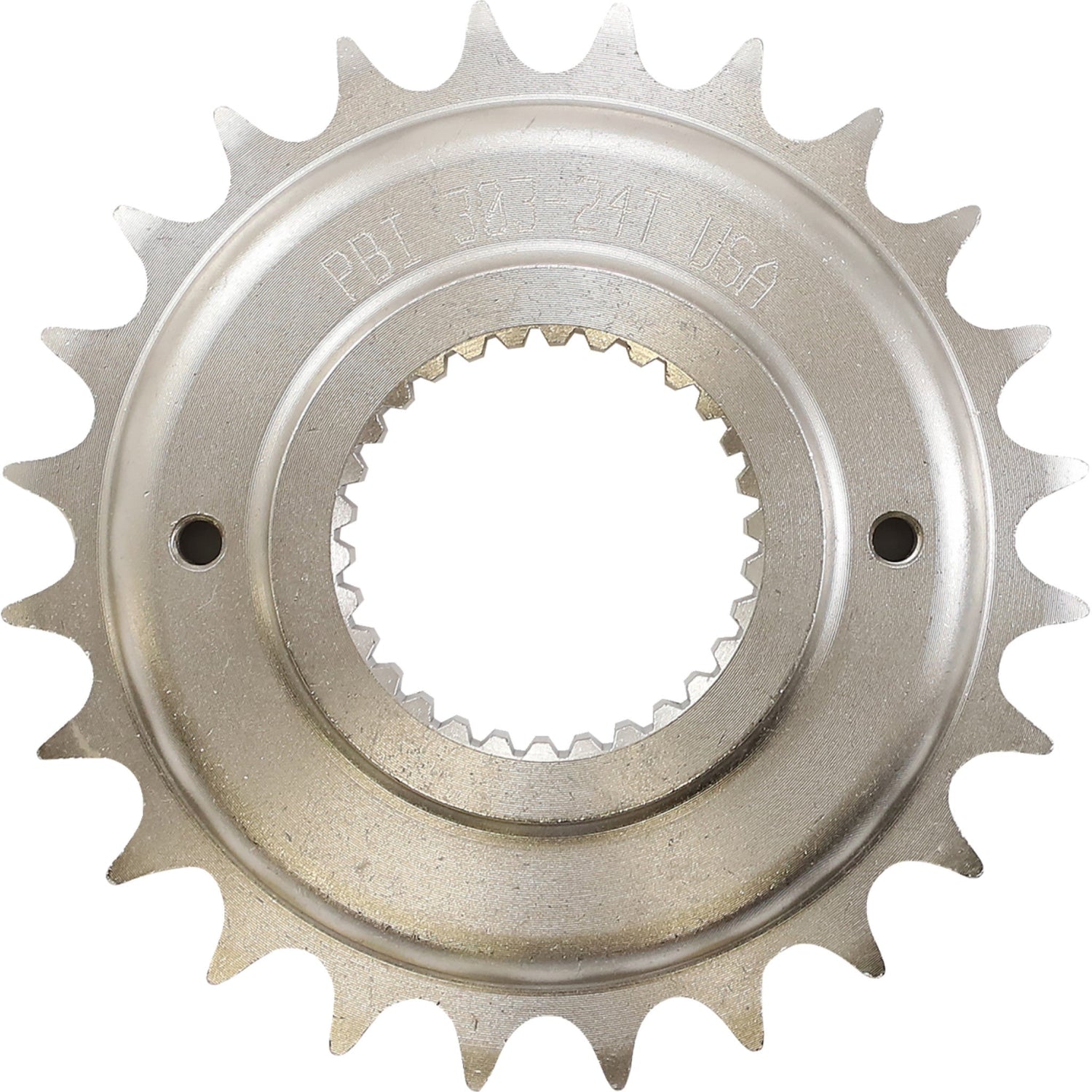

PBI 1212-0523 303-24 Offset Transmission Sprocket 24 tooth
Regular price
$130.90
Unit price
Unavailable
Features
- CNC-machined from a premium nickel, chromoly steel (8620), case-hardened and finished with an electroless nickel plating for corrosion/wear resistance and lubricity
- Sprockets are drilled and tapped to accommodate late-model lock plate, PART #DS-360182, available separately
- Offset measurement is taken from the face that rests against the mainshaft bearing to the inside of the teeth for "Total Offset" description
- For use with .530 pitch chain
- Made in the U.S.A.
Specs
| Chain Size | 530 |
| Type | Mainshaft |
| Offset | 0.500" |
| Units | Each |
| Tooth Count | 24 |
| Material | Steel |
| Product Name | Sprocket |
| Color/Finish | Nickel |
| Riding Style | Street |
Part Notes
- Will also fit 86-93 Big Twin models with use of OEM #33344-94 (spacer), OEM #12067A (seal) and OEM #11165 (O-ring)
| 2006-2009,2014-2017 | Harley-Davidson | Dyna Low Rider FXDL |
| 2006 | Harley-Davidson | Dyna Low Rider FXDLI |
| 2006-2008,2010-2017 | Harley-Davidson | Dyna Wide Glide FXDWG |
| 2006 | Harley-Davidson | Dyna Wide Glide FXDWGI |
| 2006-2013 | Harley-Davidson | Electra Glide Classic FLHTC |
| 2006 | Harley-Davidson | Electra Glide Classic FLHTCI |
| 2006,2025 | Harley-Davidson | Electra Glide Police FLHTP |
| 2006-2025 | Harley-Davidson | Electra Glide Police FLHTPI |
| 2006-2009,2019-2022 | Harley-Davidson | Electra Glide Standard FLHT |
| 2006 | Harley-Davidson | Electra Glide Standard FLHTI |
| 2006-2019 | Harley-Davidson | Electra Glide Ultra Classic FLHTCU |
| 2006 | Harley-Davidson | Electra Glide Ultra Classic FLHTCUI |
| 2006-2010,2016 | Harley-Davidson | Road Glide FLTR |
| 2006 | Harley-Davidson | Road Glide FLTRI |
| 2006 | Harley-Davidson | Road King Classic FLHRCI |
| 2006-2007 | Harley-Davidson | Road King Custom FLHRS |
| 2006 | Harley-Davidson | Road King Custom FLHRSI |
| 2006-2022 | Harley-Davidson | Road King FLHR |
| 2006 | Harley-Davidson | Road King FLHRI |
| 2006 | Harley-Davidson | Screamin' Eagle Electra Glide Ultra Classic FLHTCUSE |
| 2006 | Harley-Davidson | Screamin' Eagle Fat Boy FLSTFSE |
| 2006 | Harley-Davidson | Screamin' Eagle Fat Boy FLSTFSE2 |
| 2006-2017 | Harley-Davidson | Softail Deluxe FLSTN |
| 2006 | Harley-Davidson | Softail Deluxe FLSTNI |
| 2006-2007 | Harley-Davidson | Softail Deuce FXSTD |
| 2006 | Harley-Davidson | Softail Deuce FXSTDI |
| 2006-2017 | Harley-Davidson | Softail Fat Boy FLSTF |
| 2006 | Harley-Davidson | Softail Fat Boy FLSTFI |
| 2006-2017 | Harley-Davidson | Softail Heritage Classic FLSTC |
| 2006 | Harley-Davidson | Softail Heritage Classic FLSTCI |
| 2006 | Harley-Davidson | Softail Heritage FLST |
| 2006 | Harley-Davidson | Softail Heritage FLSTI |
| 2006-2009 | Harley-Davidson | Softail Night Train FXSTB |
| 2006 | Harley-Davidson | Softail Night Train FXSTBI |
| 2006-2007 | Harley-Davidson | Softail Springer Classic FLSTSC |
| 2006 | Harley-Davidson | Softail Springer Classic FLSTSCI |
| 2006 | Harley-Davidson | Softail Springer FXSTS |
| 2006 | Harley-Davidson | Softail Springer FXSTSI |
| 2006-2009,2020-2024 | Harley-Davidson | Softail Standard FXST |
| 2006,2010-2012 | Harley-Davidson | Softail Standard FXSTI |
| 2006-2017 | Harley-Davidson | Street Bob FXDB |
| 2006 | Harley-Davidson | Street Bob FXDBI |
| 2006-2026 | Harley-Davidson | Street Glide FLHX/FLHXS |
| 2006 | Harley-Davidson | Street Glide FLHXI |
| 2006 | Harley-Davidson | Super Glide Custom FXDCI |
| 2006-2010 | Harley-Davidson | Super Glide FXD |
| 2006 | Harley-Davidson | Super Glide FXD35 |
| 2006 | Harley-Davidson | Super Glide FXDI |
| 2007-2013 | Harley-Davidson | Road King Classic FLHRC |
| 2007,2009-2025 | Harley-Davidson | Road King Police FLHP |
| 2007 | Harley-Davidson | Screamin' Eagle Dyna FXDSE |
| 2007 | Harley-Davidson | Screamin' Eagle Electra Glide Ultra Classic FLHTCUSE2 |
| 2007-2008 | Harley-Davidson | Screamin' Eagle Road King FLHRSE3 |
| 2007 | Harley-Davidson | Screamin' Eagle Softail Springer FXSTSSE |
| 2007-2010 | Harley-Davidson | Softail Custom FXSTC |
| 2007-2011 | Harley-Davidson | Softail Rocker C FXCWC |
| 2007-2010 | Harley-Davidson | Softail Rocker FXCW |
| 2007-2014 | Harley-Davidson | Super Glide Custom FXDC |
| 2008-2017 | Harley-Davidson | Fat Bob FXDF |
| 2008 | Harley-Davidson | Screamin' Eagle Dyna FXDSE2 |
| 2008 | Harley-Davidson | Screamin' Eagle Electra Glide Ultra Classic FLHTCUSE3 |
| 2008 | Harley-Davidson | Screamin' Eagle Road King FLHRSE4 |
| 2008 | Harley-Davidson | Screamin' Eagle Softail Springer FXSTSSE2 |
| 2008-2011 | Harley-Davidson | Softail Cross Bones FLSTSB |
| 2009 | Harley-Davidson | CVO Fat Bob FXDFSE |
| 2009 | Harley-Davidson | CVO Road Glide FLTRSE3 |
| 2009 | Harley-Davidson | CVO Softail Springer FXSTSSE3 |
| 2009 | Harley-Davidson | CVO Ultra Classic Electra Glide FLHTCUSE4 |
| 2009-2017 | Harley-Davidson | Softail Fat Boy Lo FLSTFB |
| 2010 | Harley-Davidson | CVO Fat Bob FXDFSE2 |
| 2010 | Harley-Davidson | CVO Softail Convertible FLSTSE |
| 2010,2015-2025 | Harley-Davidson | CVO Street Glide FLHXSE |
| 2010 | Harley-Davidson | CVO Ultra Classic Electra Glide FLHTCUSE5 |
| 2010-2024 | Harley-Davidson | Electra Glide Ultra Limited FLHTK |
| 2010-2013,2015-2026 | Harley-Davidson | Road Glide FLTRX/FLTRXS |
| 2011-2013 | Harley-Davidson | Blackline FXS |
| 2011,2015-2016 | Harley-Davidson | CVO Road Glide Ultra FLTRUSE |
| 2011 | Harley-Davidson | CVO Softail Convertible FLSTSE2 |
| 2011 | Harley-Davidson | CVO Street Glide FLHXSE2 |
| 2011 | Harley-Davidson | CVO Ultra Classic Electra Glide FLHTCUSE6 |
| 2011-2013,2016-2019 | Harley-Davidson | Road Glide Ultra FLTRU |
| 2012 | Harley-Davidson | CVO Road Glide FLTRXSE |
| 2012 | Harley-Davidson | CVO Softail Convertible FLSTSE3 |
| 2012 | Harley-Davidson | CVO Street Glide FLHXSE3 |
| 2012 | Harley-Davidson | CVO Ultra Classic Electra Glide FLHTCUSE7 |
| 2012-2017 | Harley-Davidson | Softail Slim FLS |
| 2012-2016 | Harley-Davidson | Switchback FLD |
| 2013-2017 | Harley-Davidson | Breakout FXSB |
| 2013-2014 | Harley-Davidson | CVO Breakout FXSBSE |
| 2013 | Harley-Davidson | CVO Road Glide FLTRXSE2 |
| 2013 | Harley-Davidson | CVO Road King FLHRSE5 |
| 2013 | Harley-Davidson | CVO Ultra Classic Electra Glide FLHTCUSE8 |
| 2014-2021 | Harley-Davidson | CVO Electra Glide Ultra Limited FLHTKSE |
| 2014 | Harley-Davidson | CVO Road King FLHRSE |
| 2014-2015 | Harley-Davidson | CVO Softail Deluxe FLSTNSE |
| 2014-2016 | Harley-Davidson | Electra Glide Ultra Classic Low FLHTCUL |
| 2015-2019 | Harley-Davidson | Electra Glide Ultra Limited Low FLHTKL |
| 2016-2017 | Harley-Davidson | CVO Pro Street Breakout FXSE |
| 2016-2017 | Harley-Davidson | Low Rider S FXDLS |
| 2016-2017 | Harley-Davidson | Softail Fat Boy S FLSTFBS |
| 2016-2017 | Harley-Davidson | Softail Slim S FLSS |
| 2017-2025 | Harley-Davidson | Road King Special FLHRXS |
| 2018-2020 | Harley-Davidson | Softail Breakout 114 FXBRS |
| 2018-2019,2023-2025 | Harley-Davidson | Softail Breakout FXBR |
| 2018-2020 | Harley-Davidson | Softail Deluxe FLDE |
| 2018-2023 | Harley-Davidson | Softail Fat Bob 114 FXFBS |
| 2018-2019 | Harley-Davidson | Softail Fat Bob FXFB |
| 2018-2024 | Harley-Davidson | Softail Fat Boy 114 FLFBS |
| 2018-2019,2025 | Harley-Davidson | Softail Fat Boy FLFB |
| 2018-2024 | Harley-Davidson | Softail Heritage Classic 114 FLHCS |
| 2018-2021,2025 | Harley-Davidson | Softail Heritage Classic FLHC |
| 2018-2020 | Harley-Davidson | Softail Low Rider FXLR |
| 2018-2021 | Harley-Davidson | Softail Slim FLSL |
| 2018-2021 | Harley-Davidson | Softail Sport Glide FLSB |
| 2018-2020,2022,2025 | Harley-Davidson | Softail Street Bob FXBB |
| 2019-2020 | Harley-Davidson | FXDR 114 (FXDRS) |
| 2020-2024 | Harley-Davidson | Road Glide Limited FLTRK |
| 2020-2025 | Harley-Davidson | Softail Low Rider S FXLRS |
| 2021 | Harley-Davidson | Electra Glide Revival FLH |
| 2021-2024 | Harley-Davidson | Softail Street Bob 114 FXBBS |
| 2022-2023 | Harley-Davidson | CVO Road Glide Limited FLTRKSE |
| 2022-2023 | Harley-Davidson | Road Glide ST FLTRXST |
| 2022 | Harley-Davidson | Softail Low Rider El Diablo FXRST |
| 2022-2025 | Harley-Davidson | Softail Low Rider ST FXLRST |
| 2022-2023 | Harley-Davidson | Street Glide ST FLHXST |
| 2023 | Harley-Davidson | Electra Glide Highway King FLHFB |
| 2024 | Harley-Davidson | Hydra-Glide Revival FLI |
| 2024-2025 | Harley-Davidson | Road Glide Police FLTRXP |
| 2025 | Harley-Davidson | Street Glide Ultra FLHXU |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Payment & Security
