SKU:
JR9B
Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
Triple seals prevent leakage
Corrugated ribs prevent flashover
Copper core aids in heat removal
Specs
Center Electrode Type
Standard
Electrode Tip Material
Nickel Alloy
Electrical Resistance
5k Ohms
Ground Electrode Configuration
Single
Ground Electrode Shape
Standard
Hex Size
17.5 mm
Spark Gap
0.028"
Thread Reach
19.1 mm
Heat Range
9
Model
JR9B
Riding Style
ATV
Riding Style
Street
Spark Gap
0,7 mm (0,028")
Spark Gap
0.7 mm
Type
Resistor
Center Electrode Projection
Non-Projected
Terminal Configuration
Threaded Stud
Units
Each
Product Name
Spark Plug
Style
Standard
1988-1993
Suzuki
GSX1100F Katana
1989-1992
Suzuki
GSX-R 1100
1991-1993
Suzuki
GSX1100G
1997
Suzuki
GSF 1200SA Bandit
1997-2005
Suzuki
GSF1200S Bandit
2001-2003
Suzuki
GSF 1200 Bandit
Fitment DisclosureThis quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Regular price
$10.95
Unit price
Shipping calculated at checkout.
Product Details
Features
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Triple seals prevent leakage
- Corrugated ribs prevent flashover
- Copper core aids in heat removal
Specs
| Center Electrode Type | Standard |
| Electrode Tip Material | Nickel Alloy |
| Electrical Resistance | 5k Ohms |
| Ground Electrode Configuration | Single |
| Ground Electrode Shape | Standard |
| Hex Size | 17.5 mm |
| Spark Gap | 0.028" |
| Thread Reach | 19.1 mm |
| Heat Range | 9 |
| Model | JR9B |
| Riding Style | ATV |
| Riding Style | Street |
| Spark Gap | 0,7 mm (0,028") |
| Spark Gap | 0.7 mm |
| Type | Resistor |
| Center Electrode Projection | Non-Projected |
| Terminal Configuration | Threaded Stud |
| Units | Each |
| Product Name | Spark Plug |
| Style | Standard |
| 1988-1993 | Suzuki | GSX1100F Katana |
| 1989-1992 | Suzuki | GSX-R 1100 |
| 1991-1993 | Suzuki | GSX1100G |
| 1997 | Suzuki | GSF 1200SA Bandit |
| 1997-2005 | Suzuki | GSF1200S Bandit |
| 2001-2003 | Suzuki | GSF 1200 Bandit |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Product Description
Features
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Triple seals prevent leakage
- Corrugated ribs prevent flashover
- Copper core aids in heat removal
Specs
| Center Electrode Type | Standard |
| Electrode Tip Material | Nickel Alloy |
| Electrical Resistance | 5k Ohms |
| Ground Electrode Configuration | Single |
| Ground Electrode Shape | Standard |
| Hex Size | 17.5 mm |
| Spark Gap | 0.028" |
| Thread Reach | 19.1 mm |
| Heat Range | 9 |
| Model | JR9B |
| Riding Style | ATV |
| Riding Style | Street |
| Spark Gap | 0,7 mm (0,028") |
| Spark Gap | 0.7 mm |
| Type | Resistor |
| Center Electrode Projection | Non-Projected |
| Terminal Configuration | Threaded Stud |
| Units | Each |
| Product Name | Spark Plug |
| Style | Standard |
| 1988-1993 | Suzuki | GSX1100F Katana |
| 1989-1992 | Suzuki | GSX-R 1100 |
| 1991-1993 | Suzuki | GSX1100G |
| 1997 | Suzuki | GSF 1200SA Bandit |
| 1997-2005 | Suzuki | GSF1200S Bandit |
| 2001-2003 | Suzuki | GSF 1200 Bandit |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| JR9B | 3188 | In Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Customer Reviews

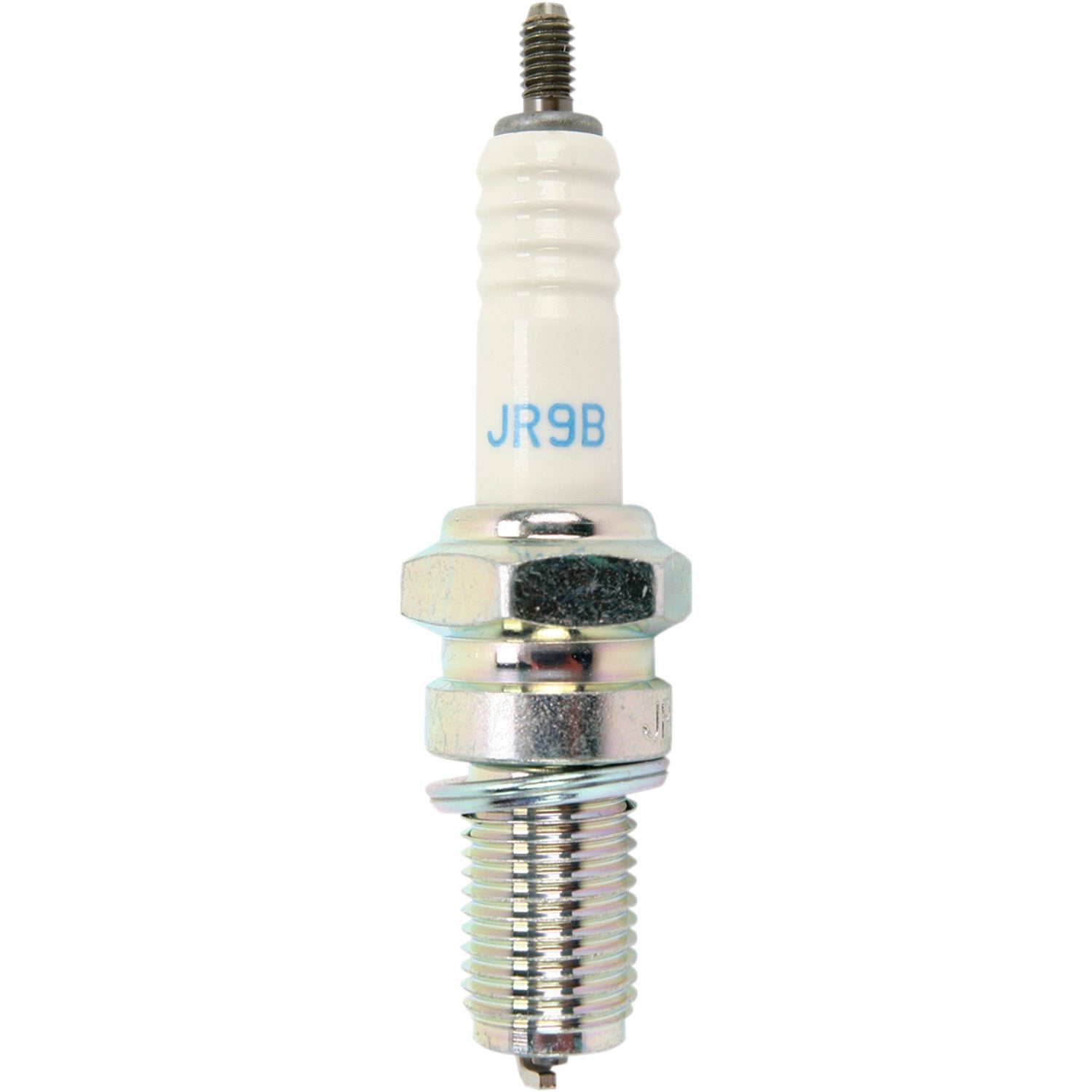

NGK SPARK PLUGS JR9B 3188 Spark Plug — Standard Spark Plug - JR9B
