Ngk

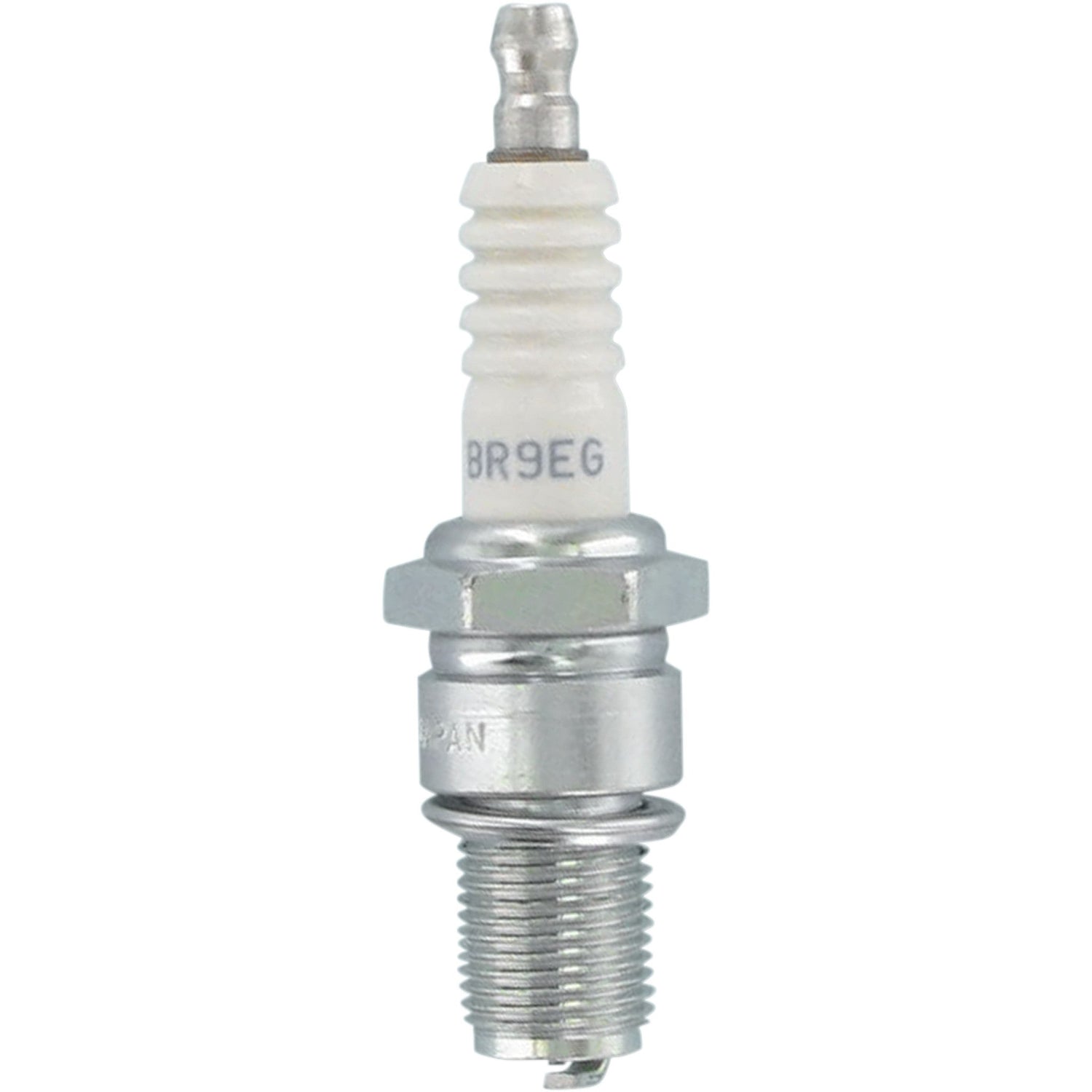

Ngk BR9EG Spark Plug - 3230 For Yamaha Dirt Bikes 1979-2018 | Kawasaki KX 500 / KX 100 / KX 60 1994-2002 | Honda CR125R / CR250R 1981-2007
MPN:
3230
SKU:
BR9EG
Loading...
Ngk
Ngk BR9EG Spark Plug - 3230 For Yamaha Dirt Bikes 1979-2018 | Kawasaki KX 500 / KX 100 / KX 60 1994-2002 | Honda CR125R / CR250R 1981-2007
MPN:
3230
SKU:
BR9EG
SKU:
BR9EG
Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
Triple seals prevent leakage
Corrugated ribs prevent flashover
Copper core aids in heat removal
Specs
Heat Range
9
Hex Size
20.6 mm
Center Electrode Projection
Non-Projected
Riding Style
Off-Road
Thread Reach
19.1 mm
Center Electrode Type
Standard
Electrical Resistance
5k Ohms
Electrode Tip Material
Nickel Alloy
Ground Electrode Configuration
Single
Ground Electrode Shape
Standard
Terminal Configuration
Removable Nut
Model
BR9EG
Type
Resistor
Product Name
Spark Plug
Spark Gap
0,6 mm (0,025")
Spark Gap
0.025"
Style
Standard
Riding Style
Street
Spark Gap
0.6 mm
Units
Each
1976,2005-2013
Husqvarna
TC 125
1979,1989-2018
Yamaha
YZ 125 F
1980-1993
Suzuki
RM 125
1980-1981,1991-1994,2003-2015
Yamaha
YZ 490
1981-2007
Honda
CR125R
1981-2007
Honda
CR250R
1982-1990
Yamaha
YZ490
1983-1984
Kawasaki
KX500
1984-1986
Yamaha
IT200
1986
Yamaha
YZ 80
1987
Yamaha
IT 200
1991
Kawasaki
KX 100
1994-2002
Kawasaki
KX60
1999-2013
Husqvarna
CR125
1999,2002
Husqvarna
SM 125
1999-2001
KTM
200 EXC
2001,2013
Husqvarna
WR125
2002
Husqvarna
SMS 125
2002
Husqvarna
WRE 125
2004
Cagiva
Raptor 125
2014-2020
Husqvarna
TC125
Fitment DisclosureThis quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Regular price
$11.95
Unit price
Shipping calculated at checkout.
Product Details
Features
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Triple seals prevent leakage
- Corrugated ribs prevent flashover
- Copper core aids in heat removal
Specs
| Heat Range | 9 |
| Hex Size | 20.6 mm |
| Center Electrode Projection | Non-Projected |
| Riding Style | Off-Road |
| Thread Reach | 19.1 mm |
| Center Electrode Type | Standard |
| Electrical Resistance | 5k Ohms |
| Electrode Tip Material | Nickel Alloy |
| Ground Electrode Configuration | Single |
| Ground Electrode Shape | Standard |
| Terminal Configuration | Removable Nut |
| Model | BR9EG |
| Type | Resistor |
| Product Name | Spark Plug |
| Spark Gap | 0,6 mm (0,025") |
| Spark Gap | 0.025" |
| Style | Standard |
| Riding Style | Street |
| Spark Gap | 0.6 mm |
| Units | Each |
| 1976,2005-2013 | Husqvarna | TC 125 |
| 1979,1989-2018 | Yamaha | YZ 125 F |
| 1980-1993 | Suzuki | RM 125 |
| 1980-1981,1991-1994,2003-2015 | Yamaha | YZ 490 |
| 1981-2007 | Honda | CR125R |
| 1981-2007 | Honda | CR250R |
| 1982-1990 | Yamaha | YZ490 |
| 1983-1984 | Kawasaki | KX500 |
| 1984-1986 | Yamaha | IT200 |
| 1986 | Yamaha | YZ 80 |
| 1987 | Yamaha | IT 200 |
| 1991 | Kawasaki | KX 100 |
| 1994-2002 | Kawasaki | KX60 |
| 1999-2013 | Husqvarna | CR125 |
| 1999,2002 | Husqvarna | SM 125 |
| 1999-2001 | KTM | 200 EXC |
| 2001,2013 | Husqvarna | WR125 |
| 2002 | Husqvarna | SMS 125 |
| 2002 | Husqvarna | WRE 125 |
| 2004 | Cagiva | Raptor 125 |
| 2014-2020 | Husqvarna | TC125 |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Product Description
Features
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Triple seals prevent leakage
- Corrugated ribs prevent flashover
- Copper core aids in heat removal
Specs
| Heat Range | 9 |
| Hex Size | 20.6 mm |
| Center Electrode Projection | Non-Projected |
| Riding Style | Off-Road |
| Thread Reach | 19.1 mm |
| Center Electrode Type | Standard |
| Electrical Resistance | 5k Ohms |
| Electrode Tip Material | Nickel Alloy |
| Ground Electrode Configuration | Single |
| Ground Electrode Shape | Standard |
| Terminal Configuration | Removable Nut |
| Model | BR9EG |
| Type | Resistor |
| Product Name | Spark Plug |
| Spark Gap | 0,6 mm (0,025") |
| Spark Gap | 0.025" |
| Style | Standard |
| Riding Style | Street |
| Spark Gap | 0.6 mm |
| Units | Each |
| 1976,2005-2013 | Husqvarna | TC 125 |
| 1979,1989-2018 | Yamaha | YZ 125 F |
| 1980-1993 | Suzuki | RM 125 |
| 1980-1981,1991-1994,2003-2015 | Yamaha | YZ 490 |
| 1981-2007 | Honda | CR125R |
| 1981-2007 | Honda | CR250R |
| 1982-1990 | Yamaha | YZ490 |
| 1983-1984 | Kawasaki | KX500 |
| 1984-1986 | Yamaha | IT200 |
| 1986 | Yamaha | YZ 80 |
| 1987 | Yamaha | IT 200 |
| 1991 | Kawasaki | KX 100 |
| 1994-2002 | Kawasaki | KX60 |
| 1999-2013 | Husqvarna | CR125 |
| 1999,2002 | Husqvarna | SM 125 |
| 1999-2001 | KTM | 200 EXC |
| 2001,2013 | Husqvarna | WR125 |
| 2002 | Husqvarna | SMS 125 |
| 2002 | Husqvarna | WRE 125 |
| 2004 | Cagiva | Raptor 125 |
| 2014-2020 | Husqvarna | TC125 |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| BR9EG | 3230 | In Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
