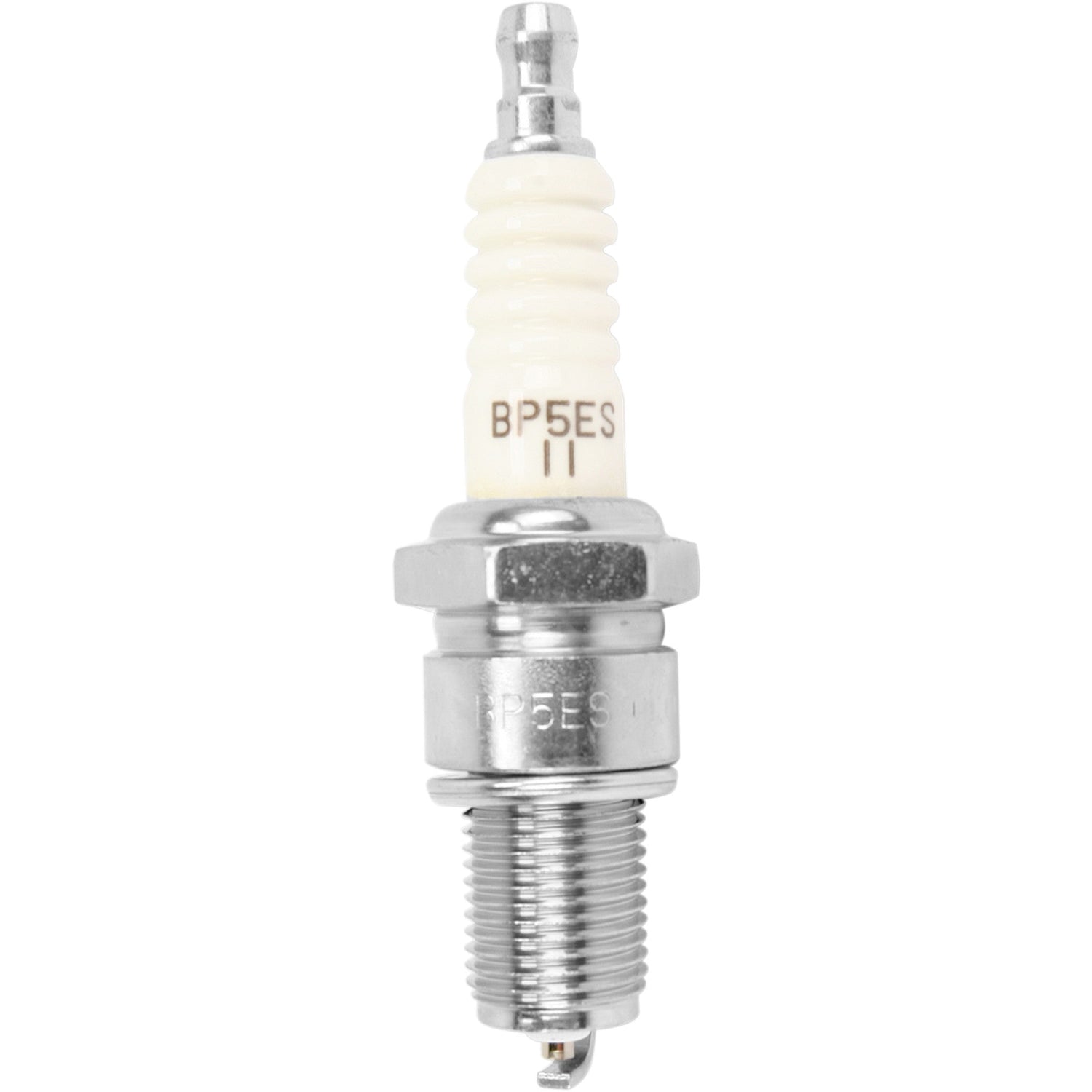

NGK SPARK PLUGS BP5ES-11 7732 Spark Plug — Standard Spark Plug - BP5ES-11

Features

• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
• Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
• Triple seals prevent leakage
• Corrugated ribs prevent flashover
• Copper core aids in heat removal

Specs

Spark Gap	0.043"
Spark Gap	1.1 mm
Type	Non-Resistor
Product Name	Spark Plug
Style	Standard
Electrode Tip Material	Nickel Alloy
Model	BP5ES-11
Ground Electrode Shape	Standard
Heat Range	5
Spark Gap	1,1 mm (0,043")
Center Electrode Projection	Projected
Riding Style	Street
Terminal Configuration	Solid Terminal
Units	Each
Electrical Resistance	-
Hex Size	20.6 mm
Thread Reach	19.1 mm
Center Electrode Type	Standard
Ground Electrode Configuration	Single

Fitment Disclosure

This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
