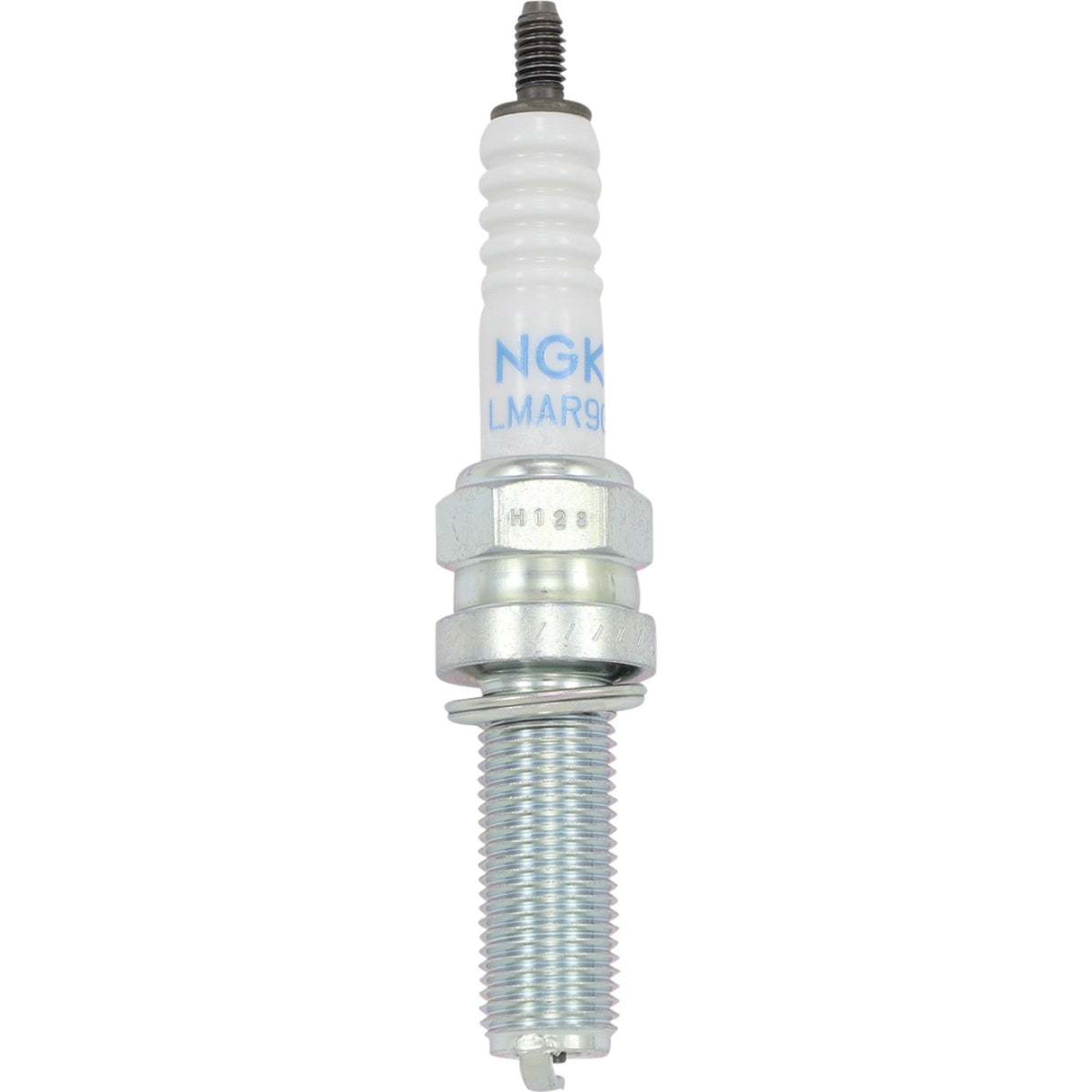

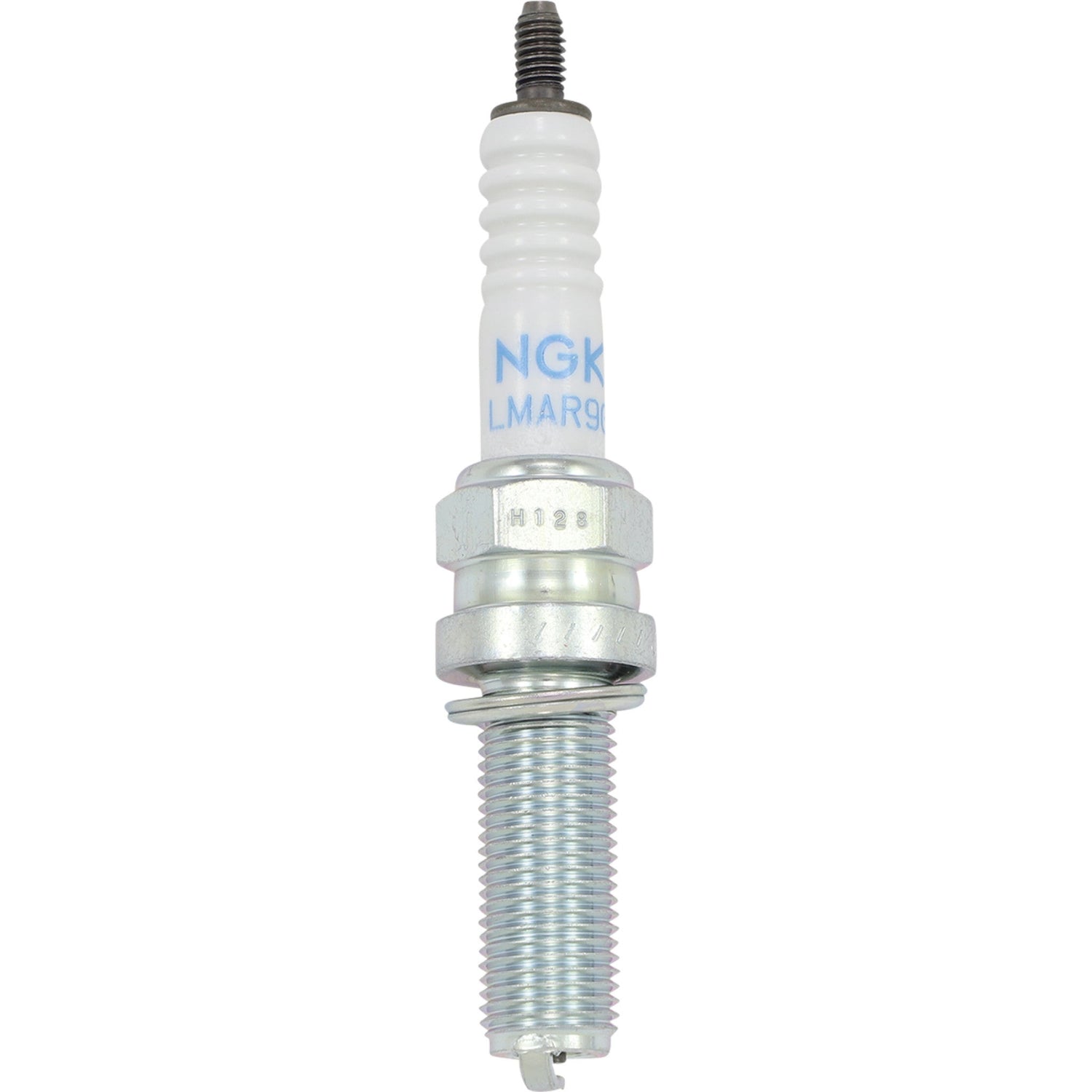

NGK SPARK PLUGS 2103-0509 92222 Spark Plug — Standard Spark Plug - LMAR9G

Features

• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
• Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
• Triple seals prevent leakage
• Corrugated ribs prevent flashover
• Copper core aids in heat removal

Specs

Center Electrode Projection	Non-Projected
Center Electrode Type	Standard
Electrode Tip Material	Nickel Alloy
Riding Style	Street
Heat Range	9
Spark Gap	0,8 mm (0,031")
Terminal Configuration	Threaded Stud
Type	Resistor
Ground Electrode Shape	Standard
Hex Size	14 mm
Model	LMAR9G
Thread Reach	26.5 mm
Spark Gap	0.8 mm
Product Name	Spark Plug
Spark Gap	0.031"
Style	Standard
Electrical Resistance	5k Ohms
Ground Electrode Configuration	Single
Units	Each

Fitment Disclosure

This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
