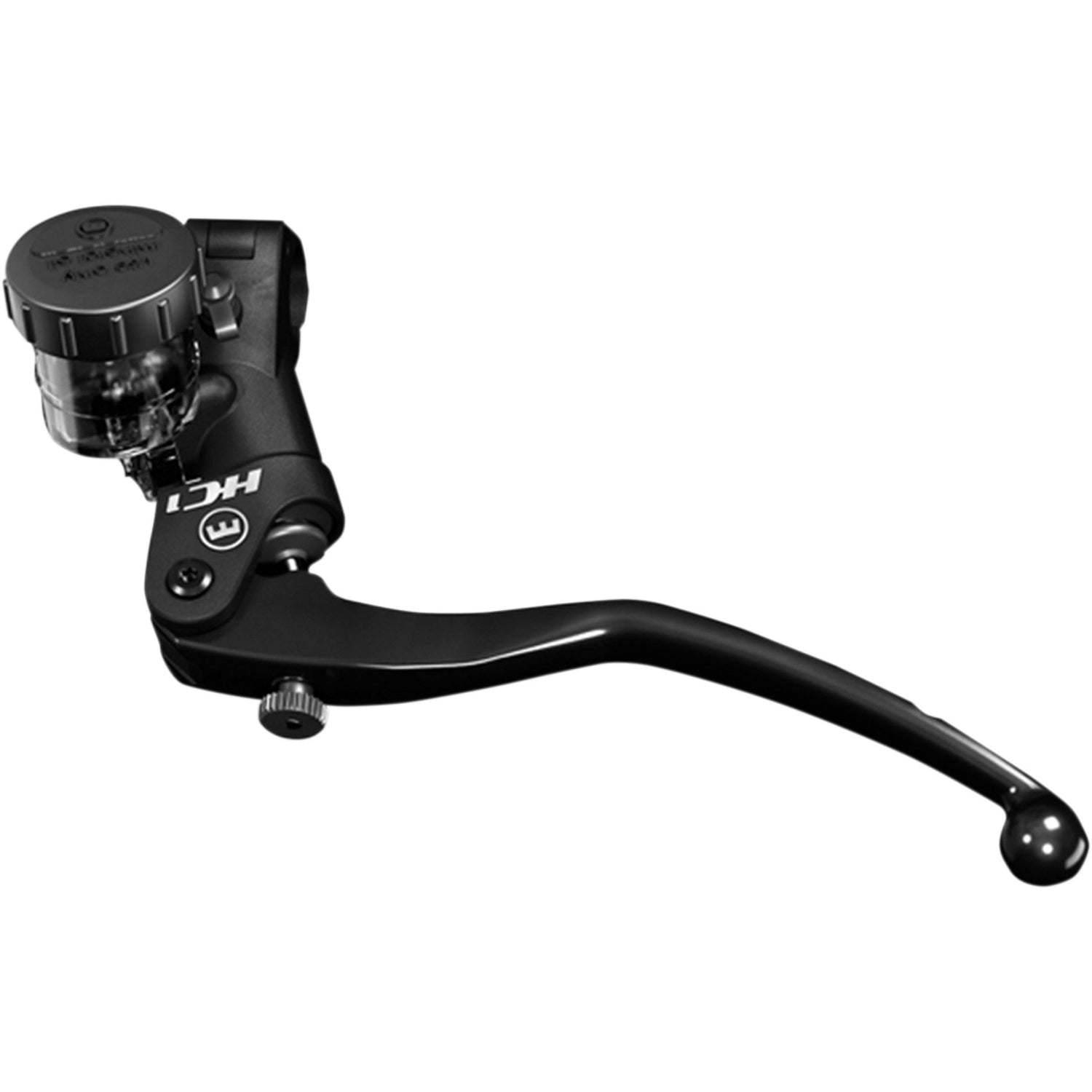

MAGURA 0612-0400 2100489 HC1 Clutch Master Cylinder Assembly Clutch Master Cylinder - HC1 - 13 mm

Features

• Pushrod and cylinder at 70° angle to handlebar results in decreased friction and more direct brake feeling for improved control
• Every ready-to-mount HC1 includes banjo bolt with sealing rings (M10x1), remote reservoir, standard clamp (without mirror mount), brake light or start safety switch, ABE for brake fitments and owner‘s manual
• The master cylinder is supplied with an external reservoir and mounting bracket designed to use minimum space and with smoked glass to optically determine the level and condition of the brake fluid at all times
• Approved for continuous use with all ABS systems without loss of performance due to pressure compensation (ABS-Kickback)
• Rear piston seal has been specially designed to prevent the introduction of air through secondary seal ingress; aadvanced X-Ring seal design will reduce or eliminate this problem common on racing motorcycles at higher RPM

Specs

Clutch Master Cylinder Bore Diameter	13 mm
Actuation	Hydraulic
Type	Clutch
Product Name	Lever Assembly
Clutch Master Cylinder Bore Diameter	13 mm (1/2")
Type	Master Cylinder
Clutch Master Cylinder Bore Diameter	1/2"
Units	Each
Color/Finish	Black
Riding Style	Street
Base Color	Black

Fitment Disclosure

This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
