Hastings

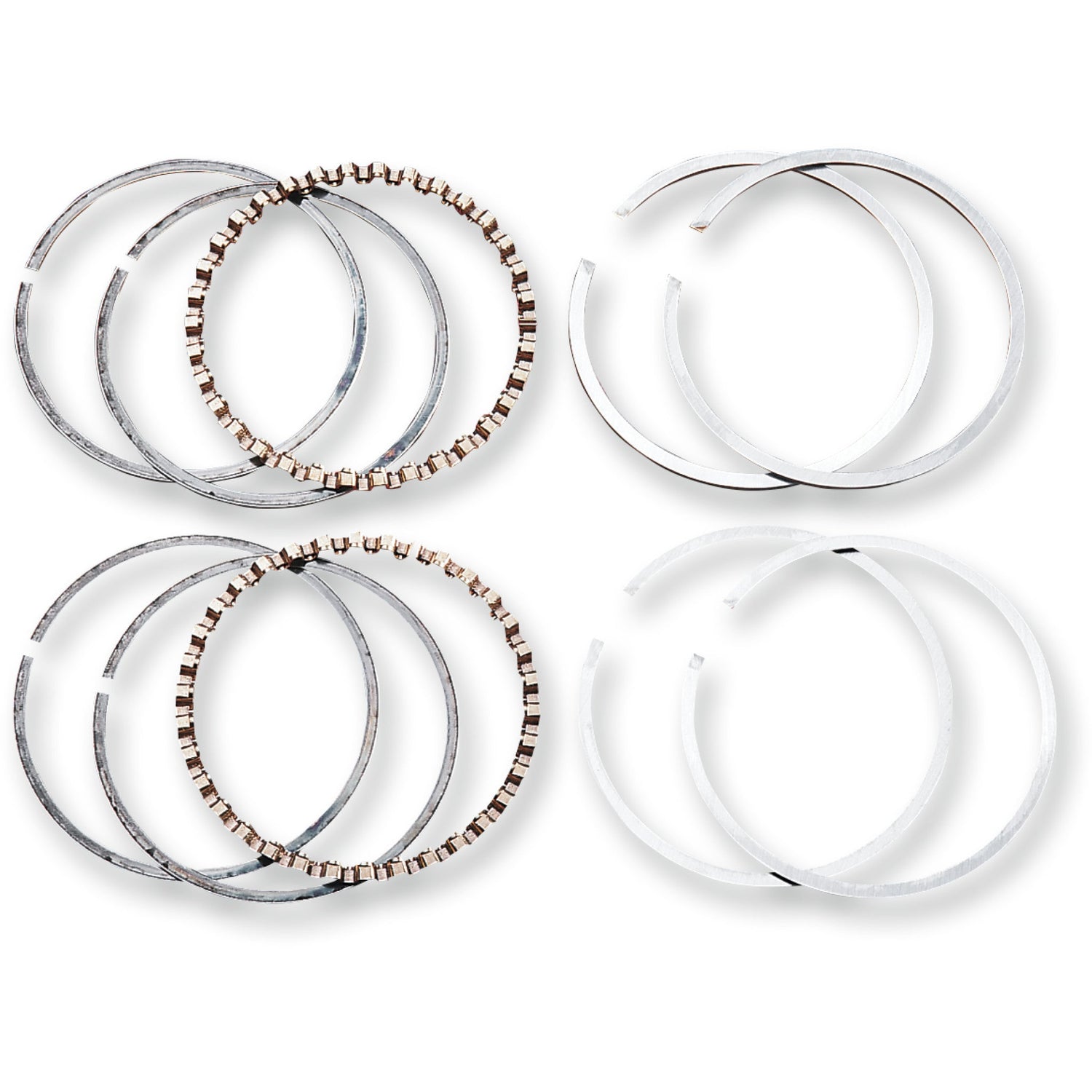

Hastings Piston Ring Set - 2M6198 For Harley Sportster 1986-2003
MPN:
2M6198
SKU:
DS-750850
Loading...
Hastings
Hastings Piston Ring Set - 2M6198 For Harley Sportster 1986-2003
MPN:
2M6198
SKU:
DS-750850
SKU:
DS-750850
Includes top compression rings, second compression rings, and oil control rings
Top Compression Rings are Barrel Face
Helps in the the heat transfer process between the piston and cylinder wall
Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
Second Compression Ring are Napier
Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
Oil Control Rings are Three Piece Flex Vent
Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
Provides uniform pressure through four steel rails and two expanders assuring positive oil control
Made in the USA
Includes enough rings for two pistons (unless noted).
Two rings per groove, except for the rails that will be two rail rings per one expander ring.
Specs
Style
Replacement
Bore Oversize
Standard
Product Name
Piston Ring Set
Riding Style
Street
Bore - Oversize
Standard
Bore Size
3.000"
Ring Material
Moly Coated
Units
Set
Part Notes
For '86-'03 883 CC XL Evolution applications - Sets include enough rings for one piston only. Must order two sets for complete motor.
1986-1995
Harley-Davidson
Sportster 883 Deluxe XLH
1986-2003
Harley-Davidson
Sportster 883 XLH
1987-1998,2002-2003
Harley-Davidson
Sportster 883 Hugger XLH
1999-2003
Harley-Davidson
Sportster 883 Custom XL883C
2002-2003
Harley-Davidson
Sportster 883 Roadster XL883R
Fitment DisclosureThis quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Regular price
$55.95
Unit price
Shipping calculated at checkout.
Product Details
Features
- Includes top compression rings, second compression rings, and oil control rings
- Top Compression Rings are Barrel Face
- Helps in the the heat transfer process between the piston and cylinder wall
- Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
- Second Compression Ring are Napier
- Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
- Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
- Oil Control Rings are Three Piece Flex Vent
- Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
- Provides uniform pressure through four steel rails and two expanders assuring positive oil control
- Made in the USA
- Includes enough rings for two pistons (unless noted).
- Two rings per groove, except for the rails that will be two rail rings per one expander ring.
Specs
| Style | Replacement |
| Bore Oversize | Standard |
| Product Name | Piston Ring Set |
| Riding Style | Street |
| Bore - Oversize | Standard |
| Bore Size | 3.000" |
| Ring Material | Moly Coated |
| Units | Set |
Part Notes
- For '86-'03 883 CC XL Evolution applications - Sets include enough rings for one piston only. Must order two sets for complete motor.
| 1986-1995 | Harley-Davidson | Sportster 883 Deluxe XLH |
| 1986-2003 | Harley-Davidson | Sportster 883 XLH |
| 1987-1998,2002-2003 | Harley-Davidson | Sportster 883 Hugger XLH |
| 1999-2003 | Harley-Davidson | Sportster 883 Custom XL883C |
| 2002-2003 | Harley-Davidson | Sportster 883 Roadster XL883R |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Product Description
Features
- Includes top compression rings, second compression rings, and oil control rings
- Top Compression Rings are Barrel Face
- Helps in the the heat transfer process between the piston and cylinder wall
- Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
- Second Compression Ring are Napier
- Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
- Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
- Oil Control Rings are Three Piece Flex Vent
- Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
- Provides uniform pressure through four steel rails and two expanders assuring positive oil control
- Made in the USA
- Includes enough rings for two pistons (unless noted).
- Two rings per groove, except for the rails that will be two rail rings per one expander ring.
Specs
| Style | Replacement |
| Bore Oversize | Standard |
| Product Name | Piston Ring Set |
| Riding Style | Street |
| Bore - Oversize | Standard |
| Bore Size | 3.000" |
| Ring Material | Moly Coated |
| Units | Set |
Part Notes
- For '86-'03 883 CC XL Evolution applications - Sets include enough rings for one piston only. Must order two sets for complete motor.
| 1986-1995 | Harley-Davidson | Sportster 883 Deluxe XLH |
| 1986-2003 | Harley-Davidson | Sportster 883 XLH |
| 1987-1998,2002-2003 | Harley-Davidson | Sportster 883 Hugger XLH |
| 1999-2003 | Harley-Davidson | Sportster 883 Custom XL883C |
| 2002-2003 | Harley-Davidson | Sportster 883 Roadster XL883R |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| DS-750850 | 2M6198 | In Stock |
