HASTINGS DS-750694 2M4941010 Replacement Piston Rings Piston Rings - 3.875" + 0.010" - 95"/103" Big Bore - Twin Cam
MPN:
2M4941010
SKU:
DS-750694
Loading...
Hastings
HASTINGS DS-750694 2M4941010 Replacement Piston Rings Piston Rings - 3.875" + 0.010" - 95"/103" Big Bore - Twin Cam
MPN:
2M4941010
SKU:
DS-750694
SKU:
DS-750694

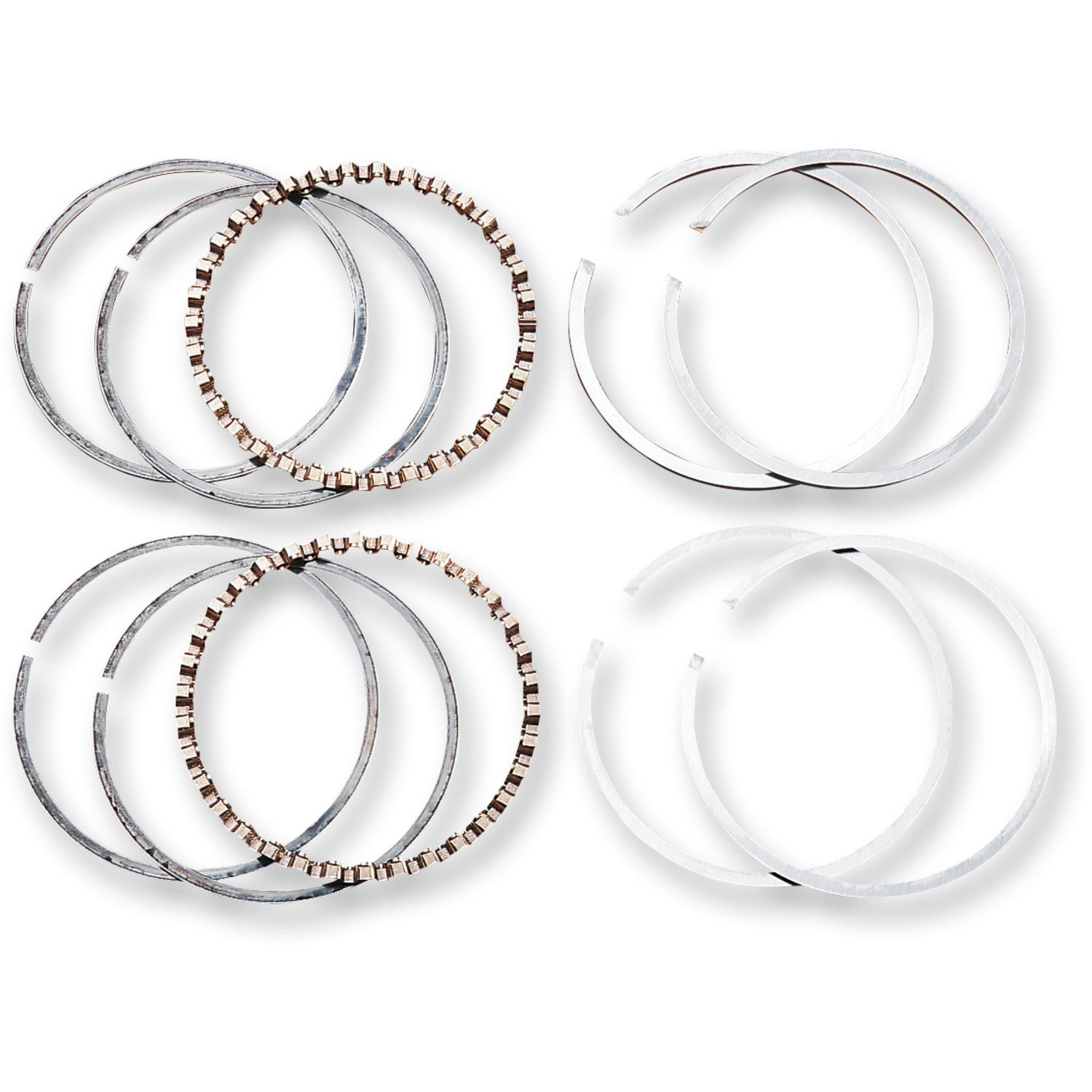

Includes top compression rings, second compression rings, and oil control rings
Top Compression Rings are Barrel Face
Helps in the the heat transfer process between the piston and cylinder wall
Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
Second Compression Ring are Napier
Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
Oil Control Rings are Three Piece Flex Vent
Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
Provides uniform pressure through four steel rails and two expanders assuring positive oil control
Made in the USA
Includes enough rings for two pistons (unless noted).
Two rings per groove, except for the rails that will be two rail rings per one expander ring.
Specs
Bore Oversize
+0.010"
Bore - Oversize
+0,010"
Product Name
Piston Ring Set
Riding Style
Street
Style
Replacement
Bore Size
3.875"
Units
Set
Ring Material
Moly Coated
2012-2017
Harley-Davidson
Dyna Wide Glide FXDWG
2012-2016
Harley-Davidson
Electra Glide Ultra Classic FLHTCU
2012-2017
Harley-Davidson
Softail Deluxe FLSTN
2012-2017
Harley-Davidson
Softail Fat Boy FLSTF
2012-2016
Harley-Davidson
Street Glide FLHX/FLHXS
2014-2017
Harley-Davidson
Dyna Low Rider FXDL
2014-2017
Harley-Davidson
Street Bob FXDB
Fitment DisclosureThis quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Regular price
$97.95
Unit price
Shipping calculated at checkout.
Product Details
Features
- Includes top compression rings, second compression rings, and oil control rings
- Top Compression Rings are Barrel Face
- Helps in the the heat transfer process between the piston and cylinder wall
- Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
- Second Compression Ring are Napier
- Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
- Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
- Oil Control Rings are Three Piece Flex Vent
- Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
- Provides uniform pressure through four steel rails and two expanders assuring positive oil control
- Made in the USA
- Includes enough rings for two pistons (unless noted).
- Two rings per groove, except for the rails that will be two rail rings per one expander ring.
Specs
| Bore Oversize | +0.010" |
| Bore - Oversize | +0,010" |
| Product Name | Piston Ring Set |
| Riding Style | Street |
| Style | Replacement |
| Bore Size | 3.875" |
| Units | Set |
| Ring Material | Moly Coated |
| 2012-2017 | Harley-Davidson | Dyna Wide Glide FXDWG |
| 2012-2016 | Harley-Davidson | Electra Glide Ultra Classic FLHTCU |
| 2012-2017 | Harley-Davidson | Softail Deluxe FLSTN |
| 2012-2017 | Harley-Davidson | Softail Fat Boy FLSTF |
| 2012-2016 | Harley-Davidson | Street Glide FLHX/FLHXS |
| 2014-2017 | Harley-Davidson | Dyna Low Rider FXDL |
| 2014-2017 | Harley-Davidson | Street Bob FXDB |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Product Description
Features
- Includes top compression rings, second compression rings, and oil control rings
- Top Compression Rings are Barrel Face
- Helps in the the heat transfer process between the piston and cylinder wall
- Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
- Second Compression Ring are Napier
- Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
- Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
- Oil Control Rings are Three Piece Flex Vent
- Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
- Provides uniform pressure through four steel rails and two expanders assuring positive oil control
- Made in the USA
- Includes enough rings for two pistons (unless noted).
- Two rings per groove, except for the rails that will be two rail rings per one expander ring.
Specs
| Bore Oversize | +0.010" |
| Bore - Oversize | +0,010" |
| Product Name | Piston Ring Set |
| Riding Style | Street |
| Style | Replacement |
| Bore Size | 3.875" |
| Units | Set |
| Ring Material | Moly Coated |
| 2012-2017 | Harley-Davidson | Dyna Wide Glide FXDWG |
| 2012-2016 | Harley-Davidson | Electra Glide Ultra Classic FLHTCU |
| 2012-2017 | Harley-Davidson | Softail Deluxe FLSTN |
| 2012-2017 | Harley-Davidson | Softail Fat Boy FLSTF |
| 2012-2016 | Harley-Davidson | Street Glide FLHX/FLHXS |
| 2014-2017 | Harley-Davidson | Dyna Low Rider FXDL |
| 2014-2017 | Harley-Davidson | Street Bob FXDB |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| DS-750694 | 2M4941010 | In Stock |
