Hastings Piston Ring Set - 7003010 For Harley Sportster 1000 1985
Regular price
$74.95
Unit price
Unavailable
Features

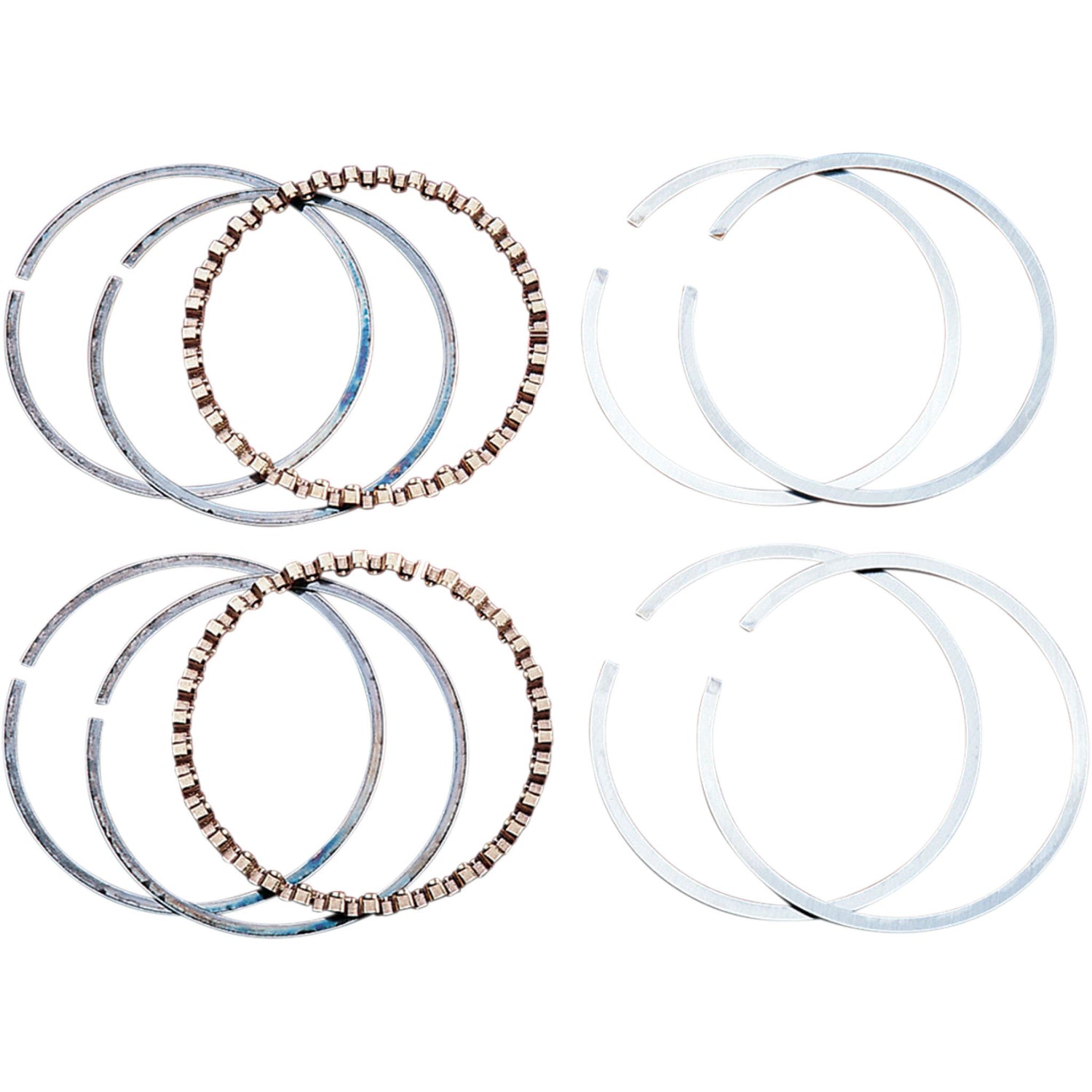

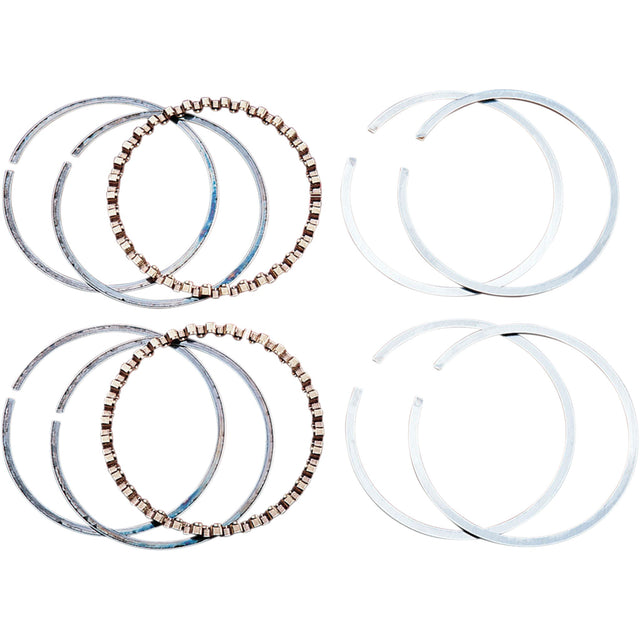

- Includes top compression rings, second compression rings, and oil control rings
- Top Compression Ring is Torsional
- Increases gas side sealing and better oil control
- May have barrel or straight face
- Second Compression Ring is Torsional
- This twist ring creates an OD bottom side scraping edge that helps wipe oil off the cylinder wall and into the crankcase
- Sharp edge contact helps speed break-in
- Oil Control Rings are Three Piece Flex Vent
- Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
- Provides uniform pressure through four steel rails and two expanders assuring positive oil control
- Made in the USA
- Includes enough rings for two pistons.
- Two rings per groove, except for the rails that will be two rail rings per one expander ring.
Specs
| Riding Style | Street |
| Units | Set |
| Bore Oversize | +0.010" |
| Bore Size | 3.188" |
| Style | Replacement |
| Bore - Oversize | +0,010" |
| Ring Material | Cast |
| Product Name | Piston Ring Set |
Part Notes
- Kit Includes:
- • 2x Top Compression Rings
- • 2x Second Compression Rings
- • 2x Expander Rings
- • 4x Steel Rails
| 1985 | Harley-Davidson | Sportster 1000 XLH |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Payment & Security
