Hastings
Hastings Piston Ring Set - 2C523225 For Harley Softail Fat Boy 114 / Softail Heritage Classic 114 / 114 / Softail Street Bob 114 2018-2024
MPN:
2C523225
SKU:
0912-0964
Loading...
Hastings
Hastings Piston Ring Set - 2C523225 For Harley Softail Fat Boy 114 / Softail Heritage Classic 114 / 114 / Softail Street Bob 114 2018-2024
MPN:
2C523225
SKU:
0912-0964
SKU:
0912-0964

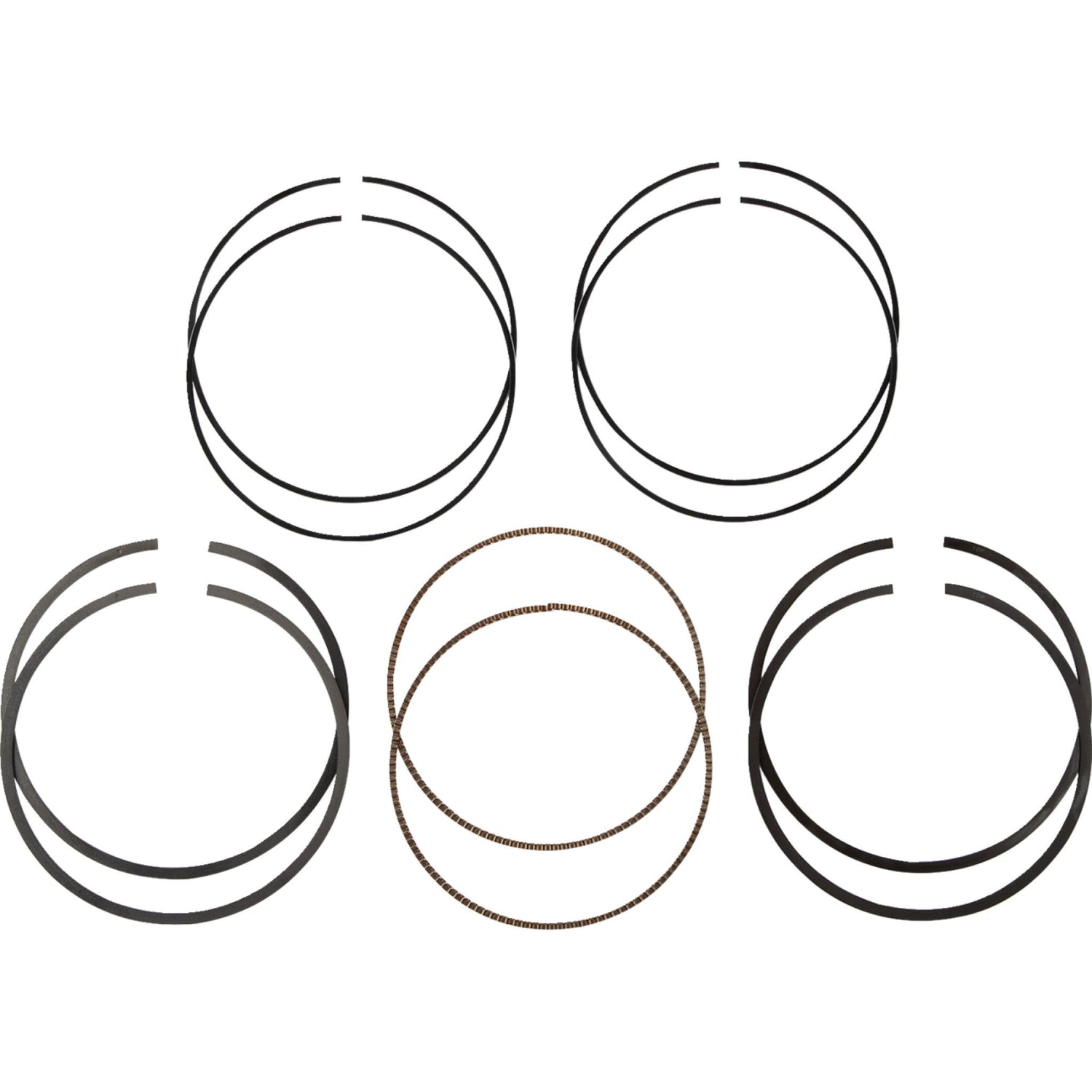

Includes top compression rings, second compression rings, and oil control rings
Top compression rings are Barrel Face
Coated using PVD (Physical Vapor Deposition) process
Helps in the the heat transfer process between the piston and cylinder wall
Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
Second compression rings are Napier
Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
Oil control rings are Three Piece Flex Vent
Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
Provides uniform pressure through four steel rails and two expanders assuring positive oil control
Made in the USA
Includes enough rings for two pistons.
Two rings per groove, except for the rails that will be two rail rings per one expander ring.
Specs
Piston Size
+0.010"
Type
Replacement
Units
Set
Product Name
Piston Ring Set
Riding Style
Street
Bore Size
4.000"
Displacement
114"
Part Notes
Kit Includes:
• 2x Top Compression Rings
• 2x Second Compression Rings
• 2x Expander Rings
• 4x Steel Rails
2018-2024
Harley-Davidson
Softail Fat Boy 114 FLFBS
2018-2024
Harley-Davidson
Softail Heritage Classic 114 FLHCS
2019-2020
Harley-Davidson
FXDR 114 (FXDRS)
2021-2023
Harley-Davidson
Softail Street Bob 114 FXBBS
Fitment DisclosureThis quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
