Feuling Parts
Feuling Parts Reaper Camchest Kit - 7273ST For Harley Touring 2017-2026
MPN:
7273ST
SKU:
0925-1623
Loading...
Feuling Parts
Feuling Parts Reaper Camchest Kit - 7273ST For Harley Touring 2017-2026
MPN:
7273ST
SKU:
0925-1623
SKU:
0925-1623

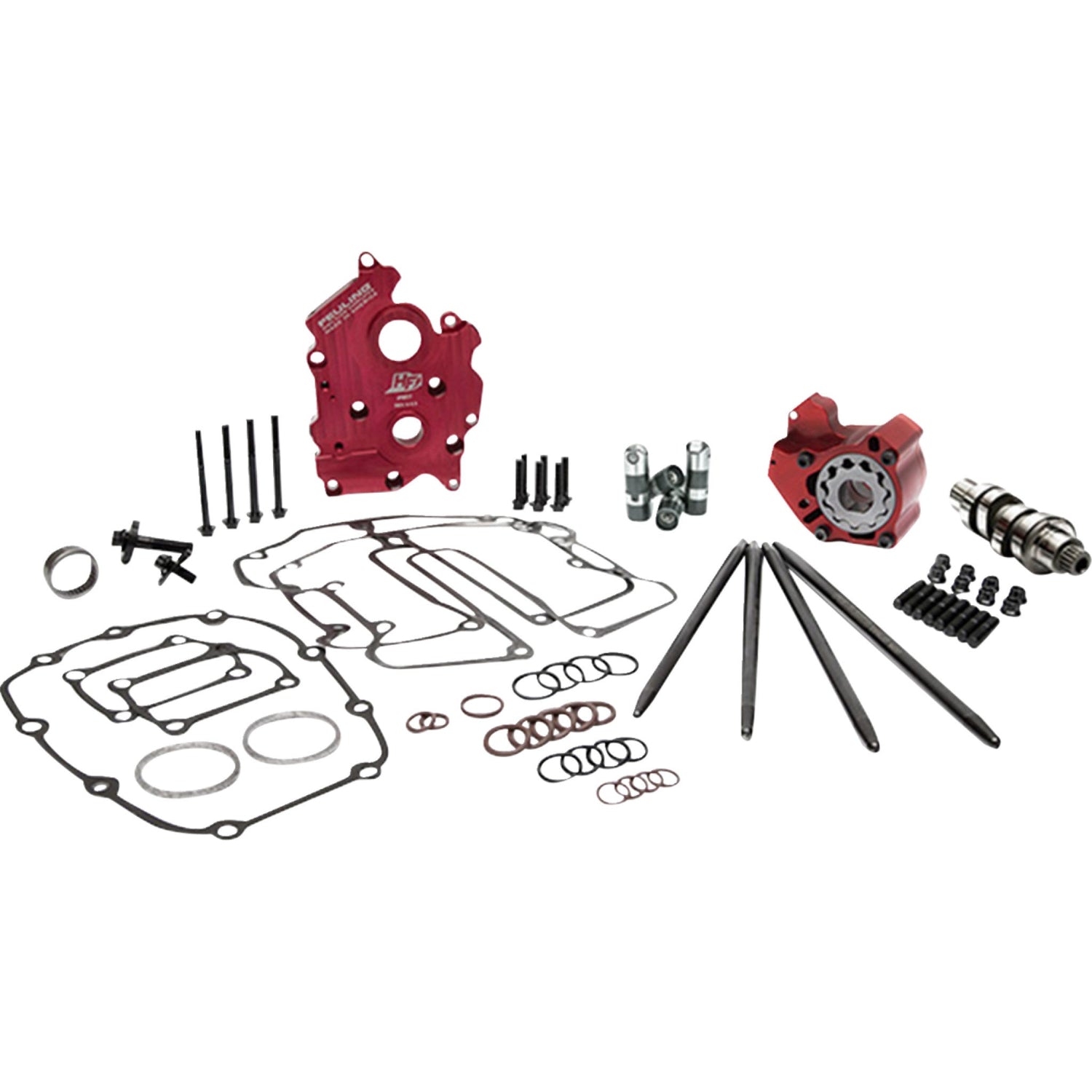

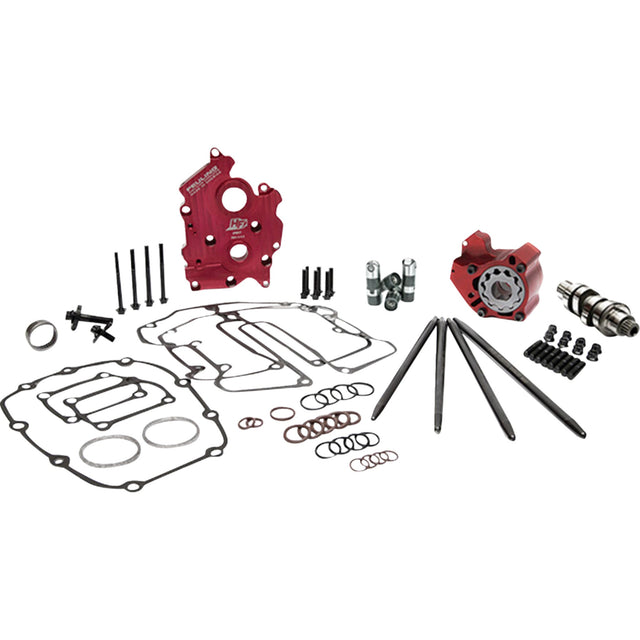

487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series® Sort Travel Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
487 Reaper Camshaft
Bolt-in
Chain Drive
Camshaft for 114" and 117" engine
Responds very well to increased bore and or compression
Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
RPM range 2,250 - 6,100
38° overlap
Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
Cam Installation Kit
Includes cam bearing, cam/crank hardware and gasket/O-ring kit
Race Series® Short Travel Lifters
Short travel hydraulic roller lifters, standard OD (0.8420-0.8423)
Designed with 0.115 of total travel
One Piece Pushrod
HP+ 0.165 wall, +0.040 longer
Heavy duty 7/16" diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
Race Series® Oil Pump
Increase oil pressure, scavenge volume and engine oil flow
30% more pressure gear volume over stock
53% more scavenge gear volume over stock
42% more scavenge volume with port sizing, matched passages and holes to the engine case
46% more oil volume to the crankshaft and connecting rod bearing
15°- 25° cooler engine temperatures
15°- 30° cooler oil temperatures
10-30 more PSI of oil pressure
Reduces wet sumping, blow by and oily air cleaners
Magnets in oil pump to help protect gears and pressure relief valve
Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque are achieved.
FEULING test results show a 50% reduction of engine sump oil level.
High Flow Camplate
Bolts into stock location
Billet 7075 aluminum
Made in the USA
Feuling does not recommend tuning beyond stock emissions standards.
Specs
Model
Reaper
Exhaust Open
44°
Intake Open
20.5°
Exhaust Lift at TDC
0.146"
Grind
487 Series
Intake Duration
237°
Intake Lift at TDC
0.180"
Intake Close
37°
Riding Style
Street
Exhaust Duration
241.5°
Features
Short Travel Lifters
Exhaust Close
17.5°
Product Name
Camchest Kit
Type
Chain Drive
Units
Kit
Exhaust Lobe Centerline
103.25°
Application
Water Cooled
Exhaust Lift
0.487"
Intake Lift
0.478"
Intake Lobe Centerline
98.5°
Part Notes
Not for VVT water cooled engines.
Kit Includes:
• 487 Reaper Chain Drive Camshaft
• Cam Installation Kit
• Race Series® Short Travel Lifters
• One Piece HP+® Pushrods
• Race Series® Oil Pump
• High Flow Camplate
• ARP Rocker Studs and Nuts
• Camplate/Oil Pump Fasteners
Regular price
$2,069.95
Unit price
Shipping calculated at checkout.
Product Details
Features
- 487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series® Sort Travel Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
- 487 Reaper Camshaft
- Bolt-in
- Chain Drive
- Camshaft for 114" and 117" engine
- Responds very well to increased bore and or compression
- Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
- RPM range 2,250 - 6,100
- 38° overlap
- Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
- Cam Installation Kit
- Includes cam bearing, cam/crank hardware and gasket/O-ring kit
- Race Series® Short Travel Lifters
- Short travel hydraulic roller lifters, standard OD (0.8420-0.8423)
- Designed with 0.115 of total travel
- One Piece Pushrod
- HP+ 0.165 wall, +0.040 longer
- Heavy duty 7/16" diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
- Race Series® Oil Pump
- Increase oil pressure, scavenge volume and engine oil flow
- 30% more pressure gear volume over stock
- 53% more scavenge gear volume over stock
- 42% more scavenge volume with port sizing, matched passages and holes to the engine case
- 46% more oil volume to the crankshaft and connecting rod bearing
- 15°- 25° cooler engine temperatures
- 15°- 30° cooler oil temperatures
- 10-30 more PSI of oil pressure
- Reduces wet sumping, blow by and oily air cleaners
- Magnets in oil pump to help protect gears and pressure relief valve
- Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque are achieved.
- FEULING test results show a 50% reduction of engine sump oil level.
- High Flow Camplate
- Bolts into stock location
- Billet 7075 aluminum
- Made in the USA
- Feuling does not recommend tuning beyond stock emissions standards.
Specs
| Model | Reaper |
| Exhaust Open | 44° |
| Intake Open | 20.5° |
| Exhaust Lift at TDC | 0.146" |
| Grind | 487 Series |
| Intake Duration | 237° |
| Intake Lift at TDC | 0.180" |
| Intake Close | 37° |
| Riding Style | Street |
| Exhaust Duration | 241.5° |
| Features | Short Travel Lifters |
| Exhaust Close | 17.5° |
| Product Name | Camchest Kit |
| Type | Chain Drive |
| Units | Kit |
| Exhaust Lobe Centerline | 103.25° |
| Application | Water Cooled |
| Exhaust Lift | 0.487" |
| Intake Lift | 0.478" |
| Intake Lobe Centerline | 98.5° |
Part Notes
- Not for VVT water cooled engines.
- Kit Includes:
- • 487 Reaper Chain Drive Camshaft
- • Cam Installation Kit
- • Race Series® Short Travel Lifters
- • One Piece HP+® Pushrods
- • Race Series® Oil Pump
- • High Flow Camplate
- • ARP Rocker Studs and Nuts
- • Camplate/Oil Pump Fasteners
Product Description
Features
- 487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series® Sort Travel Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
- 487 Reaper Camshaft
- Bolt-in
- Chain Drive
- Camshaft for 114" and 117" engine
- Responds very well to increased bore and or compression
- Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
- RPM range 2,250 - 6,100
- 38° overlap
- Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
- Cam Installation Kit
- Includes cam bearing, cam/crank hardware and gasket/O-ring kit
- Race Series® Short Travel Lifters
- Short travel hydraulic roller lifters, standard OD (0.8420-0.8423)
- Designed with 0.115 of total travel
- One Piece Pushrod
- HP+ 0.165 wall, +0.040 longer
- Heavy duty 7/16" diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
- Race Series® Oil Pump
- Increase oil pressure, scavenge volume and engine oil flow
- 30% more pressure gear volume over stock
- 53% more scavenge gear volume over stock
- 42% more scavenge volume with port sizing, matched passages and holes to the engine case
- 46% more oil volume to the crankshaft and connecting rod bearing
- 15°- 25° cooler engine temperatures
- 15°- 30° cooler oil temperatures
- 10-30 more PSI of oil pressure
- Reduces wet sumping, blow by and oily air cleaners
- Magnets in oil pump to help protect gears and pressure relief valve
- Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque are achieved.
- FEULING test results show a 50% reduction of engine sump oil level.
- High Flow Camplate
- Bolts into stock location
- Billet 7075 aluminum
- Made in the USA
- Feuling does not recommend tuning beyond stock emissions standards.
Specs
| Model | Reaper |
| Exhaust Open | 44° |
| Intake Open | 20.5° |
| Exhaust Lift at TDC | 0.146" |
| Grind | 487 Series |
| Intake Duration | 237° |
| Intake Lift at TDC | 0.180" |
| Intake Close | 37° |
| Riding Style | Street |
| Exhaust Duration | 241.5° |
| Features | Short Travel Lifters |
| Exhaust Close | 17.5° |
| Product Name | Camchest Kit |
| Type | Chain Drive |
| Units | Kit |
| Exhaust Lobe Centerline | 103.25° |
| Application | Water Cooled |
| Exhaust Lift | 0.487" |
| Intake Lift | 0.478" |
| Intake Lobe Centerline | 98.5° |
Part Notes
- Not for VVT water cooled engines.
- Kit Includes:
- • 487 Reaper Chain Drive Camshaft
- • Cam Installation Kit
- • Race Series® Short Travel Lifters
- • One Piece HP+® Pushrods
- • Race Series® Oil Pump
- • High Flow Camplate
- • ARP Rocker Studs and Nuts
- • Camplate/Oil Pump Fasteners
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0925-1623 | 7273ST | In Stock |
