Feuling Parts
Feuling Parts Reaper Camchest Kit - 7272 For Harley Motorcycles 2017-2026
MPN:
7272
SKU:
0925-1620
Loading...
Feuling Parts
Feuling Parts Reaper Camchest Kit - 7272 For Harley Motorcycles 2017-2026
MPN:
7272
SKU:
0925-1620
SKU:
0925-1620

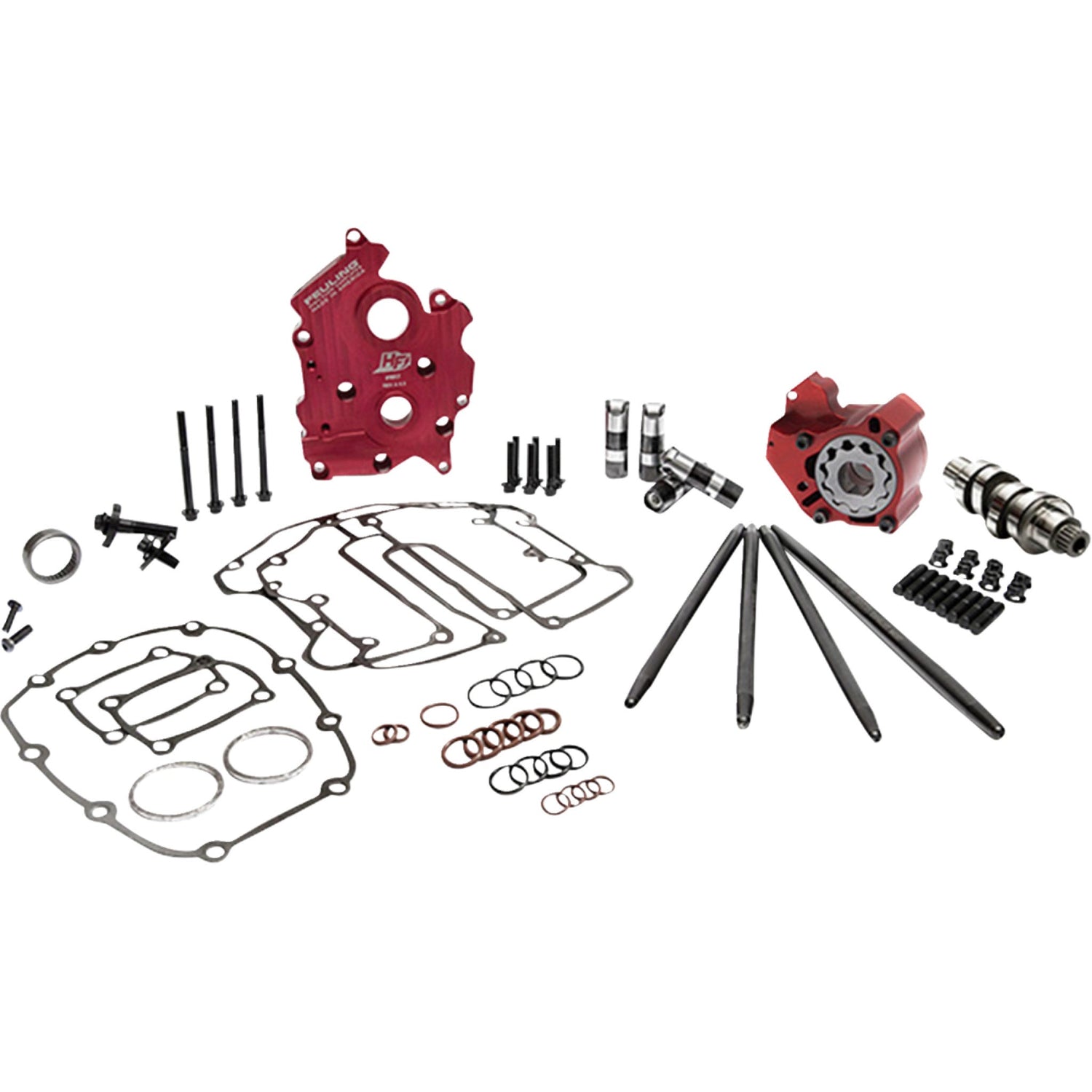

487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
487 Reaper Camshaft
Chain Drive
38° overlap
RPM range 2,250 - 6,100
Camshaft for 114" and 117" engine
Responds very well to increased bore and or compression
Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio
Cam Installation Kit
Includes cam bearing, cam/crank hardware and gasket/O-ring kit
Race Series® Lifters
Full-travel hydraulic lifters made from machined steel designed with 0.200" of travel
One Piece Pushrod
HP+ heavy duty 7/16 diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
Race Series® Oil Pump
High flow 2.250 Chrome Moly gerotor gears
27% more pressure and scavenge gear volume over stock
42% more scavenge volume with matched passages, port sizing and holes to the engine case
46% more oil volume to the crankshaft and connecting rod bearing
15°- 25° cooler engine temperatures
15°- 30° cooler oil temperatures
10-30 more PSI of oil pressure
Reduces wet sumping, blow by and oily air cleaners
Magnets to help protect gears and pressure relief valve
FEULING test results show a 50% reduction of engine sump oil level.
High Flow Camplate
Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque can be achieved
Made in the USA
Feuling does not recommend tuning beyond stock emissions standards.
Specs
Exhaust Lift at TDC
0.146"
Exhaust Lift
0.487"
Intake Lift at TDC
0.180"
Riding Style
Street
Application
Oil Cooled
Exhaust Close
17.5°
Exhaust Lobe Centerline
103.25°
Intake Lift
0.478"
Units
Kit
Intake Duration
237°
Type
Chain Drive
Intake Lobe Centerline
98.5°
Model
Reaper
Product Name
Camchest Kit
Grind
487 Series
Intake Close
37°
Intake Open
20.5°
Exhaust Duration
241.5°
Exhaust Open
44°
Part Notes
Kit Includes:
• 487 Reaper Camshaft
• HP+ Pushrods
• Race Series® Lifters
• High Flow Camplate
• Race Series® Oil Pump
• Cam Installation Kit
• ARP Rocker Studs and Nuts
• Camplate/Oil Pump Fasteners
Regular price
$2,049.95
Unit price
Shipping calculated at checkout.
Product Details
Features
- 487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
- 487 Reaper Camshaft
- Chain Drive
- 38° overlap
- RPM range 2,250 - 6,100
- Camshaft for 114" and 117" engine
- Responds very well to increased bore and or compression
- Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
- Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio
- Cam Installation Kit
- Includes cam bearing, cam/crank hardware and gasket/O-ring kit
- Race Series® Lifters
- Full-travel hydraulic lifters made from machined steel designed with 0.200" of travel
- One Piece Pushrod
- HP+ heavy duty 7/16 diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
- Race Series® Oil Pump
- High flow 2.250 Chrome Moly gerotor gears
- 27% more pressure and scavenge gear volume over stock
- 42% more scavenge volume with matched passages, port sizing and holes to the engine case
- 46% more oil volume to the crankshaft and connecting rod bearing
- 15°- 25° cooler engine temperatures
- 15°- 30° cooler oil temperatures
- 10-30 more PSI of oil pressure
- Reduces wet sumping, blow by and oily air cleaners
- Magnets to help protect gears and pressure relief valve
- FEULING test results show a 50% reduction of engine sump oil level.
- High Flow Camplate
- Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque can be achieved
- Made in the USA
- Feuling does not recommend tuning beyond stock emissions standards.
Specs
| Exhaust Lift at TDC | 0.146" |
| Exhaust Lift | 0.487" |
| Intake Lift at TDC | 0.180" |
| Riding Style | Street |
| Application | Oil Cooled |
| Exhaust Close | 17.5° |
| Exhaust Lobe Centerline | 103.25° |
| Intake Lift | 0.478" |
| Units | Kit |
| Intake Duration | 237° |
| Type | Chain Drive |
| Intake Lobe Centerline | 98.5° |
| Model | Reaper |
| Product Name | Camchest Kit |
| Grind | 487 Series |
| Intake Close | 37° |
| Intake Open | 20.5° |
| Exhaust Duration | 241.5° |
| Exhaust Open | 44° |
Part Notes
- Kit Includes:
- • 487 Reaper Camshaft
- • HP+ Pushrods
- • Race Series® Lifters
- • High Flow Camplate
- • Race Series® Oil Pump
- • Cam Installation Kit
- • ARP Rocker Studs and Nuts
- • Camplate/Oil Pump Fasteners
Product Description
Features
- 487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
- 487 Reaper Camshaft
- Chain Drive
- 38° overlap
- RPM range 2,250 - 6,100
- Camshaft for 114" and 117" engine
- Responds very well to increased bore and or compression
- Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
- Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio
- Cam Installation Kit
- Includes cam bearing, cam/crank hardware and gasket/O-ring kit
- Race Series® Lifters
- Full-travel hydraulic lifters made from machined steel designed with 0.200" of travel
- One Piece Pushrod
- HP+ heavy duty 7/16 diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
- Race Series® Oil Pump
- High flow 2.250 Chrome Moly gerotor gears
- 27% more pressure and scavenge gear volume over stock
- 42% more scavenge volume with matched passages, port sizing and holes to the engine case
- 46% more oil volume to the crankshaft and connecting rod bearing
- 15°- 25° cooler engine temperatures
- 15°- 30° cooler oil temperatures
- 10-30 more PSI of oil pressure
- Reduces wet sumping, blow by and oily air cleaners
- Magnets to help protect gears and pressure relief valve
- FEULING test results show a 50% reduction of engine sump oil level.
- High Flow Camplate
- Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque can be achieved
- Made in the USA
- Feuling does not recommend tuning beyond stock emissions standards.
Specs
| Exhaust Lift at TDC | 0.146" |
| Exhaust Lift | 0.487" |
| Intake Lift at TDC | 0.180" |
| Riding Style | Street |
| Application | Oil Cooled |
| Exhaust Close | 17.5° |
| Exhaust Lobe Centerline | 103.25° |
| Intake Lift | 0.478" |
| Units | Kit |
| Intake Duration | 237° |
| Type | Chain Drive |
| Intake Lobe Centerline | 98.5° |
| Model | Reaper |
| Product Name | Camchest Kit |
| Grind | 487 Series |
| Intake Close | 37° |
| Intake Open | 20.5° |
| Exhaust Duration | 241.5° |
| Exhaust Open | 44° |
Part Notes
- Kit Includes:
- • 487 Reaper Camshaft
- • HP+ Pushrods
- • Race Series® Lifters
- • High Flow Camplate
- • Race Series® Oil Pump
- • Cam Installation Kit
- • ARP Rocker Studs and Nuts
- • Camplate/Oil Pump Fasteners
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0925-1620 | 7272 | In Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
