Feuling Parts Reaper Camshaft Kit - 1462 For Harley Motorcycles 2017-2026

Features

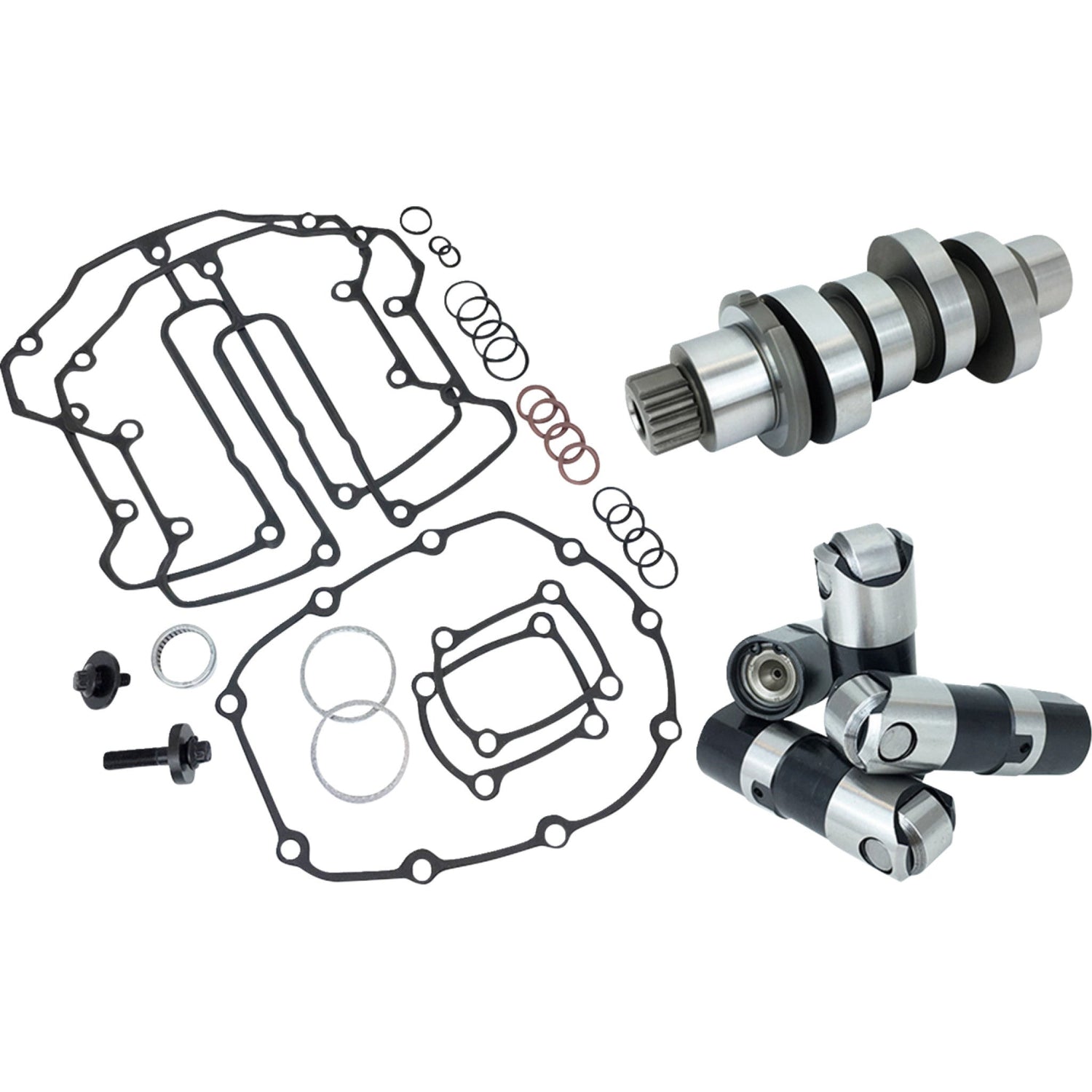

• 487 Reaper Chain Drive Camshaft, Cam Installation Kit and Race Series Lifters are included in this kit
• 487 Reaper Camshaft
• Bolt in
• Chain Drive
• 38° overlap
• RPM range 2,250 - 6,1000
• Camshaft for 114" and 117" engine
• Responds very well to increased bore and or compression
• Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
• Cam specs measured on the lifter @ 0.050 lift with 1.61 rocker arm ratio.
• Cam Installation Kit
• Includes cam bearing, cam/crank hardware and gasket/O-ring kit
• Allows for installation of the factory one piece pushrods or optional Feuling® heavy duty HP+® 0.165 wall one piece pushrods
• Race Series lifters
• Hydraulic lifters have a full 0.200 of total travel
• Designed with a slower bleed down rate to handle heavy valve spring pressures
• Increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the Milwaukee Eight front exhaust camshaft lobe flange
• Made in the USA
• Heavy duty one piece pushrods are highly recommended.
• Feuling® fastener kit is recommended to help prevent cylinder head cracking.
• A high flow exhaust system and air cleaner is highly recommended for optimal performance.
• High Lift valve springs are required on stock cylinder heads, Screamin Eagle cylinder heads have high lift valve springs but will need to be verified.
• Feuling® does not recommend tuning beyond stock emissions standards.

Specs

Part Notes

• Not for VVT engines.
• Includes:
• • Chain Drive Camshaft
• • Race Series® Lifters
• • Cam Installation Kit

Fitment Disclosure
