Feuling Oil Pump Corp.

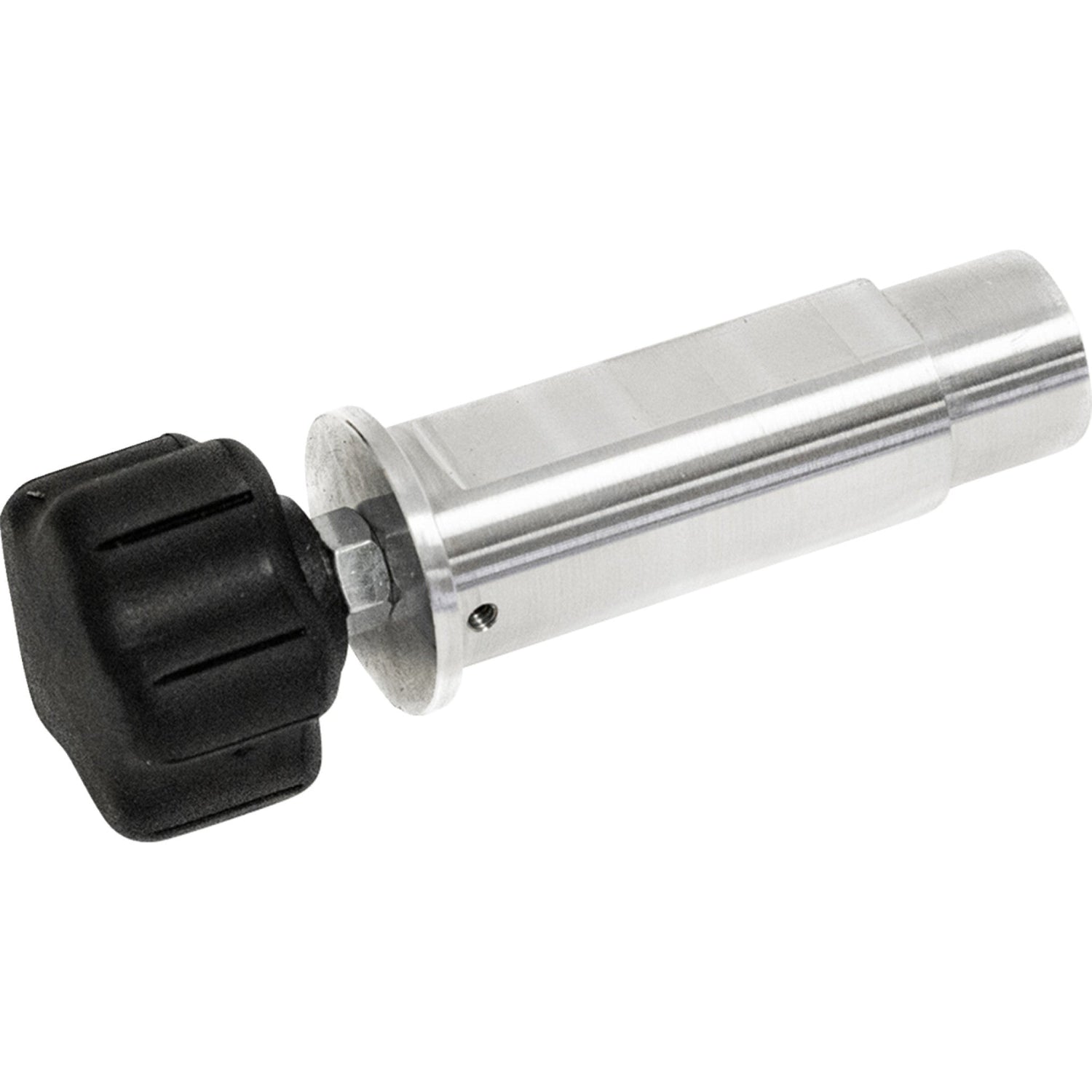

Feuling Oil Pump Corp. Oil Pump Gear Alignment Tool - 9017 For Harley Motorcycles 1999-2023
MPN:
9017
SKU:
3801-0428
Loading...
Feuling Oil Pump Corp.
Feuling Oil Pump Corp. Oil Pump Gear Alignment Tool - 9017 For Harley Motorcycles 1999-2023
MPN:
9017
SKU:
3801-0428
SKU:
3801-0428
Feuling recommends assembling the cam plate, oil pump, cam shaft etc together on the bench, lining up the oil pump gear flats with crankshaft flats and installing the complete assembly into the cam chest as one complete unit
This procedure has proven to provide the best seal on the back scavenge port of the oil pump to engine case as the parts are always going inwards towards the scavenge port
Twin Cam engines: rotate the crankshaft flats so they are horizontal and align oil pump gear flats horizontal to match
M8 engines: rotate the crankshaft flats so they are vertical and align oil pump gear flats vertical to match
Align the oil pump gear flats with the flats of the crankshaft
Specs
Product Name
Oil Pump Gear Alignment Tool
Type
Crankshaft
Color/Finish
Black / Silver
Units
Each
Riding Style
Street
Regular price
$54.95
Unit price
Product Details
Features
- Feuling recommends assembling the cam plate, oil pump, cam shaft etc together on the bench, lining up the oil pump gear flats with crankshaft flats and installing the complete assembly into the cam chest as one complete unit
- This procedure has proven to provide the best seal on the back scavenge port of the oil pump to engine case as the parts are always going inwards towards the scavenge port
- Twin Cam engines: rotate the crankshaft flats so they are horizontal and align oil pump gear flats horizontal to match
- M8 engines: rotate the crankshaft flats so they are vertical and align oil pump gear flats vertical to match
- Align the oil pump gear flats with the flats of the crankshaft
Specs
| Product Name | Oil Pump Gear Alignment Tool |
| Type | Crankshaft |
| Color/Finish | Black / Silver |
| Units | Each |
| Riding Style | Street |
Product Description
Features
- Feuling recommends assembling the cam plate, oil pump, cam shaft etc together on the bench, lining up the oil pump gear flats with crankshaft flats and installing the complete assembly into the cam chest as one complete unit
- This procedure has proven to provide the best seal on the back scavenge port of the oil pump to engine case as the parts are always going inwards towards the scavenge port
- Twin Cam engines: rotate the crankshaft flats so they are horizontal and align oil pump gear flats horizontal to match
- M8 engines: rotate the crankshaft flats so they are vertical and align oil pump gear flats vertical to match
- Align the oil pump gear flats with the flats of the crankshaft
Specs
| Product Name | Oil Pump Gear Alignment Tool |
| Type | Crankshaft |
| Color/Finish | Black / Silver |
| Units | Each |
| Riding Style | Street |
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 3801-0428 | 9017 | Available |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
