Feuling Oil Pump Corp.
Feuling Oil Pump Corp. Econo Beehive Spring Kit - 1123 For Harley Sportster 2004-2020
MPN:
1123
SKU:
0926-3323
1
of
3
Loading...
Feuling Oil Pump Corp.
Feuling Oil Pump Corp. Econo Beehive Spring Kit - 1123 For Harley Sportster 2004-2020
MPN:
1123
SKU:
0926-3323
SKU:
0926-3323
Made from premium stress-relieved conical ovate wire
Features extremely high-level of fatigue life
Uses a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
Designed to handle the demands of performance engines with 0.585" and smaller lift camshafts

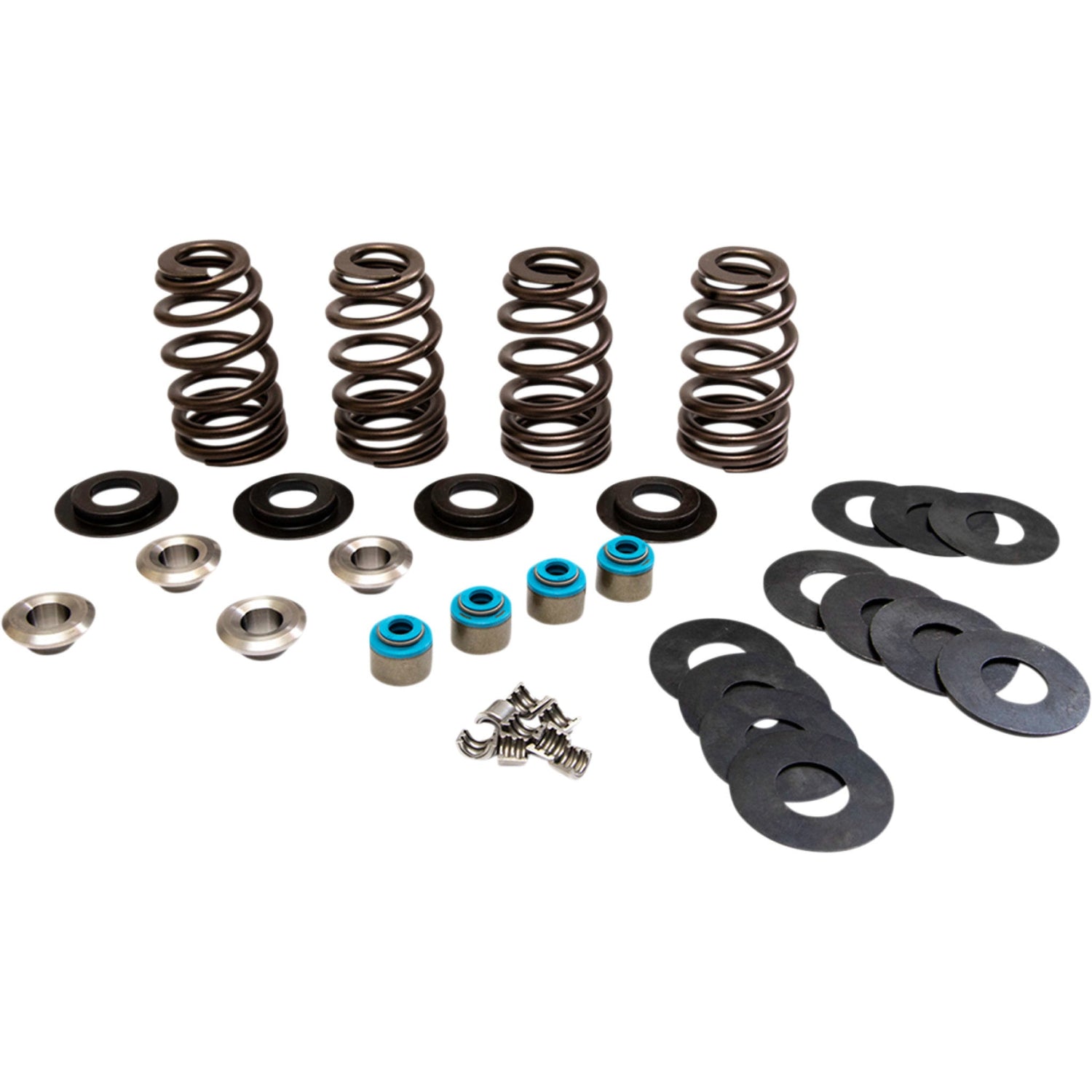

Kit includes: Econo BeeHive® valve springs, lightweight 7° steel retainers, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
Seat lb/installed height; 183 lb at 1.770" (0.510" lift)
175 lb at 1.795" (0.535" lift)
172 lb at 1.813" (0.553" lift)
165 lb at 1.835" (0.574" lift)
160 lb at 1.845" (0.585" lift)
380 lb at 1.260" open height coil bind at 1.190"
Dyno proven and track tested
Feuling® BeeHive® valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs
Made in the USA
Econo BeeHive® kit is direct replacement with no machining or rocker box clearance required for cams up to 0.574" lift for '84-'04 Big Twin and '86-'03 XL and up to .585" lift for '05-'17 Twin Cam.
Specs
Product Name
Spring Kit
Type
Valve
Style
Ovate Wire Beehive
Model
Econo Beehive
Material
Titanium / Steel
Stem Diameter
0.3125"
Units
Kit
Riding Style
Street
2004-2019
Harley-Davidson
Sportster 1200 Custom XL1200C
2004-2009
Harley-Davidson
Sportster 1200 Roadster XL1200R
2004-2009
Harley-Davidson
Sportster 883 Custom XL883C
2004-2009
Harley-Davidson
Sportster XL883
2005-2010
Harley-Davidson
Sportster 883 Low XL883L
2005-2007
Harley-Davidson
Sportster 883 Roadster XL883R
2006-2011
Harley-Davidson
Sportster 1200 Low XL1200L
2007
Harley-Davidson
Sportster 1200 50 XL
2007-2012
Harley-Davidson
Sportster 1200 Nightster XL1200N
2009-2020
Harley-Davidson
Sportser Iron 883 XLN
2009-2012
Harley-Davidson
Sportster 1200 X XR
2010-2012
Harley-Davidson
Sportster 1200 XR
2010-2020
Harley-Davidson
Sportster Forty-Eight XLX
2011-2017
Harley-Davidson
1200 XLCP
2011-2019
Harley-Davidson
SuperLow XL883L
2012-2016
Harley-Davidson
Sportster Seventy-Two XLV
2014-2017
Harley-Davidson
SuperLow 1200T XL1200T
2016-2020
Harley-Davidson
1200 Roadster XLCX
2018-2020
Harley-Davidson
Sportser Iron 1200 XLNS
2018-2019
Harley-Davidson
Sportster Forty-Eight Special XLXS
Fitment DisclosureThis quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Regular price
$309.95
Unit price
Shipping calculated at checkout.
Product Details
Features
- Made from premium stress-relieved conical ovate wire
- Features extremely high-level of fatigue life
- Uses a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
- Designed to handle the demands of performance engines with 0.585" and smaller lift camshafts
- Kit includes: Econo BeeHive® valve springs, lightweight 7° steel retainers, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
- Seat lb/installed height; 183 lb at 1.770" (0.510" lift)
- 175 lb at 1.795" (0.535" lift)
- 172 lb at 1.813" (0.553" lift)
- 165 lb at 1.835" (0.574" lift)
- 160 lb at 1.845" (0.585" lift)
- 380 lb at 1.260" open height coil bind at 1.190"
- Dyno proven and track tested
- Feuling® BeeHive® valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs
- Made in the USA
- Econo BeeHive® kit is direct replacement with no machining or rocker box clearance required for cams up to 0.574" lift for '84-'04 Big Twin and '86-'03 XL and up to .585" lift for '05-'17 Twin Cam.
Specs
| Product Name | Spring Kit |
| Type | Valve |
| Style | Ovate Wire Beehive |
| Model | Econo Beehive |
| Material | Titanium / Steel |
| Stem Diameter | 0.3125" |
| Units | Kit |
| Riding Style | Street |
| 2004-2019 | Harley-Davidson | Sportster 1200 Custom XL1200C |
| 2004-2009 | Harley-Davidson | Sportster 1200 Roadster XL1200R |
| 2004-2009 | Harley-Davidson | Sportster 883 Custom XL883C |
| 2004-2009 | Harley-Davidson | Sportster XL883 |
| 2005-2010 | Harley-Davidson | Sportster 883 Low XL883L |
| 2005-2007 | Harley-Davidson | Sportster 883 Roadster XL883R |
| 2006-2011 | Harley-Davidson | Sportster 1200 Low XL1200L |
| 2007 | Harley-Davidson | Sportster 1200 50 XL |
| 2007-2012 | Harley-Davidson | Sportster 1200 Nightster XL1200N |
| 2009-2020 | Harley-Davidson | Sportser Iron 883 XLN |
| 2009-2012 | Harley-Davidson | Sportster 1200 X XR |
| 2010-2012 | Harley-Davidson | Sportster 1200 XR |
| 2010-2020 | Harley-Davidson | Sportster Forty-Eight XLX |
| 2011-2017 | Harley-Davidson | 1200 XLCP |
| 2011-2019 | Harley-Davidson | SuperLow XL883L |
| 2012-2016 | Harley-Davidson | Sportster Seventy-Two XLV |
| 2014-2017 | Harley-Davidson | SuperLow 1200T XL1200T |
| 2016-2020 | Harley-Davidson | 1200 Roadster XLCX |
| 2018-2020 | Harley-Davidson | Sportser Iron 1200 XLNS |
| 2018-2019 | Harley-Davidson | Sportster Forty-Eight Special XLXS |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Product Description
Features
- Made from premium stress-relieved conical ovate wire
- Features extremely high-level of fatigue life
- Uses a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
- Designed to handle the demands of performance engines with 0.585" and smaller lift camshafts
- Kit includes: Econo BeeHive® valve springs, lightweight 7° steel retainers, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
- Seat lb/installed height; 183 lb at 1.770" (0.510" lift)
- 175 lb at 1.795" (0.535" lift)
- 172 lb at 1.813" (0.553" lift)
- 165 lb at 1.835" (0.574" lift)
- 160 lb at 1.845" (0.585" lift)
- 380 lb at 1.260" open height coil bind at 1.190"
- Dyno proven and track tested
- Feuling® BeeHive® valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs
- Made in the USA
- Econo BeeHive® kit is direct replacement with no machining or rocker box clearance required for cams up to 0.574" lift for '84-'04 Big Twin and '86-'03 XL and up to .585" lift for '05-'17 Twin Cam.
Specs
| Product Name | Spring Kit |
| Type | Valve |
| Style | Ovate Wire Beehive |
| Model | Econo Beehive |
| Material | Titanium / Steel |
| Stem Diameter | 0.3125" |
| Units | Kit |
| Riding Style | Street |
| 2004-2019 | Harley-Davidson | Sportster 1200 Custom XL1200C |
| 2004-2009 | Harley-Davidson | Sportster 1200 Roadster XL1200R |
| 2004-2009 | Harley-Davidson | Sportster 883 Custom XL883C |
| 2004-2009 | Harley-Davidson | Sportster XL883 |
| 2005-2010 | Harley-Davidson | Sportster 883 Low XL883L |
| 2005-2007 | Harley-Davidson | Sportster 883 Roadster XL883R |
| 2006-2011 | Harley-Davidson | Sportster 1200 Low XL1200L |
| 2007 | Harley-Davidson | Sportster 1200 50 XL |
| 2007-2012 | Harley-Davidson | Sportster 1200 Nightster XL1200N |
| 2009-2020 | Harley-Davidson | Sportser Iron 883 XLN |
| 2009-2012 | Harley-Davidson | Sportster 1200 X XR |
| 2010-2012 | Harley-Davidson | Sportster 1200 XR |
| 2010-2020 | Harley-Davidson | Sportster Forty-Eight XLX |
| 2011-2017 | Harley-Davidson | 1200 XLCP |
| 2011-2019 | Harley-Davidson | SuperLow XL883L |
| 2012-2016 | Harley-Davidson | Sportster Seventy-Two XLV |
| 2014-2017 | Harley-Davidson | SuperLow 1200T XL1200T |
| 2016-2020 | Harley-Davidson | 1200 Roadster XLCX |
| 2018-2020 | Harley-Davidson | Sportser Iron 1200 XLNS |
| 2018-2019 | Harley-Davidson | Sportster Forty-Eight Special XLXS |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0926-3323 | 1123 | In Stock |
Fitment
