D.I.D

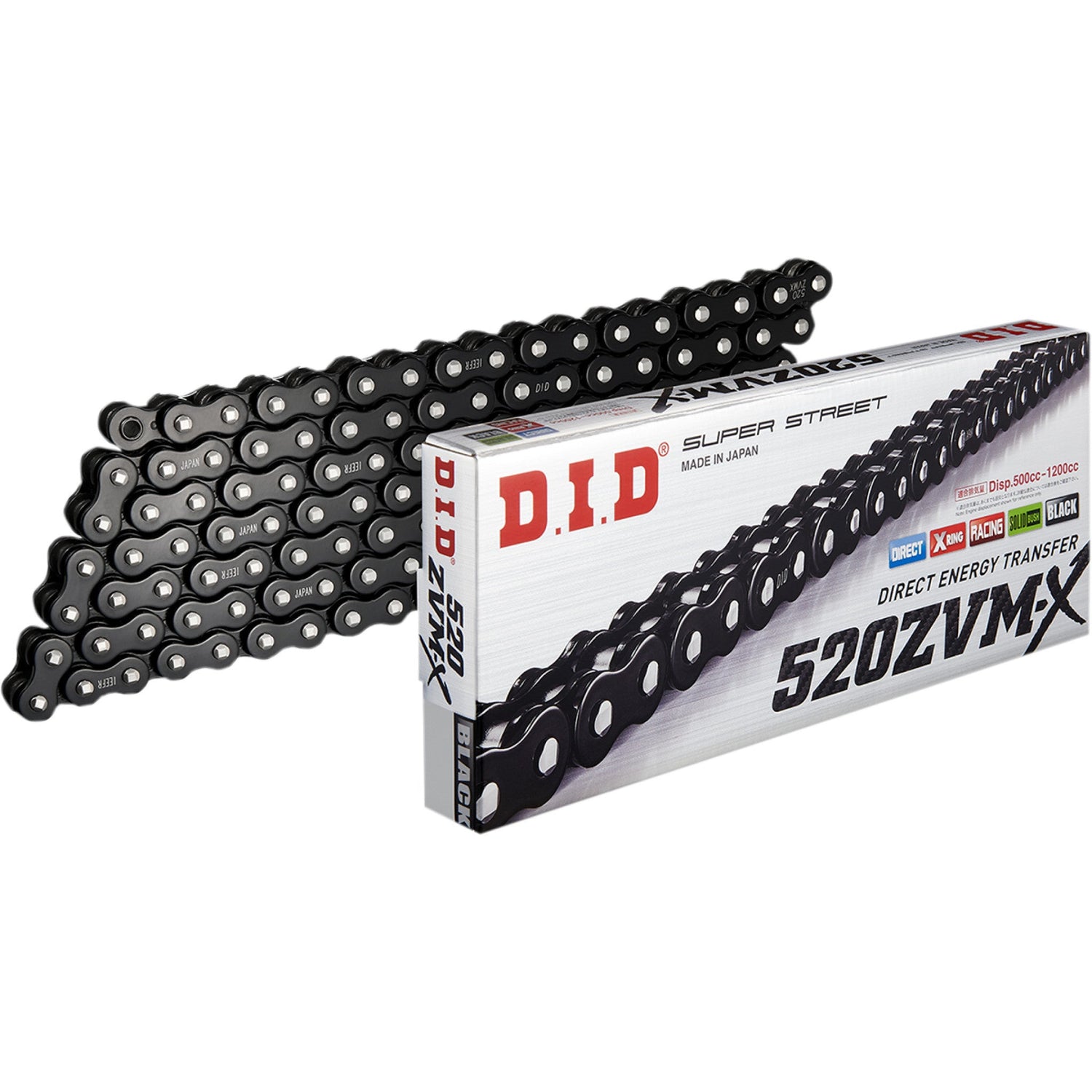

DID 1223-1564 520ZVMXB120Z 520 ZVM-X Raven Edition Drive Chain 520 ZVM-X - Drive Chain - 120 Link - Black
MPN:
520ZVMXB120Z
SKU:
1223-1564
1
of
4
Loading...
Sold out
D.I.D
DID 1223-1564 520ZVMXB120Z 520 ZVM-X Raven Edition Drive Chain 520 ZVM-X - Drive Chain - 120 Link - Black
MPN:
520ZVMXB120Z
SKU:
1223-1564
SKU:
1223-1564
Retains all the low-friction, high-performance characteristics of the standard X-ring while providing 40% greater wear resistance and better overall chain life
Designed for heavyweight motorcycles with tremendous torque and horsepower
ZVM-X Series is only available with a rivet connecting link, included with the chain
ZVM-X Series utilizes D.I.D's patented X-Ring seal and has greater strength than the VX Series and is designed for heavyweight motorcycles with tremendous torque and horsepower
Twisting action of the X-Ring increases its sealing performance and its four contact points minimizes power loss
ZVM-X Series’ Direct Energy Transfer, born from our experience in MotoGP, means greater stretch resistance under load
ZVM-X chain is a great chain for high powered street bikes but may also be utilized on adventure bikes
Specs
Weight
1,63 kg/100 Links
Number of Links
120
Seal Type
X-Ring
Units
Each
Maximum Engine Displacement (Street)
1200 cc
Product Name
Drive Chain
Color/Finish
Black
Model
Raven Edition
Tensile Strength
8745 lb
Chain Size
520
Master Link Connector Type
Rivet
Riding Style
Street
Tensile Strength
38.9 kN
Chain Type
520 ZVMX
Regular price
$294.20
Unit price
Shipping calculated at checkout.
Product Details
Features
- Retains all the low-friction, high-performance characteristics of the standard X-ring while providing 40% greater wear resistance and better overall chain life
- Designed for heavyweight motorcycles with tremendous torque and horsepower
- ZVM-X Series is only available with a rivet connecting link, included with the chain
- ZVM-X Series utilizes D.I.D's patented X-Ring seal and has greater strength than the VX Series and is designed for heavyweight motorcycles with tremendous torque and horsepower
- Twisting action of the X-Ring increases its sealing performance and its four contact points minimizes power loss
- ZVM-X Series’ Direct Energy Transfer, born from our experience in MotoGP, means greater stretch resistance under load
- ZVM-X chain is a great chain for high powered street bikes but may also be utilized on adventure bikes
Specs
| Weight | 1,63 kg/100 Links |
| Number of Links | 120 |
| Seal Type | X-Ring |
| Units | Each |
| Maximum Engine Displacement (Street) | 1200 cc |
| Product Name | Drive Chain |
| Color/Finish | Black |
| Model | Raven Edition |
| Tensile Strength | 8745 lb |
| Chain Size | 520 |
| Master Link Connector Type | Rivet |
| Riding Style | Street |
| Tensile Strength | 38.9 kN |
| Chain Type | 520 ZVMX |
Product Description
Features
- Retains all the low-friction, high-performance characteristics of the standard X-ring while providing 40% greater wear resistance and better overall chain life
- Designed for heavyweight motorcycles with tremendous torque and horsepower
- ZVM-X Series is only available with a rivet connecting link, included with the chain
- ZVM-X Series utilizes D.I.D's patented X-Ring seal and has greater strength than the VX Series and is designed for heavyweight motorcycles with tremendous torque and horsepower
- Twisting action of the X-Ring increases its sealing performance and its four contact points minimizes power loss
- ZVM-X Series’ Direct Energy Transfer, born from our experience in MotoGP, means greater stretch resistance under load
- ZVM-X chain is a great chain for high powered street bikes but may also be utilized on adventure bikes
Specs
| Weight | 1,63 kg/100 Links |
| Number of Links | 120 |
| Seal Type | X-Ring |
| Units | Each |
| Maximum Engine Displacement (Street) | 1200 cc |
| Product Name | Drive Chain |
| Color/Finish | Black |
| Model | Raven Edition |
| Tensile Strength | 8745 lb |
| Chain Size | 520 |
| Master Link Connector Type | Rivet |
| Riding Style | Street |
| Tensile Strength | 38.9 kN |
| Chain Type | 520 ZVMX |
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 1223-1564 | 520ZVMXB120Z | Out of Stock |
