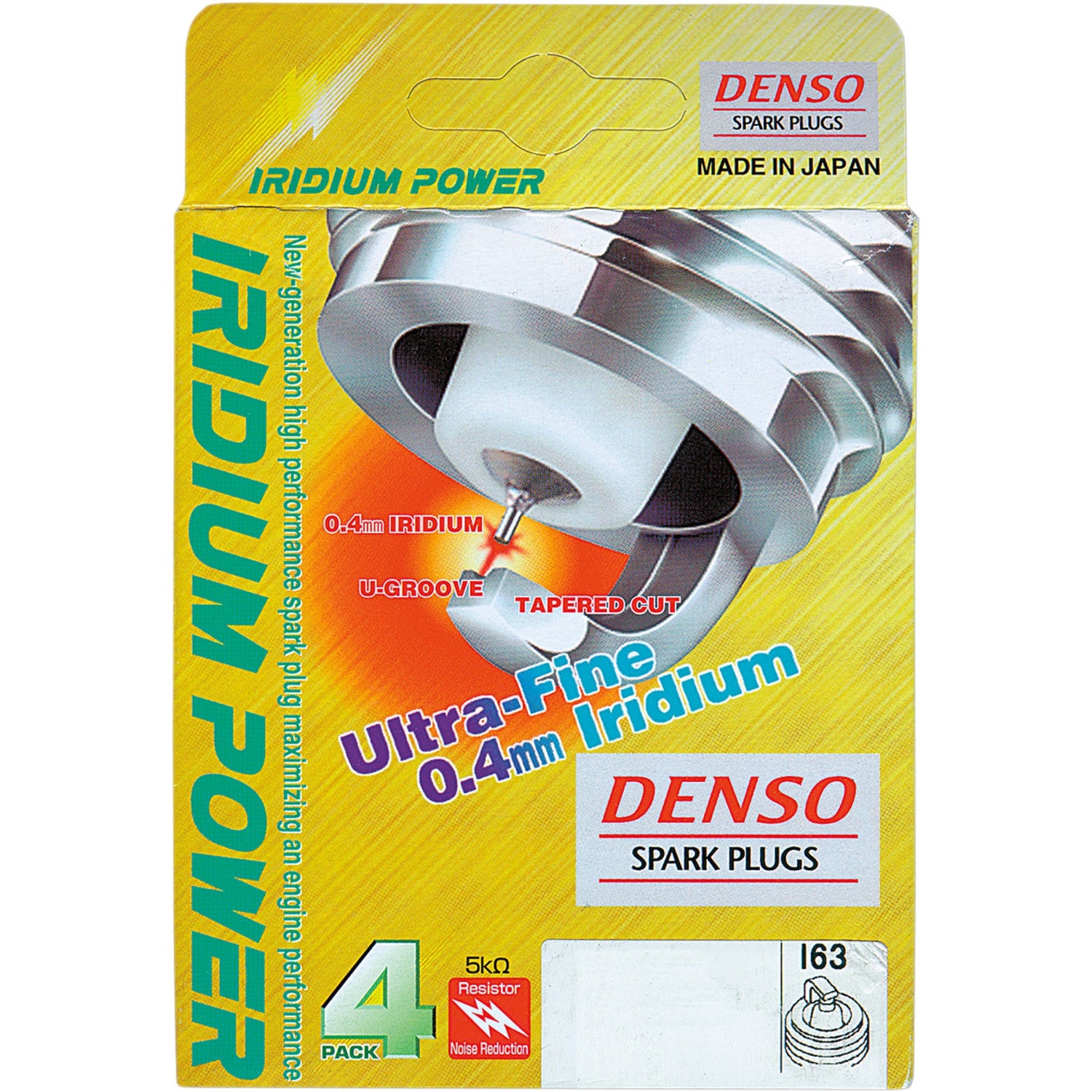

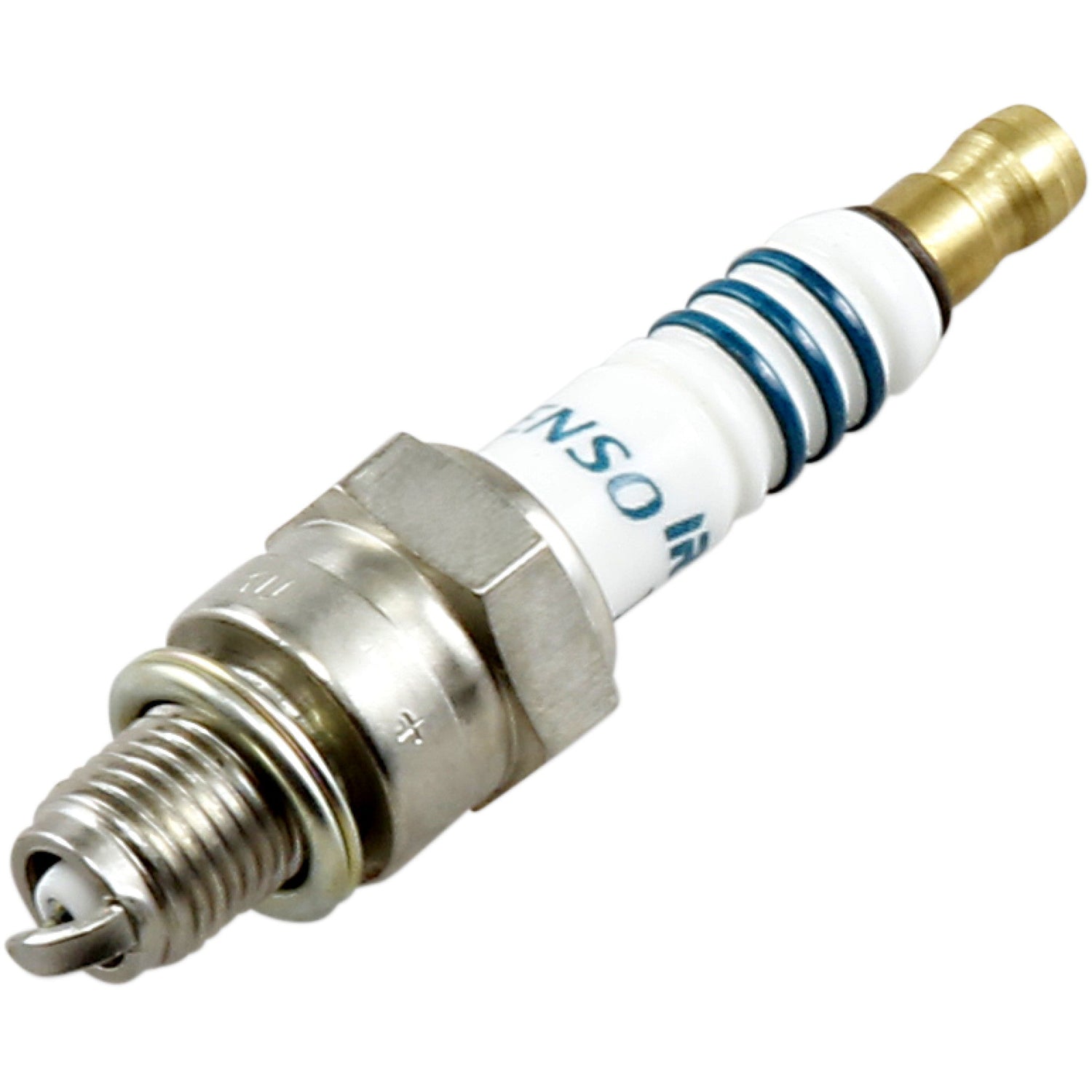

DENSO IUF22 5383 Iridium Spark Plug — Iridium Iridium Spark Plug - IUF22

Features

• Six times harder than platinum, iridium withstands temperatures up to 4,000°F
• Because the iridium electrodes of these plugs can be shrunk to only 0.4mm, voltage requirements decrease while firing performance improves
• 360° laser welding of electrode provides a seal that resists wear even in the worst conditions
• Ground electrode features a tapered cut and U-groove that form a large volume area for the flame's center

Specs

Hex Size	16 mm
Terminal Configuration	Threaded Stud
Heat Range	22
Center Electrode Projection	Non-Projected
Center Electrode Type	Fine Wire
Ground Electrode Shape	Taper Cut
Riding Style	Off-Road
Units	Each
Spark Gap	0.8 mm
Electrode Tip Material	Iridium
Model	IUF22
Riding Style	Street
Spark Gap	0.031"
Electrical Resistance	5k Ohms
Ground Electrode Shape	Grooved
Product Name	Spark Plug
Style	Iridium
Thread Reach	12.7 mm
Type	Resistor

Fitment Disclosure

This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
