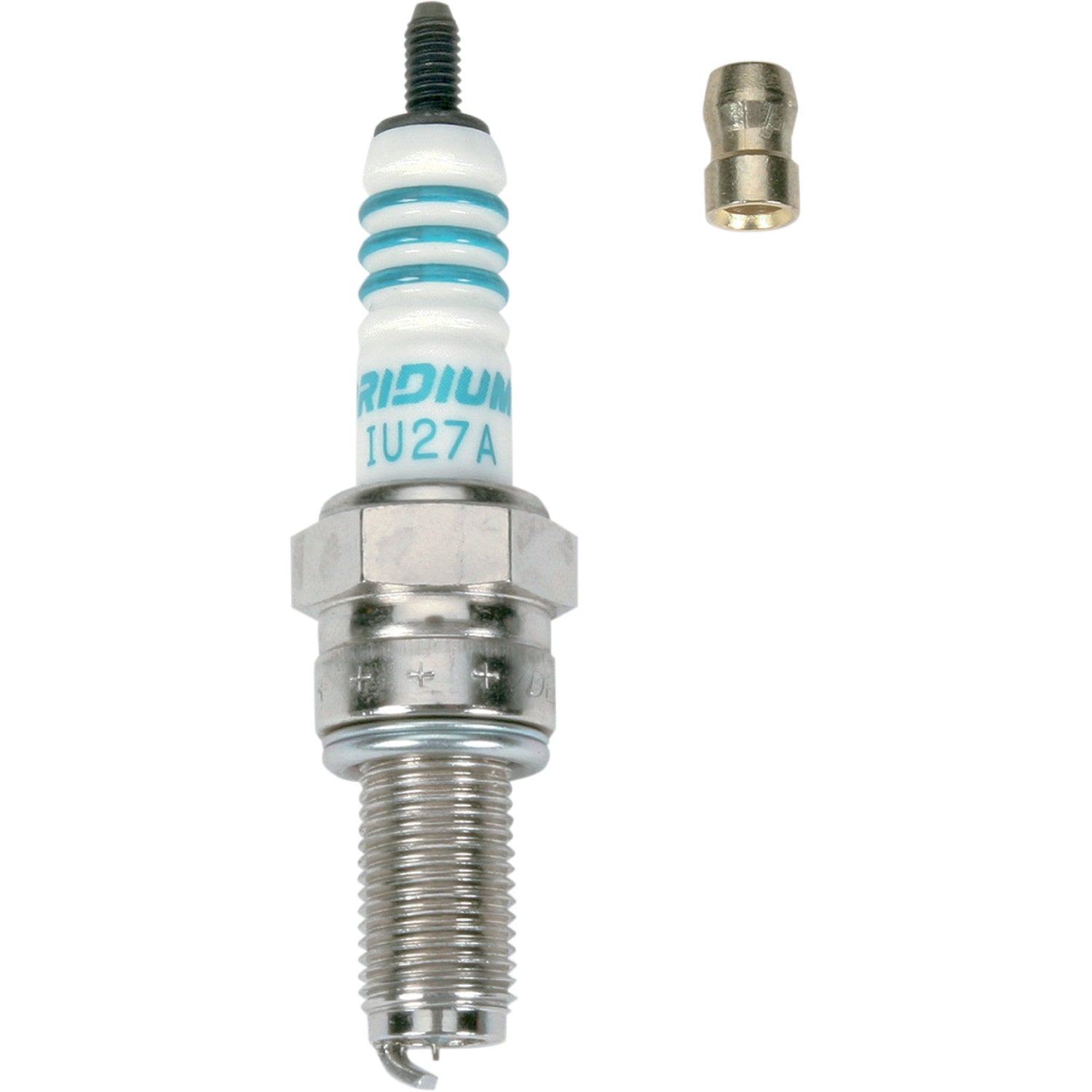

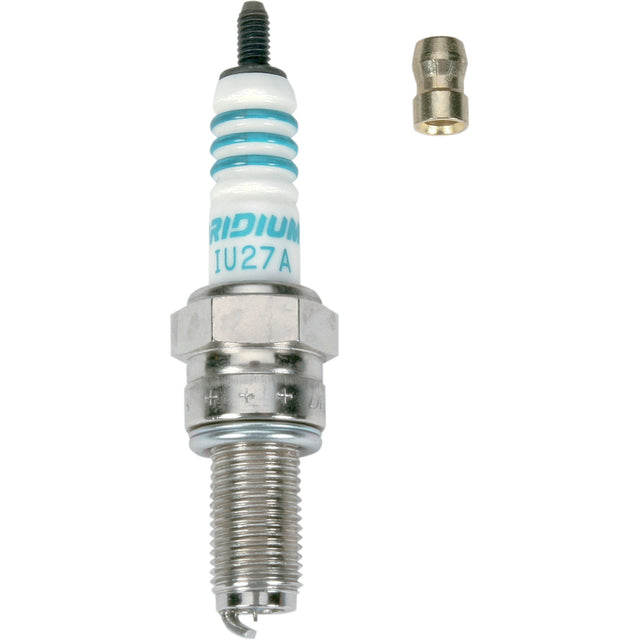

DENSO IU27A 5366 Iridium Spark Plug — Iridium Iridium Spark Plug - IU27A

Features

• Six times harder than platinum, iridium withstands temperatures up to 4,000°F
• Because the iridium electrodes of these plugs can be shrunk to only 0.4mm, voltage requirements decrease while firing performance improves
• 360° laser welding of electrode provides a seal that resists wear even in the worst conditions
• Ground electrode features a tapered cut and U-groove that form a large volume area for the flame's center

Specs

Electrical Resistance	5k Ohms
Model	IU27A
Riding Style	Street
Terminal Configuration	Threaded Stud
Spark Gap	0.9 mm
Thread Reach	19.1 mm
Electrode Tip Material	Iridium
Ground Electrode Shape	Angled
Hex Size	16 mm
Center Electrode Type	Fine Wire
Spark Gap	0.035"
Center Electrode Projection	Non-Projected
Product Name	Spark Plug
Style	Iridium
Type	Resistor
Units	Each
Heat Range	27

Fitment Disclosure

This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
