SKU:

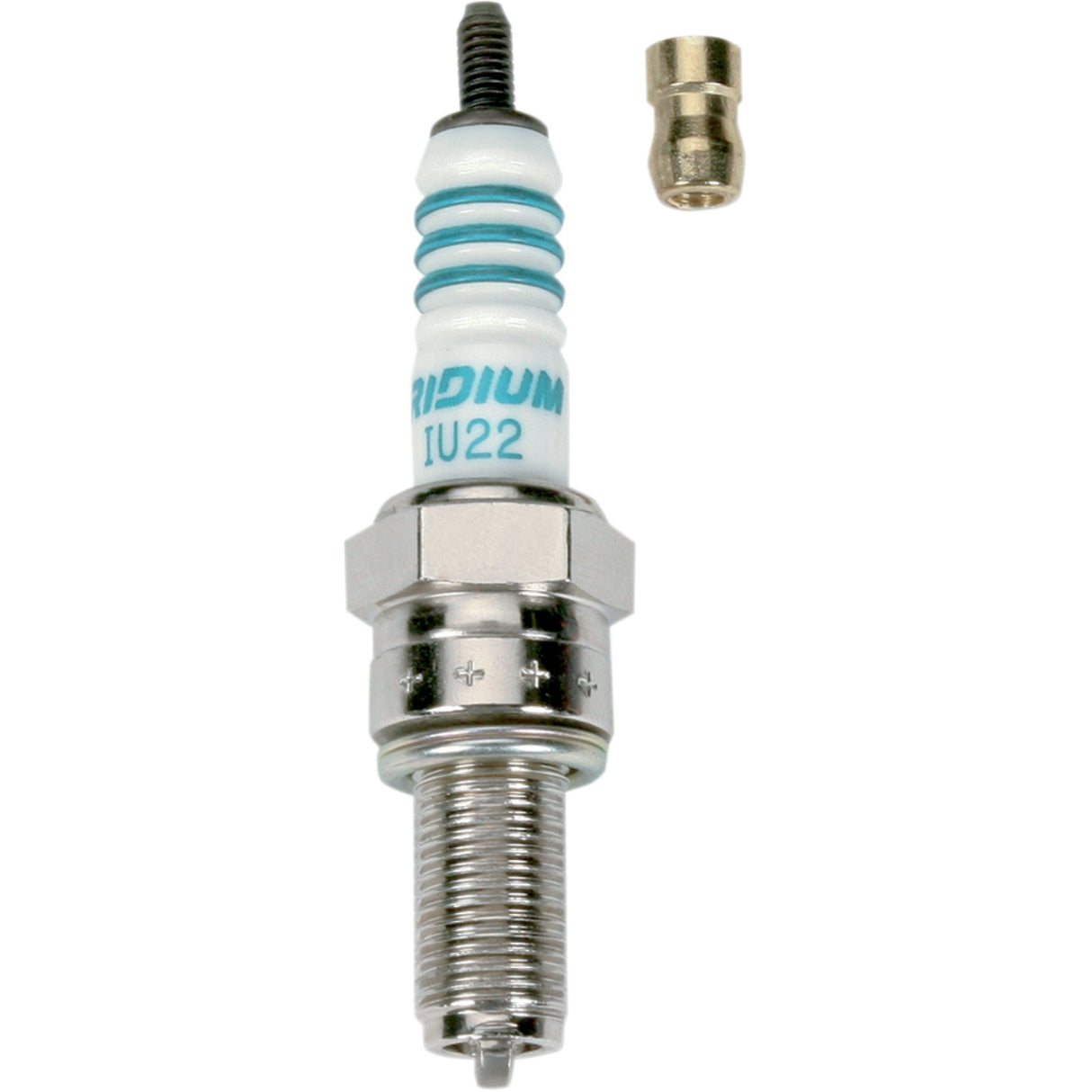

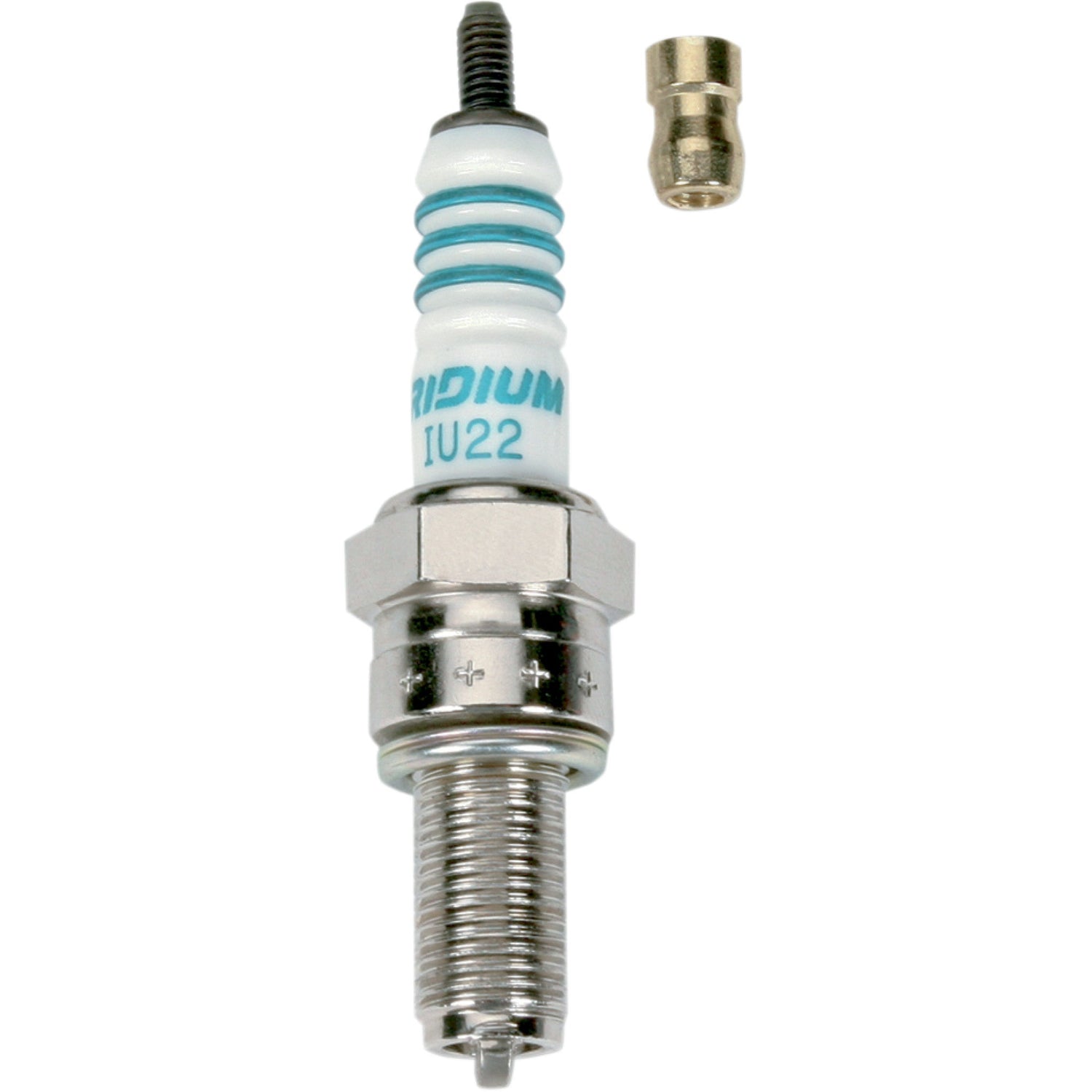

IU22
Six times harder than platinum, iridium withstands temperatures up to 4,000°F
Because the iridium electrodes of these plugs can be shrunk to only 0.4mm, voltage requirements decrease while firing performance improves
360° laser welding of electrode provides a seal that resists wear even in the worst conditions
Ground electrode features a tapered cut and U-groove that form a large volume area for the flame's center
Specs
Hex Size
16 mm
Riding Style
Off-Road
Spark Gap
0.035"
Type
Resistor
Center Electrode Projection
Non-Projected
Center Electrode Type
Fine Wire
Heat Range
7
Style
Iridium
Electrical Resistance
5k Ohms
Ground Electrode Shape
Grooved
Model
IU22
Product Name
Spark Plug
Thread Reach
19.1 mm
Terminal Configuration
Threaded Stud
Units
Each
Electrode Tip Material
Iridium
Ground Electrode Shape
Taper Cut
Riding Style
Street
Spark Gap
0.9 mm
Regular price
$16.95
Unit price
Shipping calculated at checkout.
Product Details
Features
- Six times harder than platinum, iridium withstands temperatures up to 4,000°F
- Because the iridium electrodes of these plugs can be shrunk to only 0.4mm, voltage requirements decrease while firing performance improves
- 360° laser welding of electrode provides a seal that resists wear even in the worst conditions
- Ground electrode features a tapered cut and U-groove that form a large volume area for the flame's center
Specs
| Hex Size | 16 mm |
| Riding Style | Off-Road |
| Spark Gap | 0.035" |
| Type | Resistor |
| Center Electrode Projection | Non-Projected |
| Center Electrode Type | Fine Wire |
| Heat Range | 7 |
| Style | Iridium |
| Electrical Resistance | 5k Ohms |
| Ground Electrode Shape | Grooved |
| Model | IU22 |
| Product Name | Spark Plug |
| Thread Reach | 19.1 mm |
| Terminal Configuration | Threaded Stud |
| Units | Each |
| Electrode Tip Material | Iridium |
| Ground Electrode Shape | Taper Cut |
| Riding Style | Street |
| Spark Gap | 0.9 mm |
Product Description
Features
- Six times harder than platinum, iridium withstands temperatures up to 4,000°F
- Because the iridium electrodes of these plugs can be shrunk to only 0.4mm, voltage requirements decrease while firing performance improves
- 360° laser welding of electrode provides a seal that resists wear even in the worst conditions
- Ground electrode features a tapered cut and U-groove that form a large volume area for the flame's center
Specs
| Hex Size | 16 mm |
| Riding Style | Off-Road |
| Spark Gap | 0.035" |
| Type | Resistor |
| Center Electrode Projection | Non-Projected |
| Center Electrode Type | Fine Wire |
| Heat Range | 7 |
| Style | Iridium |
| Electrical Resistance | 5k Ohms |
| Ground Electrode Shape | Grooved |
| Model | IU22 |
| Product Name | Spark Plug |
| Thread Reach | 19.1 mm |
| Terminal Configuration | Threaded Stud |
| Units | Each |
| Electrode Tip Material | Iridium |
| Ground Electrode Shape | Taper Cut |
| Riding Style | Street |
| Spark Gap | 0.9 mm |
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| IU22 | 5361 | Out of Stock |
