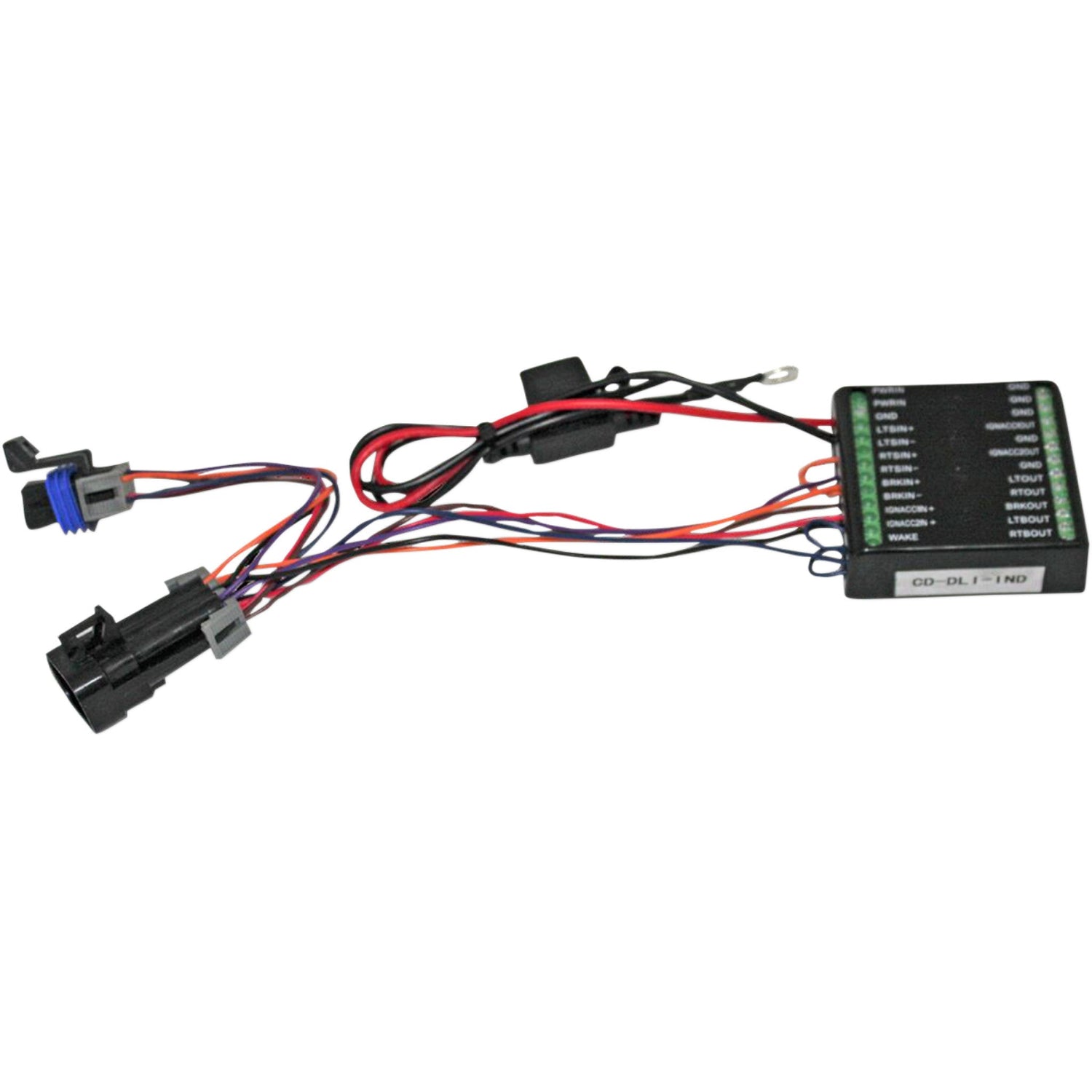

CUSTOM DYNAMICS 2050-0296 CD-DLI-IND Dynamic Load Isolator Module Load Isolator Module

Features

• Allows you to connect aftermarket electrical and lighting accessories with total confidence
• Completely isolates the accessories from the vehicle’s main wire-harness without adding any additional load to the system
• A must-have on newer BCM/VCM/CAN bikes that have very sensitive electrical systems that do not allow the addition of electrical or lighting accessories
• Has an built in integrator function which combines brake and turn onto one wire, giving turn priority over brake which is very useful for adding Run-Brake-Turn function to a 3 wire LED (low-high-ground)
• There is also a built in trailer out which can be connected to an optional 4 pin trailer harness (sold separately) given you complete and total confidence of a 100% isolated trailer connector from the vehicle
• Total Isolation of all lighting and electrical accessories from vehicle
• Left Turn, Right Turn, Brake, Battery, Accessory Power Inputs
• Isolated Outputs: Left Turn, Right Turn, Brake, Run/Accessory
• Isolated Integrated Output: Turn/Brake Output
• Plug and Play (except for universal version)
• 45 Amp Max Total Capacity
