SKU:
DS199249
Manufactured with the help of a computer with cam design capabilities
Made from alloy steel billets and heat-treated processes are utilized
Made in the USA
Four-gear set required for installation.
Installer must check coil bind, valve to valve clearance and valve to piston clearance.
Specs
Type
Gear Drive
Application
Intake
Exhaust Lobe Centerline
106°
Exhaust Duration
252°
Exhaust Lift at TDC
0.181"
Exhaust Open
52°
Intake Duration
248°
Intake Lift
0.550"
Riding Style
Street
Grind
55 Series
Application
Exhaust
Exhaust Close
20°
Exhaust Lift
0.550"
Intake Open
22°
Product Name
Cam Set
Intake Close
46°
Intake Lift at TDC
0.197"
Intake Lobe Centerline
102°
Units
Pair
Part Notes
Cams for maximum torque and horsepower at 2600-6000+ rpm.
Designed for 88'-95" engines with 9.5:1 compression ratio or higher.
Coil bind must be checked, but stock tappets can be used.
Not for '06 Dyna.
Regular price
$463.95
Unit price
Shipping calculated at checkout.
Product Details
Features
- Manufactured with the help of a computer with cam design capabilities
- Made from alloy steel billets and heat-treated processes are utilized
- Made in the USA
- Four-gear set required for installation.
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
Specs
| Type | Gear Drive |
| Application | Intake |
| Exhaust Lobe Centerline | 106° |
| Exhaust Duration | 252° |
| Exhaust Lift at TDC | 0.181" |
| Exhaust Open | 52° |
| Intake Duration | 248° |
| Intake Lift | 0.550" |
| Riding Style | Street |
| Grind | 55 Series |
| Application | Exhaust |
| Exhaust Close | 20° |
| Exhaust Lift | 0.550" |
| Intake Open | 22° |
| Product Name | Cam Set |
| Intake Close | 46° |
| Intake Lift at TDC | 0.197" |
| Intake Lobe Centerline | 102° |
| Units | Pair |
Part Notes
- Cams for maximum torque and horsepower at 2600-6000+ rpm.
- Designed for 88'-95" engines with 9.5:1 compression ratio or higher.
- Coil bind must be checked, but stock tappets can be used.
- Not for '06 Dyna.
Product Description
Features
- Manufactured with the help of a computer with cam design capabilities
- Made from alloy steel billets and heat-treated processes are utilized
- Made in the USA
- Four-gear set required for installation.
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
Specs
| Type | Gear Drive |
| Application | Intake |
| Exhaust Lobe Centerline | 106° |
| Exhaust Duration | 252° |
| Exhaust Lift at TDC | 0.181" |
| Exhaust Open | 52° |
| Intake Duration | 248° |
| Intake Lift | 0.550" |
| Riding Style | Street |
| Grind | 55 Series |
| Application | Exhaust |
| Exhaust Close | 20° |
| Exhaust Lift | 0.550" |
| Intake Open | 22° |
| Product Name | Cam Set |
| Intake Close | 46° |
| Intake Lift at TDC | 0.197" |
| Intake Lobe Centerline | 102° |
| Units | Pair |
Part Notes
- Cams for maximum torque and horsepower at 2600-6000+ rpm.
- Designed for 88'-95" engines with 9.5:1 compression ratio or higher.
- Coil bind must be checked, but stock tappets can be used.
- Not for '06 Dyna.
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| DS199249 | 288155G | In Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Customer Reviews

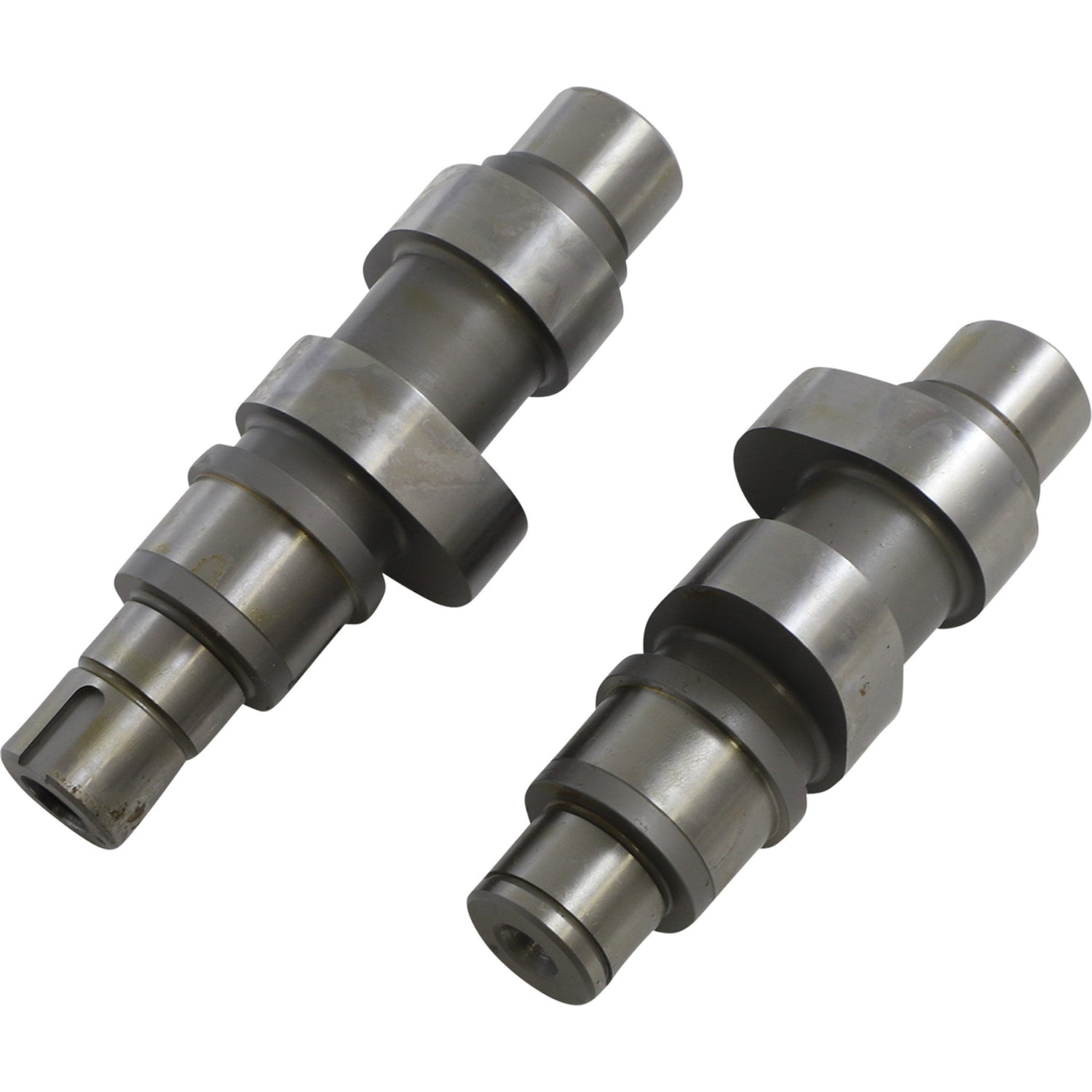

Andrews Cam Set - 288155G For Harley Motorcycles 1999-2006
