Andrews
ANDREWS DS199105 212105 Gauge Pins Gauge Pin - Cam Drive Gear 0.105"
MPN:
212105
SKU:
DS199105
Loading...
Andrews

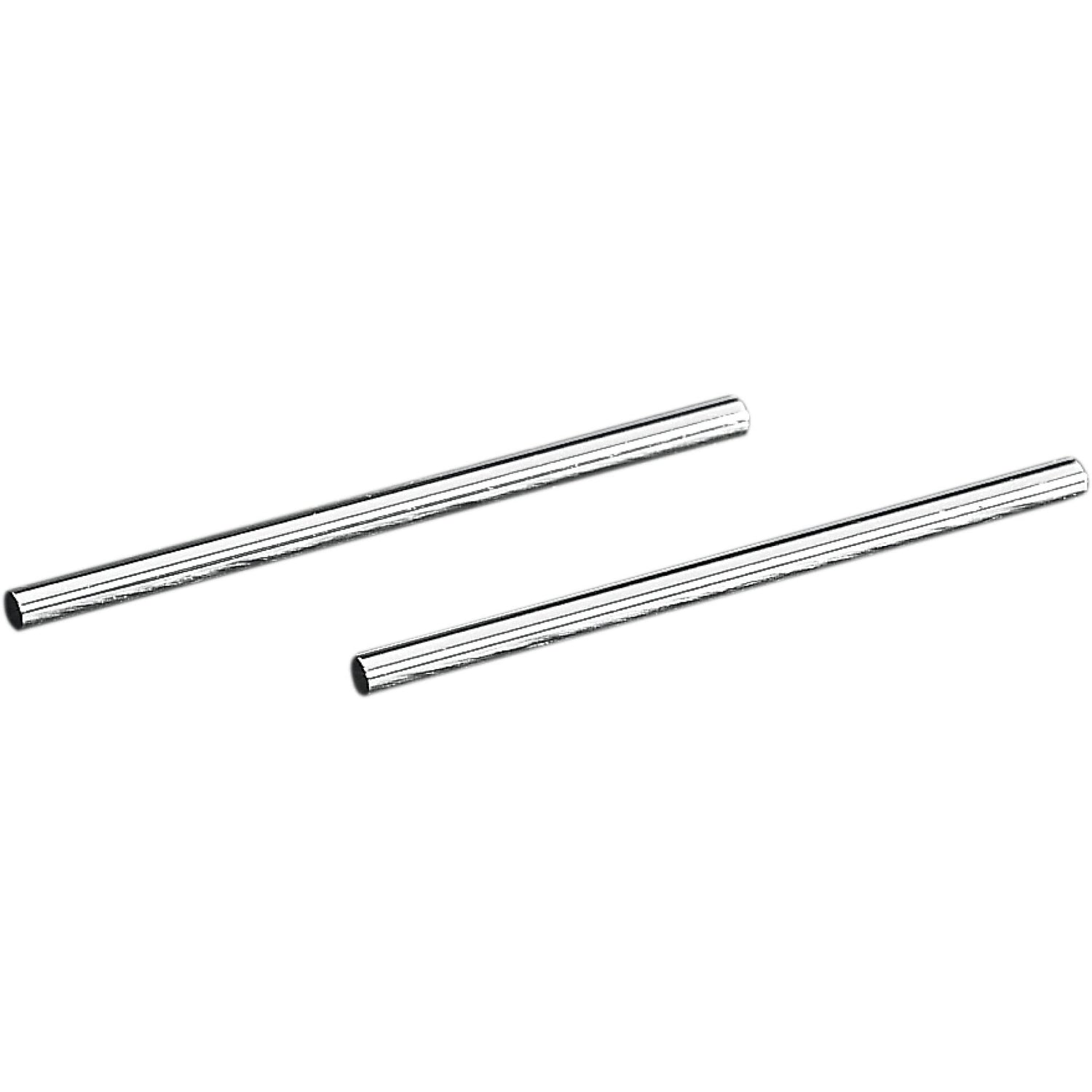

ANDREWS DS199105 212105 Gauge Pins Gauge Pin - Cam Drive Gear 0.105"
MPN:
212105
SKU:
DS199105
SKU:
DS199105
Used to measure the outside diameter of cam drive gears
Made in the USA
There are two basic differences between '90-'99 cam gear sizes and earlier years. The overall range of gear pin measurements (from the largest gears to the smallest) was reduced in '90 from .006" to .003". The large gears are the same size for both '84-'89 and '90-'99 (green and black color codes). Gear size measurements (over pins) are listed in the '90 H-D manual using .108" pins instead of .105" pins (as for earlier years). For the same gear, measurement over .108" pins will be approximately .012" larger than for .105" pins. For '92 engines, stock cam gears are interchangeable with earlier versions but gear outer diameters have been reduced by .025".
Specs
Measurement System
SAE
Material
Alloy Steel
Outside Diameter
0.105"
Units
Pair
Riding Style
Street
Type
Cam Drive Gear
Color/Finish
Silver
Product Name
Gauge Pin
Regular price
$28.95
Unit price
Shipping calculated at checkout.
Product Details
Features
- Used to measure the outside diameter of cam drive gears
- Made in the USA
- There are two basic differences between '90-'99 cam gear sizes and earlier years. The overall range of gear pin measurements (from the largest gears to the smallest) was reduced in '90 from .006" to .003". The large gears are the same size for both '84-'89 and '90-'99 (green and black color codes). Gear size measurements (over pins) are listed in the '90 H-D manual using .108" pins instead of .105" pins (as for earlier years). For the same gear, measurement over .108" pins will be approximately .012" larger than for .105" pins. For '92 engines, stock cam gears are interchangeable with earlier versions but gear outer diameters have been reduced by .025".
Specs
| Measurement System | SAE |
| Material | Alloy Steel |
| Outside Diameter | 0.105" |
| Units | Pair |
| Riding Style | Street |
| Type | Cam Drive Gear |
| Color/Finish | Silver |
| Product Name | Gauge Pin |
Product Description
Features
- Used to measure the outside diameter of cam drive gears
- Made in the USA
- There are two basic differences between '90-'99 cam gear sizes and earlier years. The overall range of gear pin measurements (from the largest gears to the smallest) was reduced in '90 from .006" to .003". The large gears are the same size for both '84-'89 and '90-'99 (green and black color codes). Gear size measurements (over pins) are listed in the '90 H-D manual using .108" pins instead of .105" pins (as for earlier years). For the same gear, measurement over .108" pins will be approximately .012" larger than for .105" pins. For '92 engines, stock cam gears are interchangeable with earlier versions but gear outer diameters have been reduced by .025".
Specs
| Measurement System | SAE |
| Material | Alloy Steel |
| Outside Diameter | 0.105" |
| Units | Pair |
| Riding Style | Street |
| Type | Cam Drive Gear |
| Color/Finish | Silver |
| Product Name | Gauge Pin |
