SKU:
0925-0175
Manufactured with the help of a computer with cam design capabilities
Made from alloy steel billets and heat-treated processes are utilized
Made in the USA
Four-gear set required for installation.
Installer must check coil bind, valve to valve clearance and valve to piston clearance.
Specs
Product Name
Cam Set
Application
Exhaust
Type
Gear Drive
Intake Lobe Centerline
102°
Application
Intake
Exhaust Lobe Centerline
106°
Intake Lift at TDC
0.197"
Exhaust Close
20°
Intake Open
22°
Exhaust Duration
252°
Exhaust Lift at TDC
0.181"
Exhaust Lift
0.550"
Exhaust Open
52°
Intake Duration
248°
Intake Lift
0.550"
Riding Style
Street
Grind
55 Series
Intake Close
46°
Units
Pair
Part Notes
Cams for maximum torque and horsepower at higher rpm ranges (2600-6000+ rpm).
Designed for engines with 9.5:1 compression ratio or higher with 88"-95".
Coil bind must be checked, but stock tappets can be used.
Regular price
$476.95
Unit price
Shipping calculated at checkout.
Product Details
Features
- Manufactured with the help of a computer with cam design capabilities
- Made from alloy steel billets and heat-treated processes are utilized
- Made in the USA
- Four-gear set required for installation.
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
Specs
| Product Name | Cam Set |
| Application | Exhaust |
| Type | Gear Drive |
| Intake Lobe Centerline | 102° |
| Application | Intake |
| Exhaust Lobe Centerline | 106° |
| Intake Lift at TDC | 0.197" |
| Exhaust Close | 20° |
| Intake Open | 22° |
| Exhaust Duration | 252° |
| Exhaust Lift at TDC | 0.181" |
| Exhaust Lift | 0.550" |
| Exhaust Open | 52° |
| Intake Duration | 248° |
| Intake Lift | 0.550" |
| Riding Style | Street |
| Grind | 55 Series |
| Intake Close | 46° |
| Units | Pair |
Part Notes
- Cams for maximum torque and horsepower at higher rpm ranges (2600-6000+ rpm).
- Designed for engines with 9.5:1 compression ratio or higher with 88"-95".
- Coil bind must be checked, but stock tappets can be used.
Product Description
Features
- Manufactured with the help of a computer with cam design capabilities
- Made from alloy steel billets and heat-treated processes are utilized
- Made in the USA
- Four-gear set required for installation.
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
Specs
| Product Name | Cam Set |
| Application | Exhaust |
| Type | Gear Drive |
| Intake Lobe Centerline | 102° |
| Application | Intake |
| Exhaust Lobe Centerline | 106° |
| Intake Lift at TDC | 0.197" |
| Exhaust Close | 20° |
| Intake Open | 22° |
| Exhaust Duration | 252° |
| Exhaust Lift at TDC | 0.181" |
| Exhaust Lift | 0.550" |
| Exhaust Open | 52° |
| Intake Duration | 248° |
| Intake Lift | 0.550" |
| Riding Style | Street |
| Grind | 55 Series |
| Intake Close | 46° |
| Units | Pair |
Part Notes
- Cams for maximum torque and horsepower at higher rpm ranges (2600-6000+ rpm).
- Designed for engines with 9.5:1 compression ratio or higher with 88"-95".
- Coil bind must be checked, but stock tappets can be used.
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0925-0175 | 216355G | In Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Customer Reviews

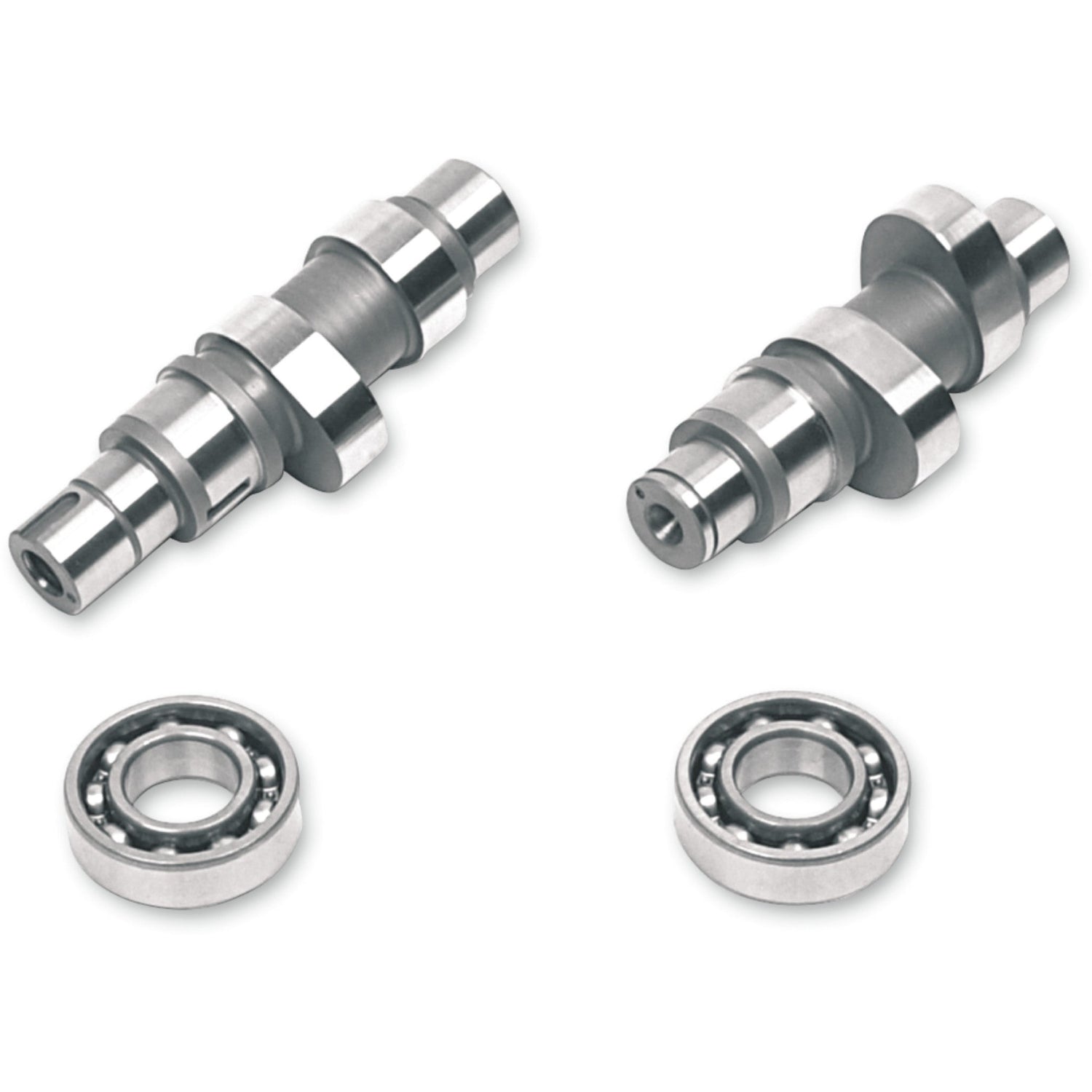

Andrews Cam Set - 216355G For Harley Motorcycles 2006-2017
