SKU:
0925-0070
Manufactured with the help of a computer with cam design capabilities
Made from alloy steel billets and heat-treated processes are utilized
Made in the USA
Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
'00-'06 model cams use a splined cam drive sprocket, for '99 a splined cam drive sprocket is required.
Specs
Exhaust Duration
240°
Exhaust Open
52°
Intake Lift at TDC
0.131"
Riding Style
Street
Units
Pair
Grind
31 Series
Type
Chain Drive
Exhaust Lobe Centerline
112°
Intake Close
30°
Intake Duration
236°
Intake Lift
0.510"
Product Name
Cam Set
Application
Exhaust
Intake Open
10°
Application
Intake
Exhaust Close
8°
Exhaust Lift at TDC
0.120"
Exhaust Lift
0.510"
Intake Lobe Centerline
110°
Part Notes
Great cam for motors with 95"+ and 10.0:1 compression ratio.
Lower TDC lift means easy installation.
Similar to 37G but different timing (2000 - 5800 rpm power range).
Can be used with stock springs and tappets.

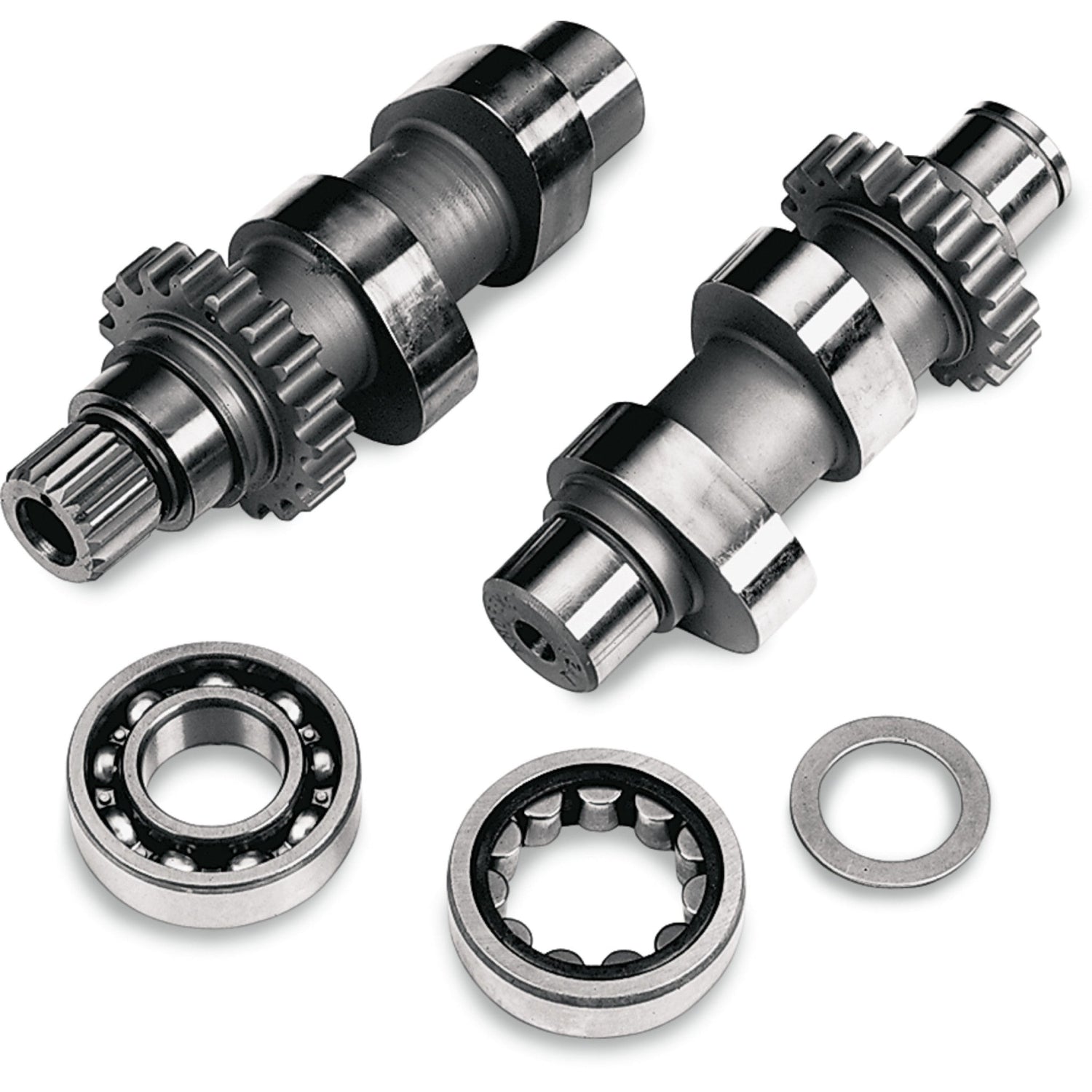

Includes front cam support plate bearing.
'99 model requires a splined cam drive sprocket.
Regular price
$414.95
Unit price
Shipping calculated at checkout.
Product Details
Features
- Manufactured with the help of a computer with cam design capabilities
- Made from alloy steel billets and heat-treated processes are utilized
- Made in the USA
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
- '00-'06 model cams use a splined cam drive sprocket, for '99 a splined cam drive sprocket is required.
Specs
| Exhaust Duration | 240° |
| Exhaust Open | 52° |
| Intake Lift at TDC | 0.131" |
| Riding Style | Street |
| Units | Pair |
| Grind | 31 Series |
| Type | Chain Drive |
| Exhaust Lobe Centerline | 112° |
| Intake Close | 30° |
| Intake Duration | 236° |
| Intake Lift | 0.510" |
| Product Name | Cam Set |
| Application | Exhaust |
| Intake Open | 10° |
| Application | Intake |
| Exhaust Close | 8° |
| Exhaust Lift at TDC | 0.120" |
| Exhaust Lift | 0.510" |
| Intake Lobe Centerline | 110° |
Part Notes
- Great cam for motors with 95"+ and 10.0:1 compression ratio.
- Lower TDC lift means easy installation.
- Similar to 37G but different timing (2000 - 5800 rpm power range).
- Can be used with stock springs and tappets.
- Includes front cam support plate bearing.
- '99 model requires a splined cam drive sprocket.
Product Description
Features
- Manufactured with the help of a computer with cam design capabilities
- Made from alloy steel billets and heat-treated processes are utilized
- Made in the USA
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
- '00-'06 model cams use a splined cam drive sprocket, for '99 a splined cam drive sprocket is required.
Specs
| Exhaust Duration | 240° |
| Exhaust Open | 52° |
| Intake Lift at TDC | 0.131" |
| Riding Style | Street |
| Units | Pair |
| Grind | 31 Series |
| Type | Chain Drive |
| Exhaust Lobe Centerline | 112° |
| Intake Close | 30° |
| Intake Duration | 236° |
| Intake Lift | 0.510" |
| Product Name | Cam Set |
| Application | Exhaust |
| Intake Open | 10° |
| Application | Intake |
| Exhaust Close | 8° |
| Exhaust Lift at TDC | 0.120" |
| Exhaust Lift | 0.510" |
| Intake Lobe Centerline | 110° |
Part Notes
- Great cam for motors with 95"+ and 10.0:1 compression ratio.
- Lower TDC lift means easy installation.
- Similar to 37G but different timing (2000 - 5800 rpm power range).
- Can be used with stock springs and tappets.
- Includes front cam support plate bearing.
- '99 model requires a splined cam drive sprocket.
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0925-0070 | 288131 | In Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
